9
MAINTENANCE
CASTERS
Some cabinets may have caster bearings that are equipped with
Zerk grease fittings so that they may be easily lubricated with a
grease gun. Lubricate bearings at least once every six months.
Lubrication will be required more often if cabinet is cleaned with a
hot water or steam cleaning system. Casters with special sealed
bearings are recommended for frequent cart wash or steam clean-
ing systems.
LATCHES & HINGES
Make sure all joints remain sealed and door latches do not stick. If
necessary, use WD-40, silicone spray, graphite or other commer-
cial lubricants for aluminum products, to keep door latches & hing-
es from sticking. Do not use oil.
FOR CABINETS WITH PERIMETER BUMPERS
Vinyl which has been dislodged from the channel due to severe
bumping or scraping can be pried back into place with a common
screwdriver. CAUTION:
Do not move cabinet
unless door is secure-
ly closed. Serious damage to
hinges and door may result if
bumped into tables, walls, or
other equipment when the
doors are open.
9

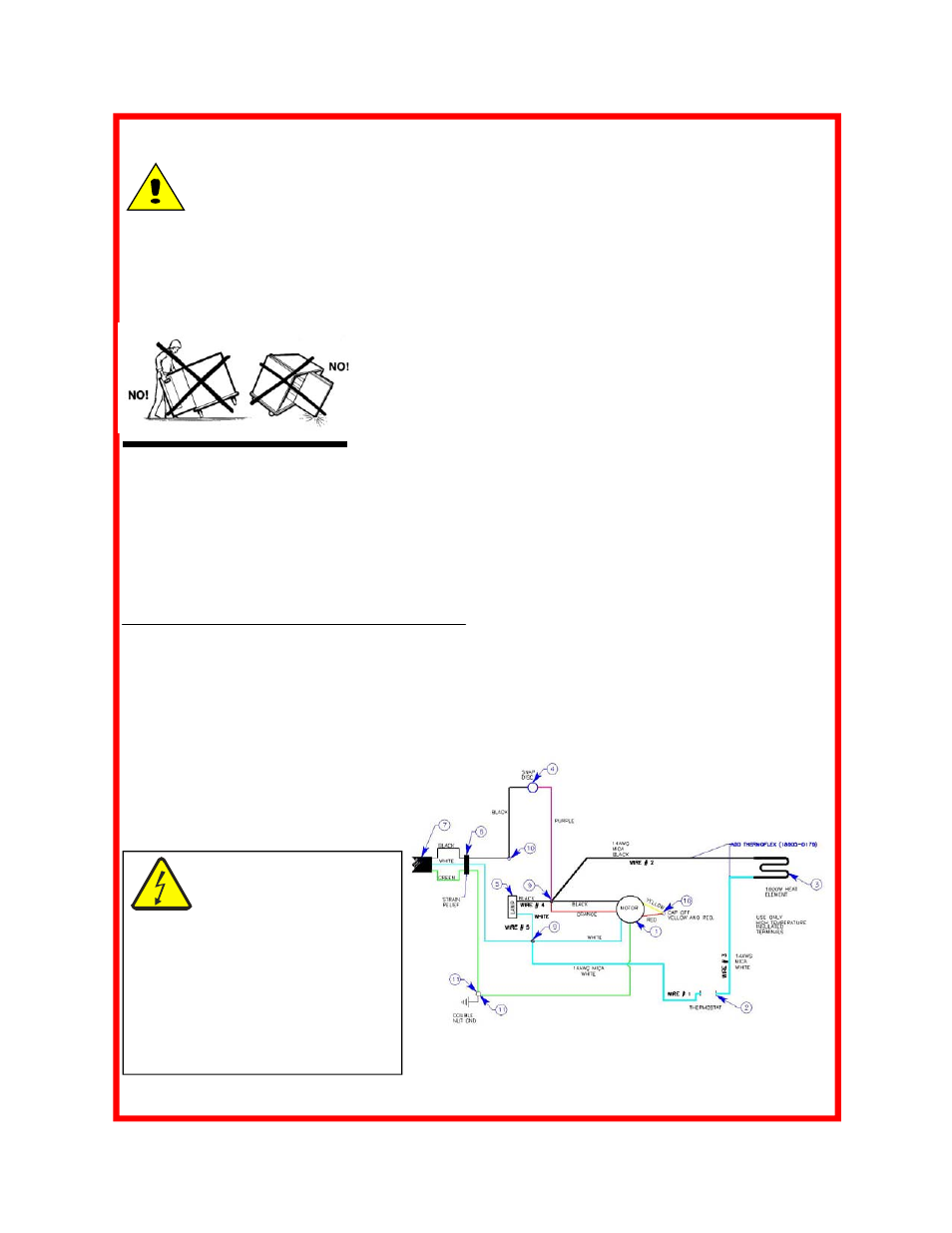

REPLACEMENT PARTS & WIRING DIAGRAMS
CAUTION: Use only (OEM)
original equipment manufactur-
er replacement parts. Using
unauthorized parts may cause
serious injury or damage to the cabinet.
Replacement parts should be installed by a
qualified service technician.
Contact Carter-Hoffmann with your model
and serial number for replacement parts.
Call: 800-323-9793 or email:
[email protected]
FH90 HEATER COMPONENTS 120V, 1650W, 13.7A
Part Number
Description
FH90-0015B FH-90 (heater unit 120 volts)
16502-6157 Motor cover
16502-5631 Aluminum handle
18617-0850 Handle spacer
18614-0360 Fan motor
18614-0321 Fan blade
18612-0261 Heat element 120 volts, 1600 watts
18600-0016 Thermostat
18608-0013 Thermostat
knob
18601-1185 Indicating light
18605-0016 120 volt power cord
18617-0130 5/8” strain relief grommet
18617-0100 5/8” snap bushing
