Quick Start Guide
2 Basic Operation

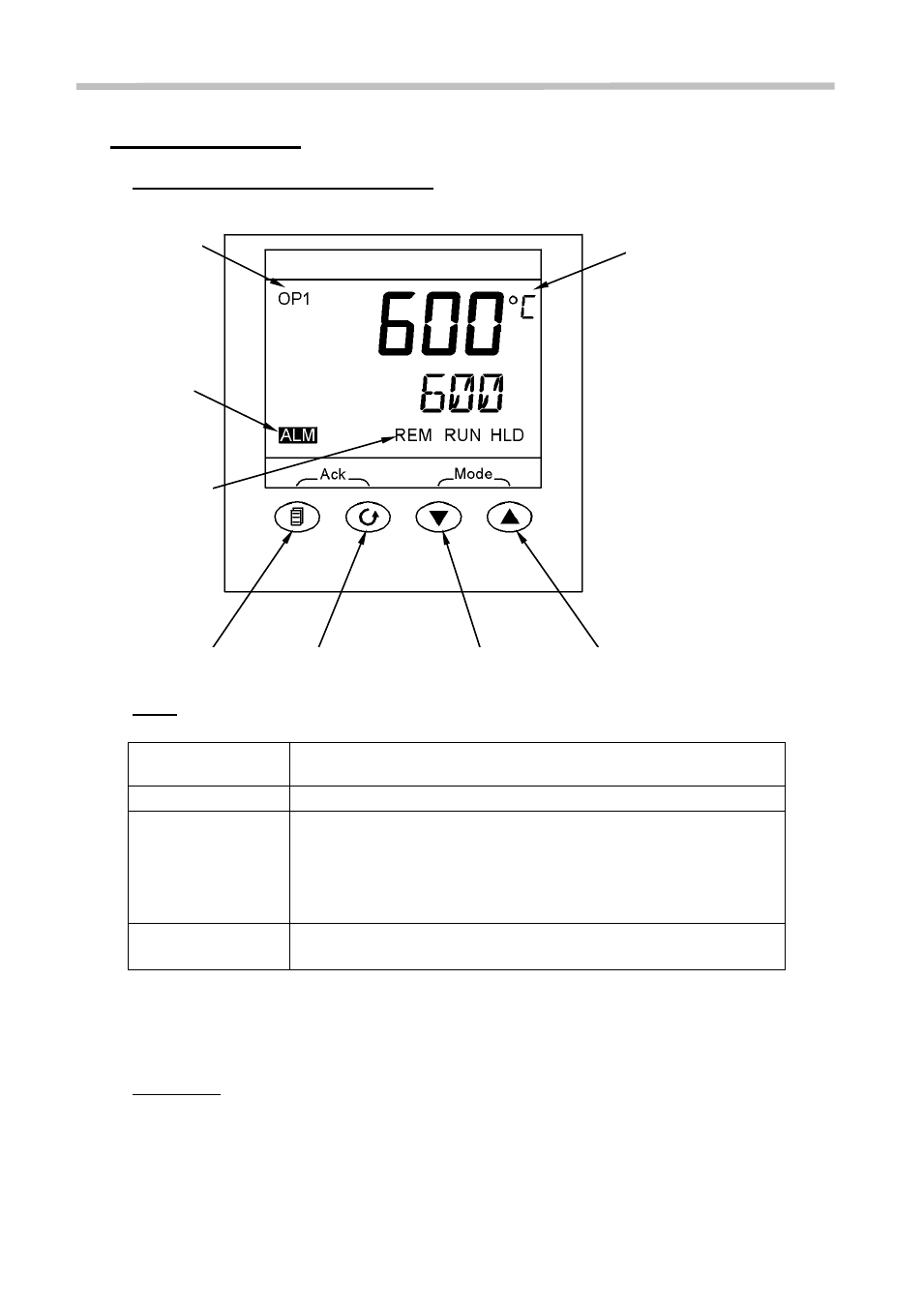

2.1 Controller Layout (Home Display)
2.2 Keys
Page Key
 
The Page key is used to access level 2 when held down
for 3 seconds.
Scroll Key
 
The Scroll key is used to scroll through the parameters.
ACK
Page + Scroll
   
When pressed simultaneously the ACK function is used
to:

Return to the Home Menu.

Acknowledge an alarm if activated.

Reset a program after the program has ended
Arrow Keys
   
The arrow keys are used individually to adjust the
selected parameters and in combination to run a program
Note:
If a parameter is selected and no further action is taken, the display will time out and
revert back to the home display in its working level after approximately 1 minute
2.3 Operation
No operator action is normally required.
When switched on, the indicator lights up, goes through a short test routine, and then
displays the measured temperature
The output lights are not used, and the lower (setpoint) display is disabled.
Power Output
Indicator
Scroll Key Down Key Up Key
Alarm
Indicator
Measured
Temperature
Remote
Indicator
(When configured)
Scroll Key Page Key
