Page 17

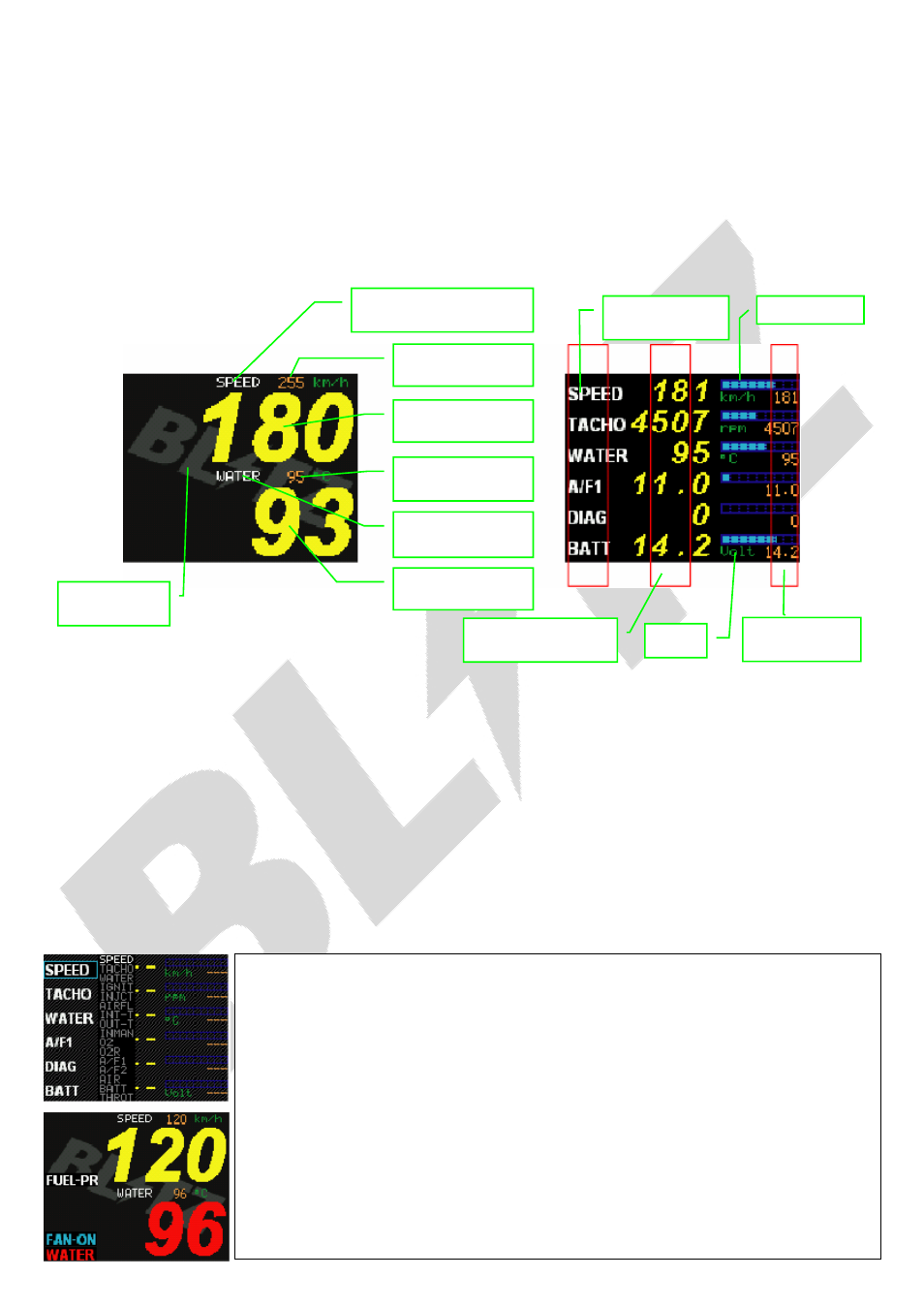

MODE Explanation 3 (DIGITAL)

①Digital Meter.

Displays in digital and bar graph the selected data sources. The types of display are Dual and Six Fold and the
boost settings can be easily changed at the Dual display.

Speed / RPM / Water Temp / Ignition Timing / Injection Time / Airflow Voltage / Intake Temp / Outside Temp / Intake
Manifold Press / Boost / O2 Voltage / O2R Voltage / A/F 1 / A/F 2 / Intake Air Mass / Battery Voltage / Throttle
Position / AT Temp / Gear Position / 4 WD Ratio / Fuel Press / Diagnosis Code / Momentarily Fuel Consumption /
External Voltage Input / External Temp Input / None.

※ Depending on the vehicle, the monitored items vary or cannot be monitored.

②Operating Method

Press the LEFT switch to shift from night and day illumination and vice versa.
Press the LEFT switch for over 3 seconds and it will only clear the peak value of the displayed data.
Press the UP switch to shift from Dual Digital Meter → Six Fold Digital Meter → Fuel Injection Trace → A/F
Graph→ Meter Display → Dual Digital Meter. Press the UP switch for over 3 seconds and it will scroll back
wards.
Press the ENCODER and the display item to be set will popup.
Turn the ENCODER to select the desired item to be displayed and press the ENCODER again to confirm the
change. Press the RIGHT switch to cancel the change and to go back to the previous screen.
It will return to the “Digital Display Screen” if any operation in not taken for over 10 seconds.

Back Ground

Second displaying
data source

Second displaying
data Present Value

Source of

displayed Items

Main displaying data
Peak Value

Main displaying data source

Bar Graph

Main displaying data
Present Value

Second displaying
data Peak Value

Displayed Item

Peak Value

Unit

Present values of

displaying

⑤Peak Value / Warning / Active Control Operation Display

The value of the digital display is kept for 0.6 seconds for easier recognition. The
value of the bar graph is displayed in real time. The peak value will be updated
every time the value exceeds the previous peak value. Moreover, the color of the
digital value will change to the set color when the monitored item exceeds the set
warning value.
The color of the will be displayed in warning color for 3 seconds if the peak value is
updated by a new value.
The popup for the “Warning” and “Active Control” is displayed only at the “Digital
Meter Screen”.
