Page 15

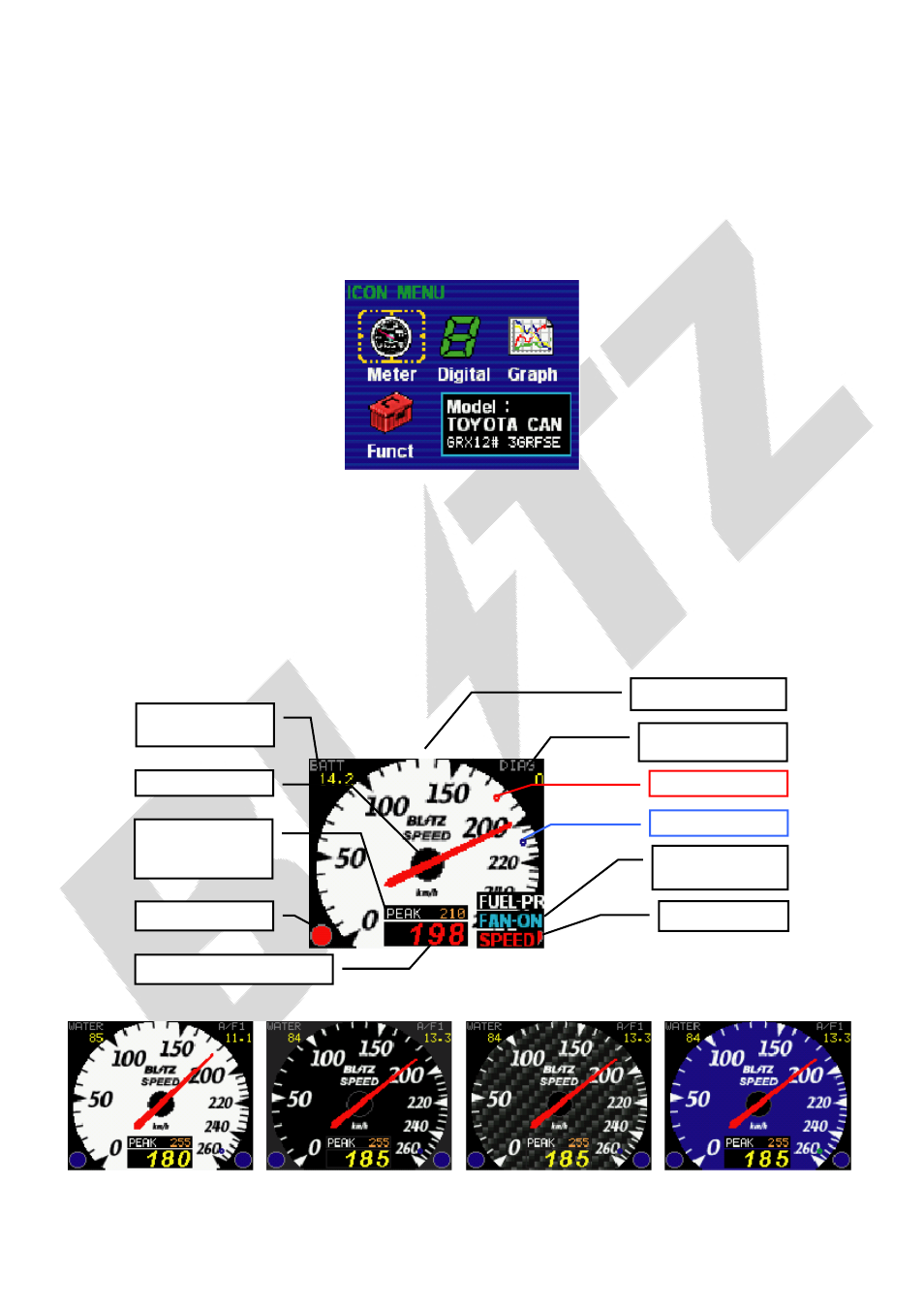

MODE Explanation 1 (ICON MENU)

①Icon Menu.
The Meter / Digital / Graph / Funct icons can be selected by rotating the encoder.
Press the encoder to confirm.
It will switch the LCD display from “Day” to “Night” mode and vice versa by pressing “LEFT”.
It will jump directly to the “Needle Meter” by pressing “RIGHT”.
It will jump directly to the “Dual Meter” by pressing “UP”.
It will jump directly to the “Six Fold Meter” by pressing “DOWN”.

MODE Explanation 2 (METER)

①Needle meter.

The meter’s face can be chosen from white, black, carbon and blue in analog design. Speed / RPM / Water Temp /

Ignition Timing / Injection Time / Airflow Voltage / Intake Temp / Outside Temp / Intake Manifold Press / Boost / O2

Voltage / O2R Voltage / A/F 1 / A/F 2 / Intake Air Mass / Battery Voltage / Throttle Position / AT Temp / Gear

Position / 4 WD Ratio / Fuel Press / Momentarily Fuel Consumption / External Voltage Input / External Temp Input.

※ Depending on the vehicle, the monitored items vary or cannot be monitored.

Warning Pop-Up

Peak Mark (Blue)

Active Control

Pop-Up

Warning Mark

(Red)

Fourth displaying data

Main displaying data

Warning

Description of

second displaying

data

Needle Center

Third displaying

data

Second displaying data

Black

Carbon

Blue

White
