8. BURNER OPERATION:
A. MAIN BURNER:
B. BOOSTER BURNER:
Do not turn on the booster burner until the oven is well pre-heated and the pre-set temperature has
been reached. The oven has to be hot in order to draw fresh air in to the booster burner.
After the pilot burner is ignited, when heat is desired, turn gas cock dial to the ON position and set the
thermostat dial to the desired temperature. The oven burner flame should always have a blue appearance.
That indicates a good mixture of gas and air. When using LP gas, the flame will have a blue-yellow
appearance.
After the pilot burner is ignited, when the booster burner flame is desired, turn gas cock dial to the ON
position. The booster burner is set to have a yellow flickering flame, but should not soot.
Should the Burners fail to light, check to see if there is a problem with the gas supply. If there are other
appliances on the same line, shut them off temporarily and see if the burners come back on, or they
fluctuate as other gas appliances are turned on and off. That would indicate an overload of the gas supply
lines or a faulty gas pressure regulator. Contact an authorized Service Agency or your local Gas Supply
Company.

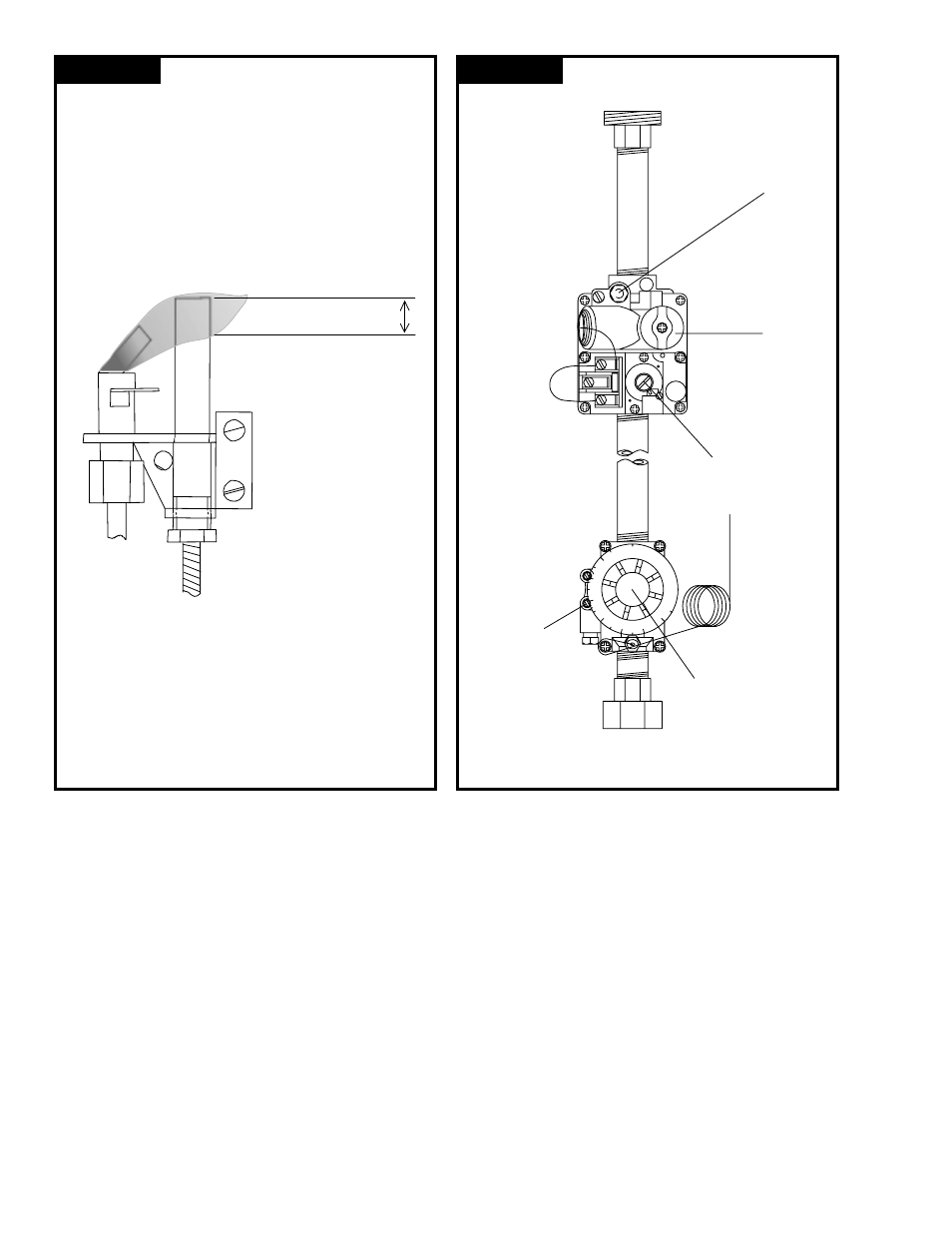

Correct Flame
3/8” - 1/2”
TH
TP
TH
TP
VENT
ON
OFF
FF
PILOT
PI L
O
T
650
600
550
500
450
400
350
300
IN
Pilot
Feed
Gas
Cock
Dial
Pressure
Regulator
Pilot
Adjust
Screw
Thermostat
