Steps to Installing
1. Use both hands to support the speaker and angle it slightly, so it is diagonal to the hole.
This allows clearance for the wall stops.
2. Insert the bottom of the enclosure through the hole and down part of the way – or up,
depending on your clearance issues (Figure 27).

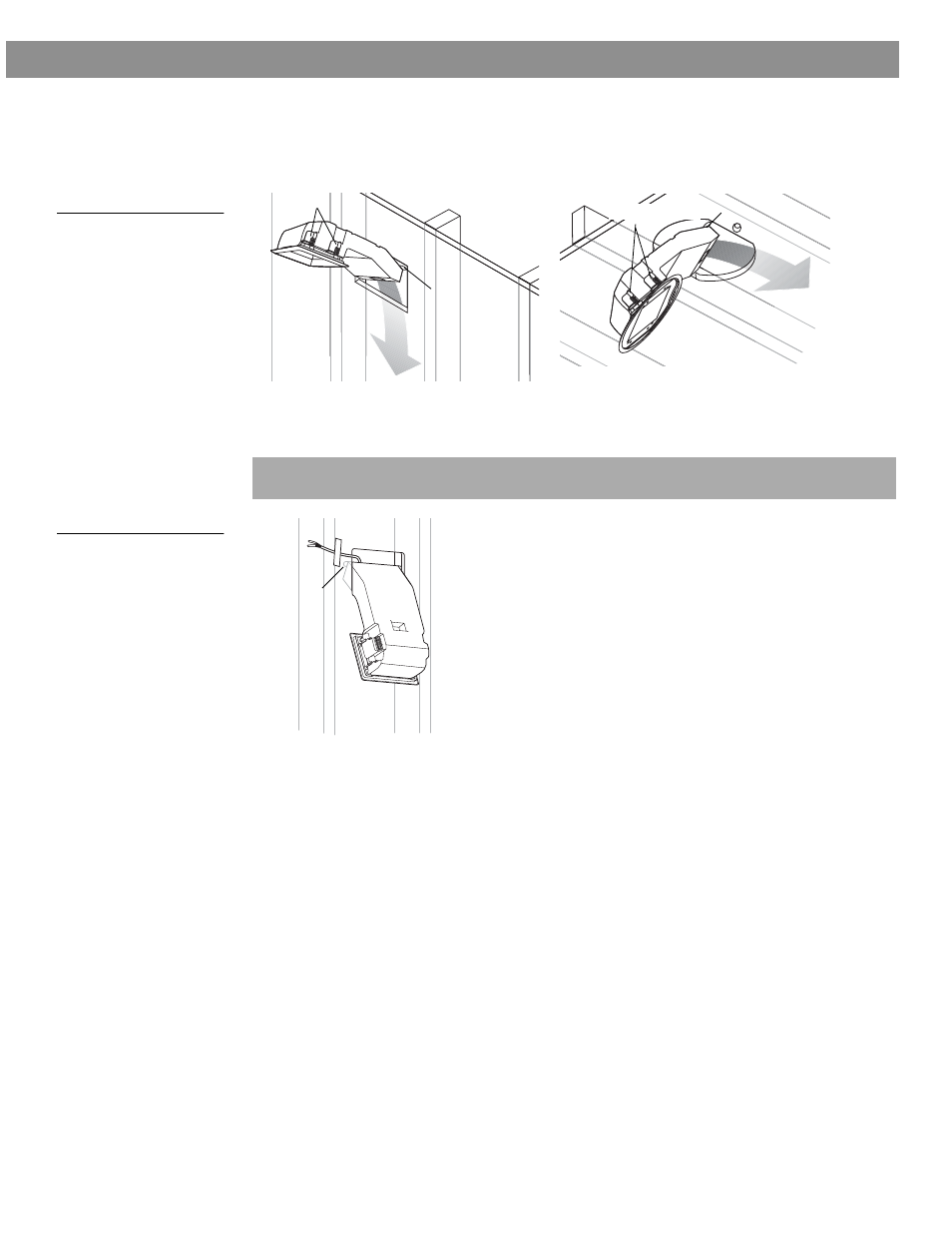

Figure 27
Partially inserting the
rectangular-faced or round-
faced speaker
3. Leave the speaker in this partially inserted position, resting on the wall stops that prevent
it from falling out (Figure 28). This allows ready access to the connection terminals on the
upper left-hand side of the speaker.
Figure 28
Speaker held in place by
wall stops
For ceiling installations, you may feel more secure holding the speaker while making the
connections.
Dogleg clamps
Wall stop
Wall stop
Dogleg clamps
Wall stop
