LF Miniature Liquid Level Sensors
APG
Automation Products Group, Inc.
®
■

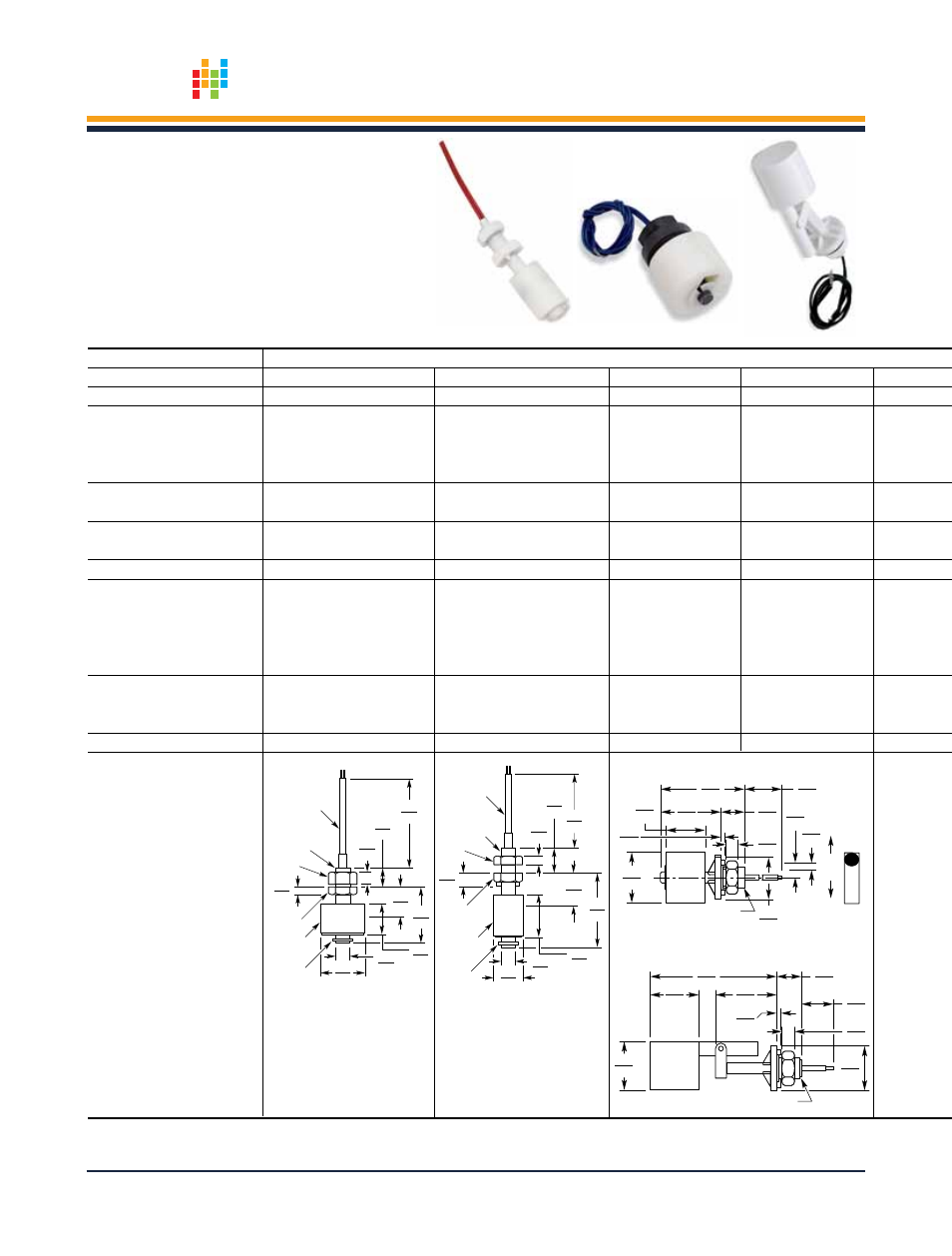

Plastic Float Specifications (continued)
Series LFP LFP
Model LFP-VE-P1 LFP-VE-P2 LFP-H-3 (4) LFP-H-10 LFP-HE-P1 LFP-HE-N1 LFP-HE-P2 LFP-HE-N2
Part Number 22917-0051 22917-0017 22085 22555 22917-0012 22917-0054 22917-0053 22917-0013
Material
Stem Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene 6-nylon Polypropylene 6-nylon
Float Polypropylene Polypropylene Polypropylene (1) Polypropylene Polypropylene 6-nylon Polypropylene 6-nylon
Retainer Polypropylene Polypropylene Polypropylene Polypropylene n/a n/a n/a
Operating Temperature 194°F 194°F 14 to 194°F 14 to 194°F 175°F 230°F 175°F 230°F
(90°C) (90°C) (–10 to 90°C) (–10 to 90°C) (80°C) (110°C) (80°C) (110°C)
Pressure Rating 7 psi 7 psi 7 psi 7 psi 7 psi 7 psi 7 psi 7 psi
(0.5 bar) (0.5 bar) (0.5 bar) (0.5 bar) (0.5 bar) (0.5 bar) (0.5 bar) (0.5 bar)
Mounting Vertical Vertical Horizontal Horizontal Horizontal Horizontal Horizontal Horizontal
Switch Rating (by model code)
Maximum Capacity 50 VA 50 VA 50 VA 50 VA 50 VA 50 VA 50 VA 50 VA
Nominal Current 0.5 A 0.5 A 0.17 A 0.17 A 0.5 A 0.5 A 0.5 A 0.5 A
Maximum Voltage 300 VAC/DC 300 VAC/DC 300 VAC 300 VAC 300 VAC/DC 300 VAC/DC 300 VAC/DC 300 VAC/DC
Life Expectancy (# of actuations) 10 7 10 7 10 7
Lead Wires #22 AWG #22 AWG #22 AWG #22 AWG #22 AWG #22 AWG #22 AWG #22 AWG
(300 mm) (300 mm) 11.8 or 39.4 in. (2) 11.8 or 39.4 in. (2) (300 mm) (300 mm) (300 mm) (300 mm)
(300 or 1000 mm) (2) (300 or 1000 mm) (2)
Minimum SG 0.9 0.85 0.8 0.8 0.8 0.8 0.8 0.8
Dimensions — in./mm
(2) Alternative cables in PVC are available in lengths up to 78.7 in. (2000 mm). VCTF Ø 0.20, (5.2, 0.3 mm 2 )
(4) The LFPH-3 is nonreversible. Use NO (Up ON) only.
Specifications are subject to change without notice.
0.16
4
0.24
6
0.39
10
0.63
16
ON
1.18
30
Ш0.94
24
Ш0.28
7
0.65
16.5
11.8
300
Lead Wire
Nut
Float
Stopper
Stem
M8 x 1.5
0.31
8
Lead Wire
PF 1/8
Float
Stopper
Stem
Ш0.71
18
Ш0.28
7
11.8
300
Nut
ON
0.81
20.5
0.20
5
0.59
15
1.73
44
0.98
25
1.22
31
1.10
28
11.81
300
0.63
16
3.19
81
1.22
31
1.52
38.7
0.09
2.3 0.31
8
G 1/4
LFPH-3
LFPH-10
Ш1.34
34
Ш1.1
28
2.15
54.7
11.81
300
1.52
38.7
0.63
16
0.31
8
0.96
24.5
0.43
2.3
0.28
7 0.12
3
OFF
ON
G 1/4
End View
