LF Miniature Liquid Level Sensors
APG
Automation Products Group, Inc.
®
Series LFS LFS
Model LFS-H-10 LFS-H-25S/90 LFS-HE-S1 LFS-HE-S2
Part Number 22427 22556 22917-0055 22917-0014
Material
Stem 316L SS 304 SS 304 SS 304 SS
Float 316L SS 316L SS 304 SS 304 SS
Retainer 316L SS 304 SS n/a n/a
Operating Temperature 14 to 248°F 14 to 212°F 250°F 250°F
(-10 to 120°C) (-10 to 100°C) (120°C) (120°C)
Pressure Rating 145 psi 290 psi 145 psi 145 psi
(10 bar) (20 bar) (10 bar) (10 bar)
Mounting Horizontal Horizontal Horizontal Horizontal
Switch Rating (by model code)
Maximum Capacity 50 VA 50 VA 50 VA 50 VA
Nominal Current 0.17 A 0.17 A 0.5 A 0.5 A
Maximum Voltage 300 VAC 300 VAC 300 VAC/DC 300 VAC/DC
Life Expectancy (# of actuations) 10 7 10 7
Lead Wires #22 AWG #22 AWG #22 AWG #22 AWG
(300 mm) (300 mm) (500 mm) (500 mm)
Minimum SG 0.6 0.8 0.6 0.6

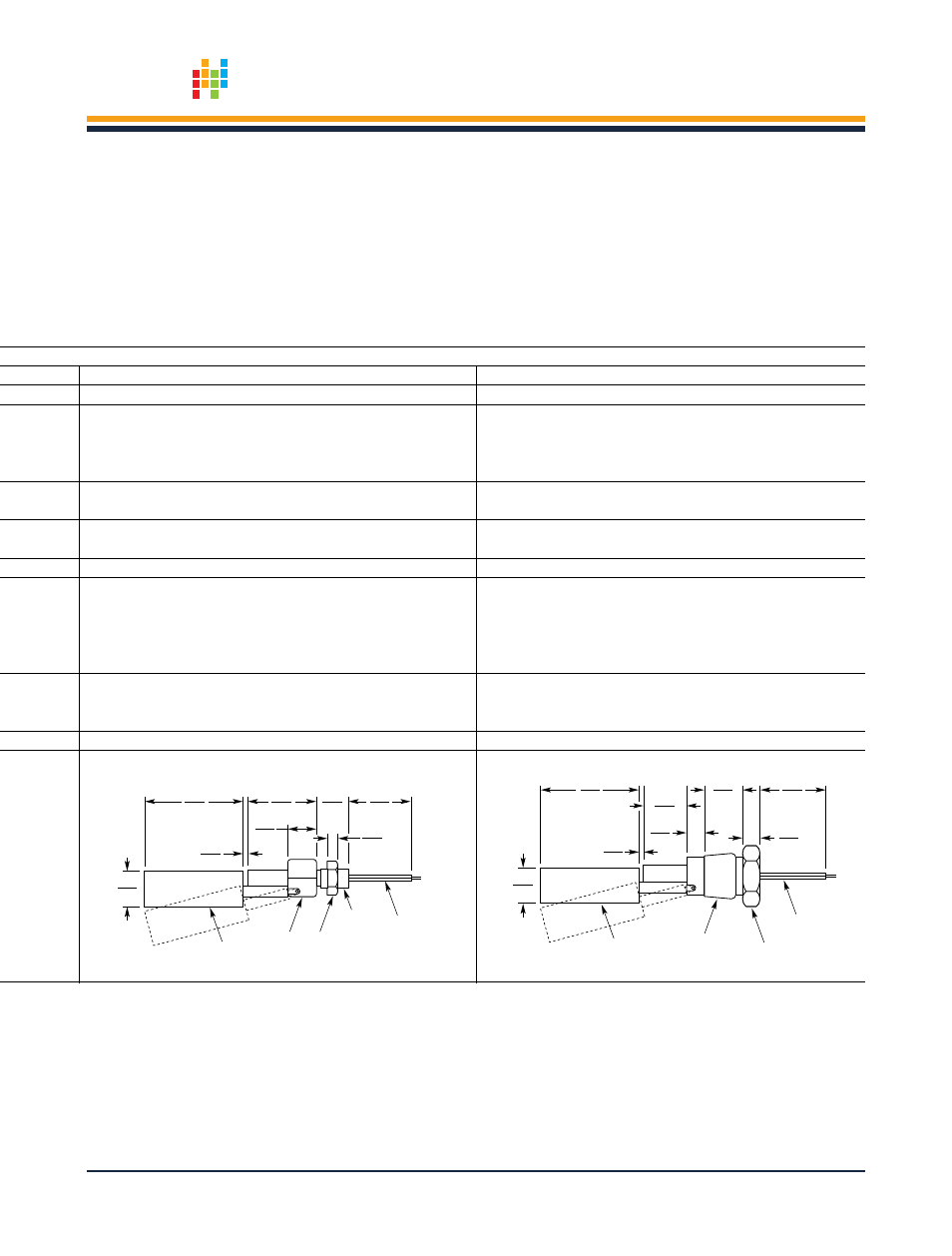

Dimensions — in./mm
17
Ø0.67
47
1.85
33
1.3
500
19.68
15
0.59
5
0.197
13.5
0.53
2
0.078
Float
Stem Nut
Lead Wire PF 1/8
17
Ø0.67
47
1.85
2
0.078
8.5
0.00
8
0.31
500
19.68
17
0.67
19.5
0.77
Lead Wire
NPT 1/2
Stem
Float
Specifications are subject to change without notice.
