Options
PT-500 _____ - _____- _____ - _____ - _____ - _____ - _____ - _____
A B C D E F G H
A. Cable Type
□ -▲ Urethane - Blue (with vent tube)
□ A PVC - Black (no vent tube - sealed unit)
□ B Hytrel - Black (with vent tube)
□ C PVC - Black (with vent tube)
B. Pressure Range
□ Specify range in desired unit of measure
__________ Max Water Depth
462.2 ft. (140.9 m), 300 psig
C. Standard Units of Measure
□ PSI □ FTH2O □ INWC
□ INH2O □ MMH2O □ FWC
D. Output
□ L1▲ 4-20 mA, 2-wire
□ L3 0-5V, 3-wire (Approvals Pending)
□ L9 mV/V, 4-wire (Approvals Pending)
Modbus
□ L5 RS-485 (Modbus/RTU), 4-wire
Pressure reading only
(Approvals Pending)
□ L31 RS-485 (Modbus/RTU), 4-wire
Level calculations, tank volume
(Approvals Pending)
Automation Products Group, Inc. www.apgsensors.com
tel. 888.525.7300 [email protected]
3
PT-500 Accessories
Please order separately, by part number.
Description Part Number
316L SS hex coupler, 1/2” NPTF to 1/2” NPTF 511414
Desiccant drying cartridge for breathing tube 122774-0028
Breathable Hydrophobic Vent Cap 511328
Vented Wiring Tee (used for daisy chain wiring) 125742-0003
Cage Assembly 548001-8888
E. Overmold
□ E0▲ No overmold for 1/2” NPTM fitting for conduit
□ E37 Pigtail with overmolded cable
F. Process Connection
□ P1▲ 1/2” NPTM with removable plastic nose cone
□ P5 1/4” NPTF
□
P37 Cage (anti-snag 1 piece fitting)
□ P38 1-1/2” tri-clover with 3/4” diaphragm
□
P39 Cage (includes P38 fitting)
G. Cable Length
□
(specify length of cable needed)
______
H. Accuracy
□ N0▲ ±0.25%
□
N1 ±0.25% with NIST certification
□ N2 ±0.1% with NIST certification
Note:
▲
Indicates this option is standard.

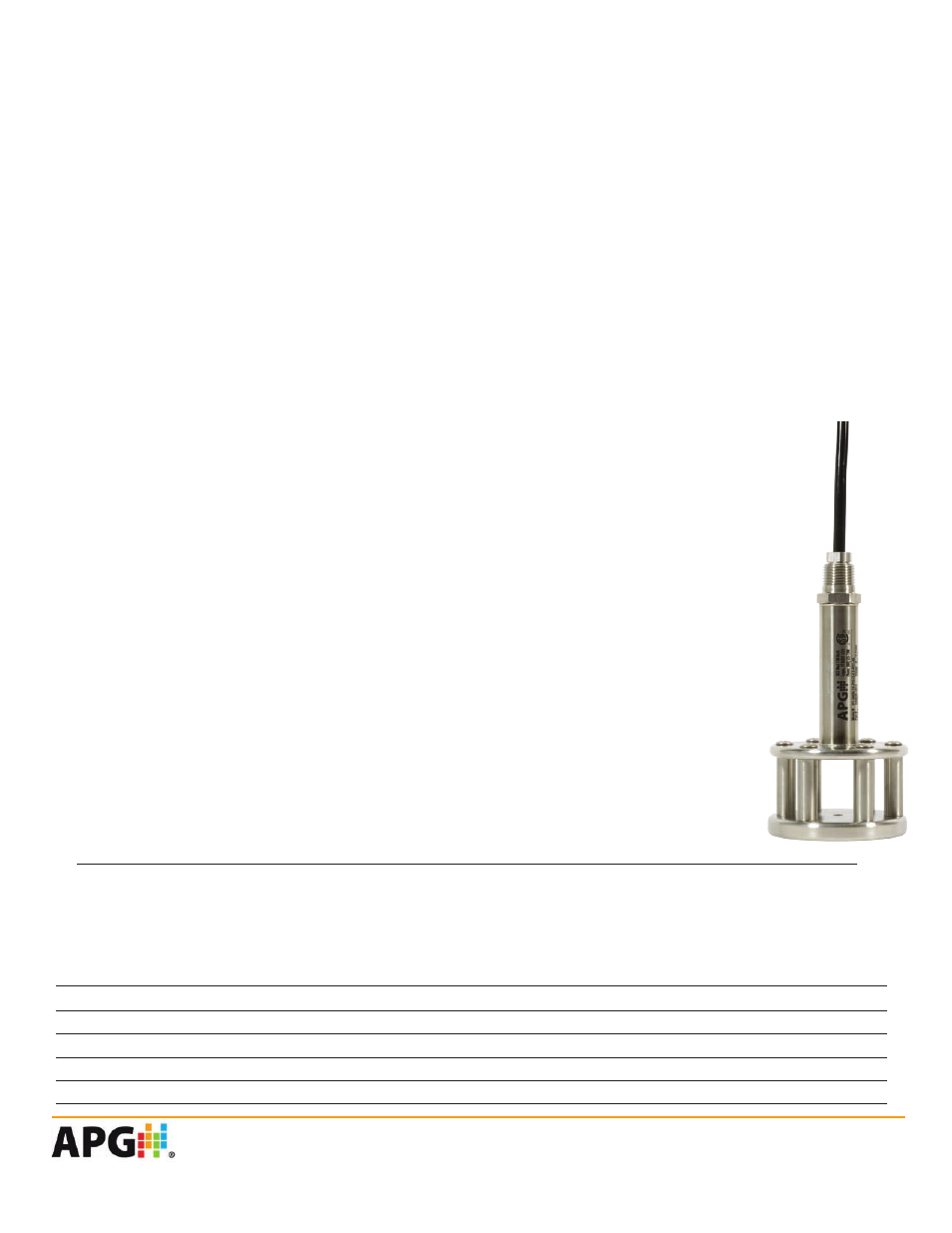

*Shown with
anti-snag cage.
