PT-500 Specifications
Performance
• Accuracy (linearity, hysteresis, & repeatability):
up to 0.10% of span (B.F.S.L.)
• 1 Year Stability: ≤ 0.75% of span
• Temp Compensation Range:
32 º - 122ºF (0º - 50ºC)
• Temp Effects on Zero & Span:
≤ 0.025% FS/ ºF @ 70º
• Frequency Response:
Less than 5mS
Connectivity
• Output:
4-20 mA 0-5V mV/V
Modbus/RTU (RS-485)- with temp. output
Environmental
• Maximum Depth:
Submersible up to 462.2 ft. (300 psig)
Certification
• CSA Intrinsically Safe: (4-20 mA only)
Class 1, Division 1; Groups C & D
Ex ia IIB T4
Class 1, Zone 0, AEx ia IIB T4
Ambient: -40 - 85ºC
• U.S. Patent No. 7,787,330
Electrical
• Supply Voltage: 10-28 VDC
• Electrical Connection:
- Vented watertight cable w/free ends
- Non-vented cable
Up to 200 lbs tensile strength
• Electrical Protection:
Lightning and Surge protection is built in.
Protected against reverse polarity, surge
per IEC 61000-4-5
Physical
• Housing: 316L SS
• Cable:
Urethane PVC Hytrel
• Protective Cone: Delrin
• Overmolded Cable
• Removable or Permanent Anti-snag Cage
Automation Products Group, Inc. www.apgsensors.com
tel. 888.525.7300 [email protected]
2

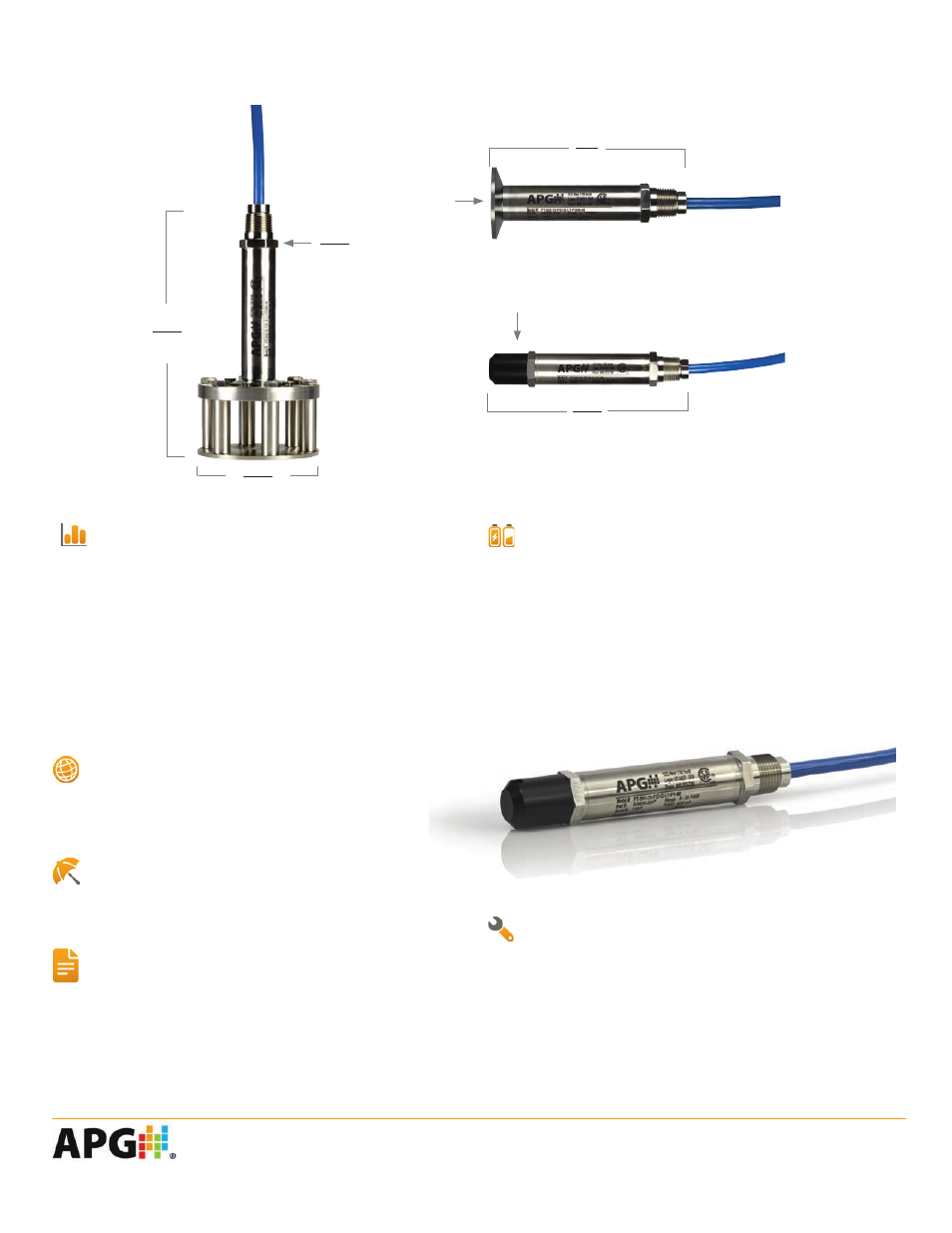

5.63”
143 mm
1/2” NPTM
1.0”
25.4 mm
7.0”
177.8 mm
3.5”
88.9 mm
3/4”
Diaphragm
*Shown with protective cone in place.
Typical Clean Water or Liquid.
*Shown with removable
cage in place.
Typical Sewage
*Shown with 1-1/2” tri-clover.
Typical Sanitary.
5.33”
136 mm
