Software Version (Version)
Displays the current software version running in the sensor.
Totalization (Totalize)
The sensor will have 2 flow totalizers. Totalization will update to
software in increments of one minute.
Non resetable totalizer
Resettable totalizer
Reset - Option to reset one totalizer
Programming Example:
Examples for each set of application (i.e., distance, level, volume, flow,
linearization table, and submersible) can be found by clicking the Instructions
button in the computer software. The following Volume application is taken
from these examples.

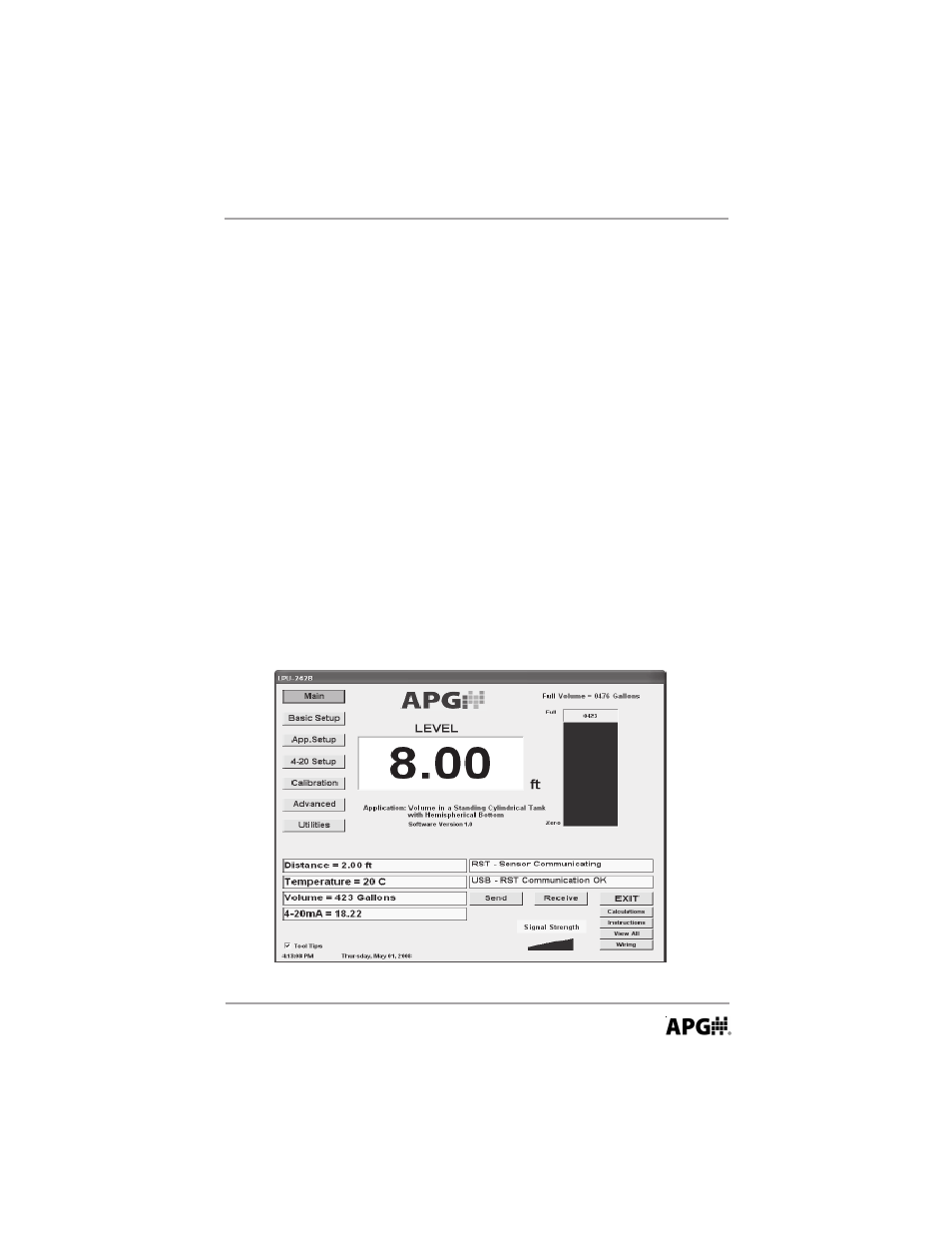

The LPU-2428 is mounted at the top of a 10 ft standing cylindrical tank with
diameter of 3 ft. The sensor needs to be setup to monitor volume in gallons
from 1 to 9 ft (remember sensor has a 1 foot blanking distance).
