Anchor 5-STAR SOLID SAFETY POOL COVER - Manual (Page 8)

STEP WEDGE
ZIPPER FOR
STUFFING
WITH
DUNNAGE
FLAPS FOR
CLIPPING TO
COVER
8

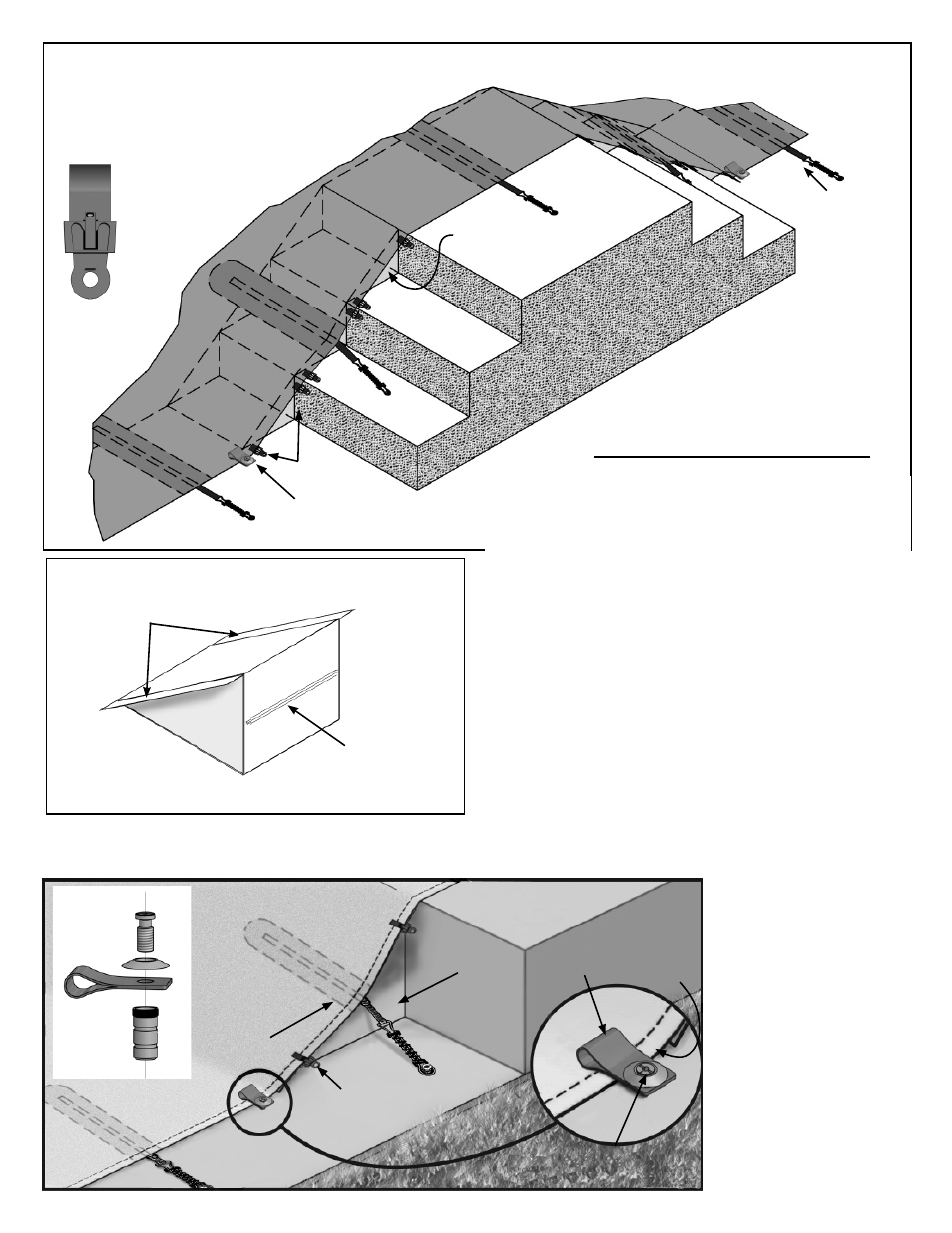

COMPLETE STEP COVERING,
WITH WEDGES IN PLACE
AND SPRINGS INSTALLED TO
SECURE THE COVER.
WEDGES
SPRINGS
ATTACHED
TO BRASS
ANCHORS.
CLIPS
TYE CLIP
INSTALLING STEP WEDGES
1. Before tightening the pool cover anchors near the steps,
tuck step wedges under the overlap edge of the cover,
as needed.
2. Pull the outer edge of the cover to the outside flap of the
wedges and clip the flap to edge of the cover using the
step wedge clips provided.
3. Install the springs and anchors to tighten the cover.
4. Be sure that the last tie-downs near the top and bottom
steps are snugged up close to the wedge to secure it
firmly in place.
5. Step Wedges come in standard sizes of 14” and 28”
(measured on the horizontal dimension along the step).
Custom sized wedges can be made upon request.
• Determine best
placement for Tye Clip
Assembly.
• Install Brass Anchor
butted up next to edge of
pool cover.
• Assemble the Tye Clip
as shown in drawing to
the left.
• Catch pool cover
beneath the black or
white Poly Strip. (See
drawing to the left)
TYE CLIP INSTALLATION
RUBBER TIE
ATTACHED
TO BRASS
ANCHOR
STEP
WEDGE CLIP
BRASS POOL
COVER ANCHOR
TYE CLIP
POOL
COVER
STEP
WEDGE
CLIP FOR
STEP
WEDGES
