Input connections, Inserts, Output connections – Allen&Heath XONE 464 User Manual

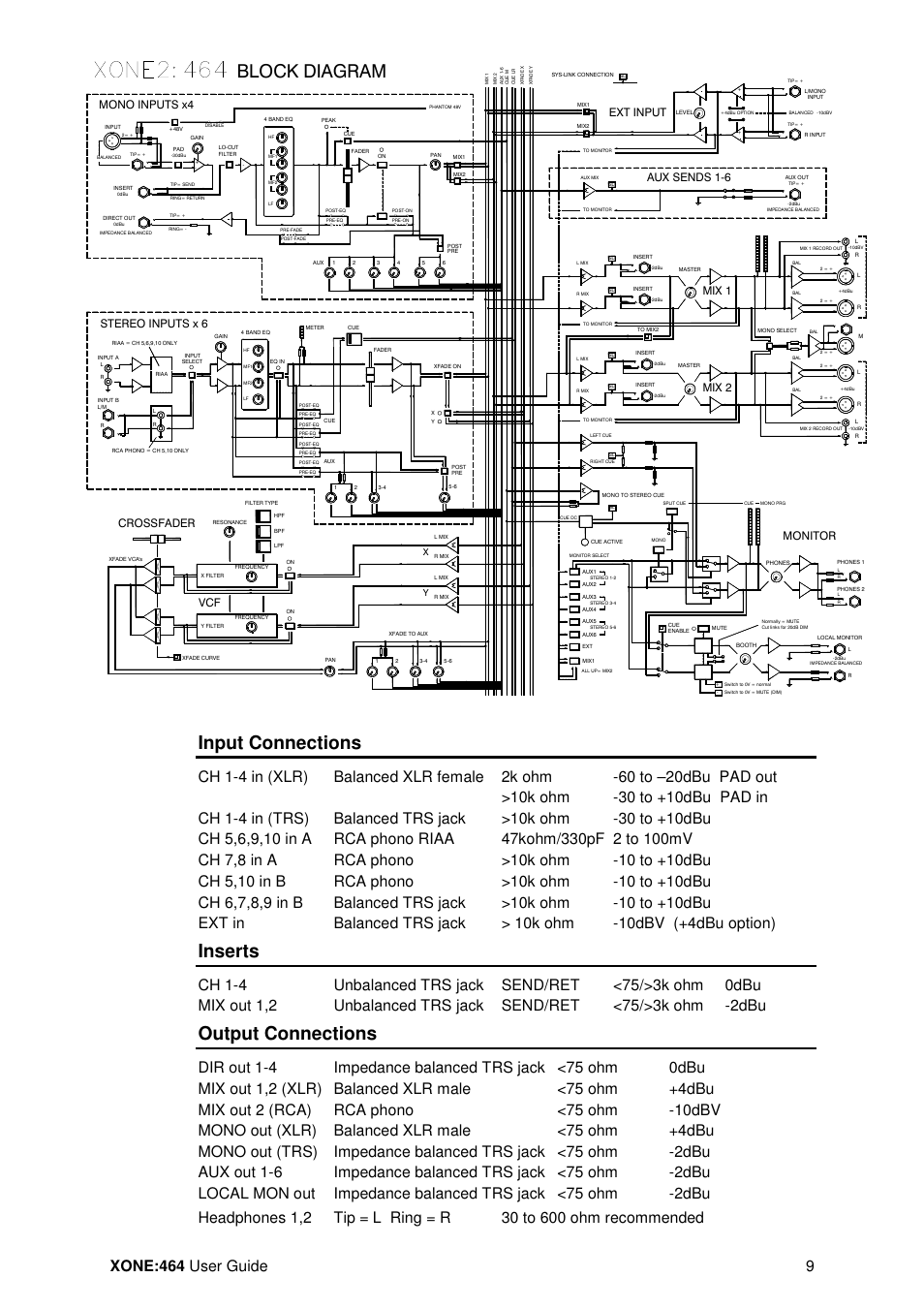

Page 9: Block diagram, Xone:464 user guide 9
