Allen&Heath XONE 92 - Manual (Page 35)

XONE:92 User Guide 35
Connector Types
XLR male and female connectors : Pin 2 = hot (+) Pin 3 = cold (-) Pin 1 = GND
TRS input and output connectors : Tip = hot (+) Ring = cold (-) Sleeve = GND
RCA PHONO pin connectors
DIN 5 pin male MIDI connectors Standard MIDI cable
Input Connections
Type Impedance Sensitivity
CH1,2 IN (Mic) Balanced XLR female <2k ohm -47 to –10dBu
(Stereo Return) Unbalanced TRS jack 6k ohm -15 to +20dBu
CH1,2,3,4 (Phono) RCA phono RIAA 47kohm/330pF 3 to 100mV
(Stereo Line) RCA phono >20k ohm -10 to +20dBu
Output Connections
Type Impedance Nominal Level
MIX OUT 1 L,R (XLR) Servo Balanced XLR male 47 ohm +4dBu
MIX OUT 2 L,R (jack) Impedance balanced TRS jack 47 ohm -2dBu
RECORD OUT RCA phono 600 ohm -10dBV
AUX OUT 1 & 2 L,R Impedance balanced TRS jack 47 ohm -2dBu
BOOTH OUT Impedance balanced TRS jack 47 ohm -2dBu
HEADPHONES ¼” and 3.5mm, Tip = L Ring = R 30 to 600 ohm recommended
STEREO INPUTS
R
1,2,3,4
4 BAND EQ
MID2
MID1
RIAA
TAP
X2
ON
RESONANCE
VCF to
XFADER
HPF
BPF
LPF
FREQ
ON
MAX RES
LIMIT
DISABLE
FILTER
FILTER 1
LFO DEPTH
TAP
X2
ON
RESONANCE
VCF to
XFADER
HPF
BPF
LPF
FREQ
ON
MAX RES
LIMIT
DISABLE
FILTER
FILTER 2
VCF
LINK 2-1
Y
XFADE CURVE
PHONO/LINE
LEVEL
LO
HI
RIAA
DISABLE
METER
VCA
FILTER SELECT
CU
E M
IX
LFO DEPTH
CROSSFADER
X
DISABLE
+10dB GAIN

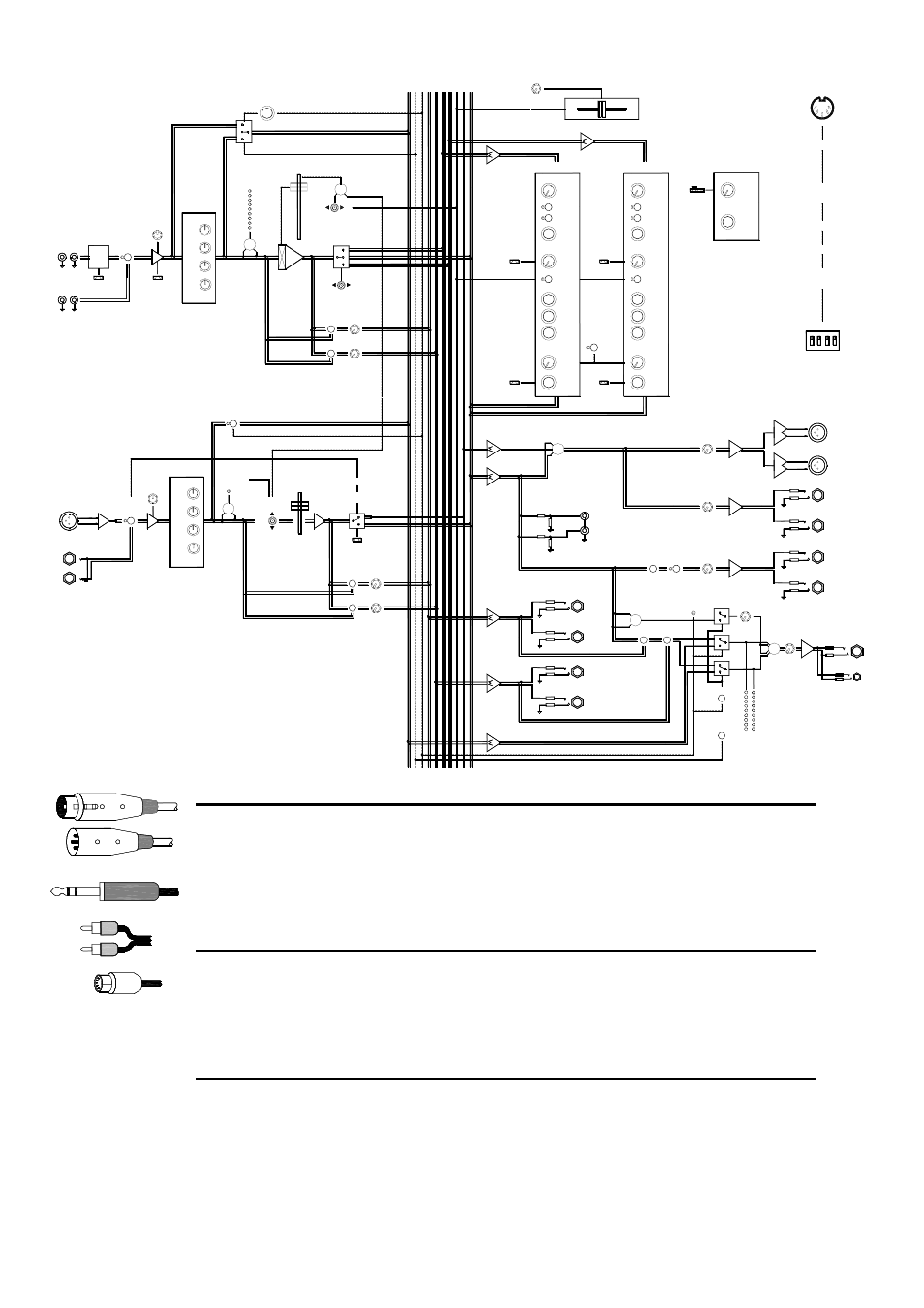

BLOCK DIAGRAM
