XONE:92 User Guide 29

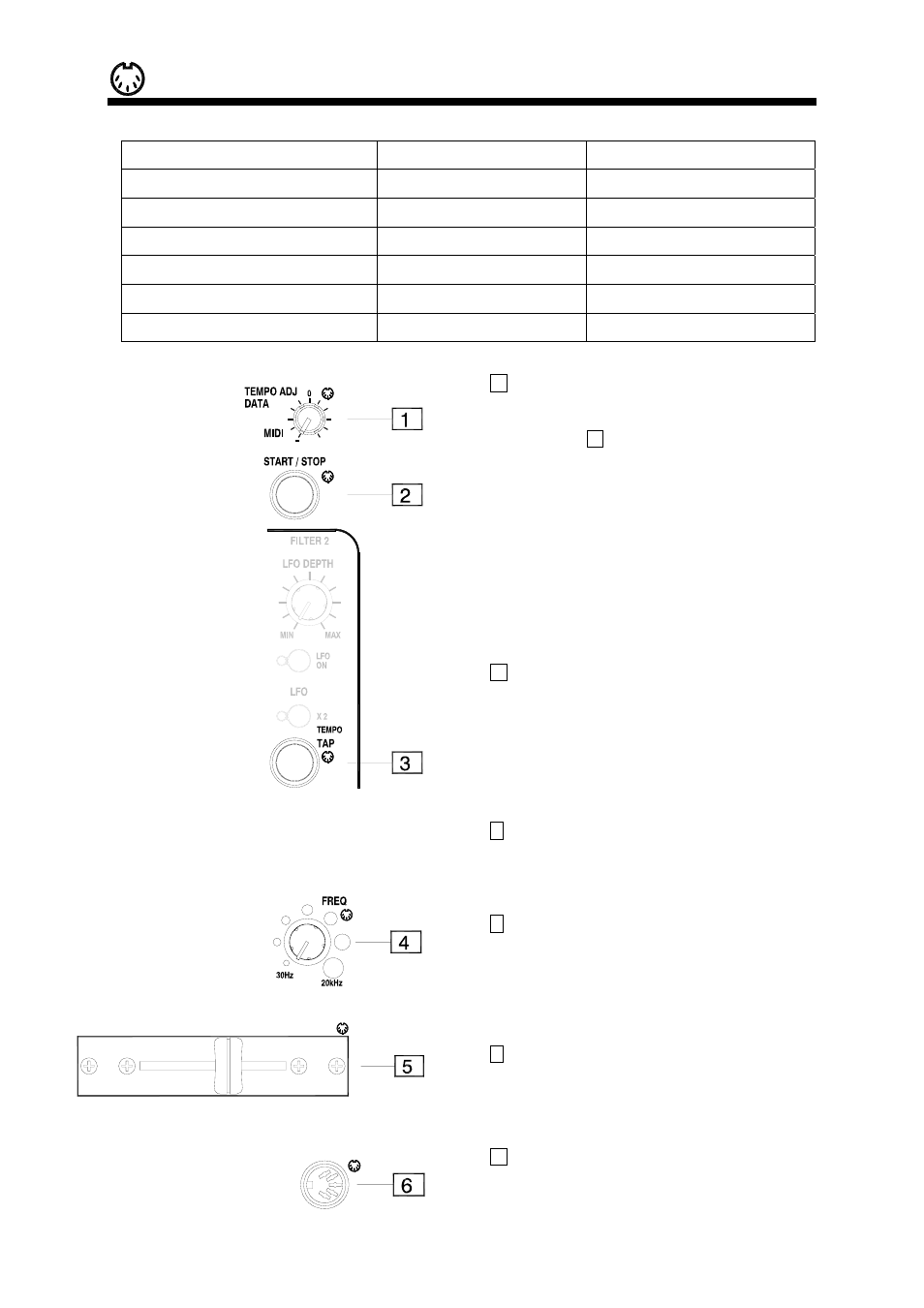

MIDI Control Codes
1 TEMPO ADJ / DATA control. The default
application for this control is to allow adjustment of
the MIDI clock speed set by the VCF 2 TAP
TEMPO button 3 . With the control in its mid
position the clock speed is unaffected. Rotate anti-
clockwise to reduce, or clockwise to increase the
clock speed. This allows external sequencers or
drum machines to be accurately aligned to the BPM
of pre recorded tracks.
An internal jumper can be reassigned to change the
function of this control to a dedicated DATA send,
and will output Control Change CC94. See Service
Options for details.
2 START / STOP button. Sends MIDI start/stop
data to an external sequencer or MIDI device. The
Lights yellow when pressed. Push once to transmit
MIDI start data, push again to transmit MIDI clock
stop+rewind data. MIDI output:
ON (1
st
press), STOP/REWIND (2
nd
press).
3 TAP TEMPO button. The tempo of the MIDI
clock is set by tapping it in using the button. The
BPM is determined by the last two button presses.
4 FREQ VCF sweep control. Both controls
independently output MIDI data 0 to 127:
VCF 1 FREQ: Control Change CC12
VCF 2 FREQ: Control Change CC13
5 CROSSFADER. Move the crossfader to output
MIDI data 0 (farthest left) to 127 (farthest right).
XFADER: Control Change CC92
6 MIDI OUT socket (chassis). 5 pin DIN socket.
Outputs all XONE:92 MIDI data to an external MIDI
compatible device.
XONE:92 control Controller Code Generated Controller Name
VCF 1 FREQ CC12 Effect Control 1
VCF 2 FREQ CC13 Effect control 2
Crossfader movement CC92 Tremolo Level
Data Controller (internal option) CC94 Celeste Level
Tap Temp LFO 2 MIDI Clocks
Start/Stop MIDI Start/Stop-rewind
MIDI OUT
+
