10 XONE:92 User Guide
Quick Start
We recommend that you read through all sections of this User Guide before starting. However, we
provide these notes so that you can plug up and experiment with sounds from your XONE:92
immediately if you prefer to read the full guide later. Please note that you should first read and
understand the Important Safety Instructions printed at the beginning of this guide. The following
simple procedure requires a CD player and headphones. Alternatively you can connect a pair of
turntables and start mixing right away. Please read the rest of this guide before connecting to your
amplifier and speaker systems.

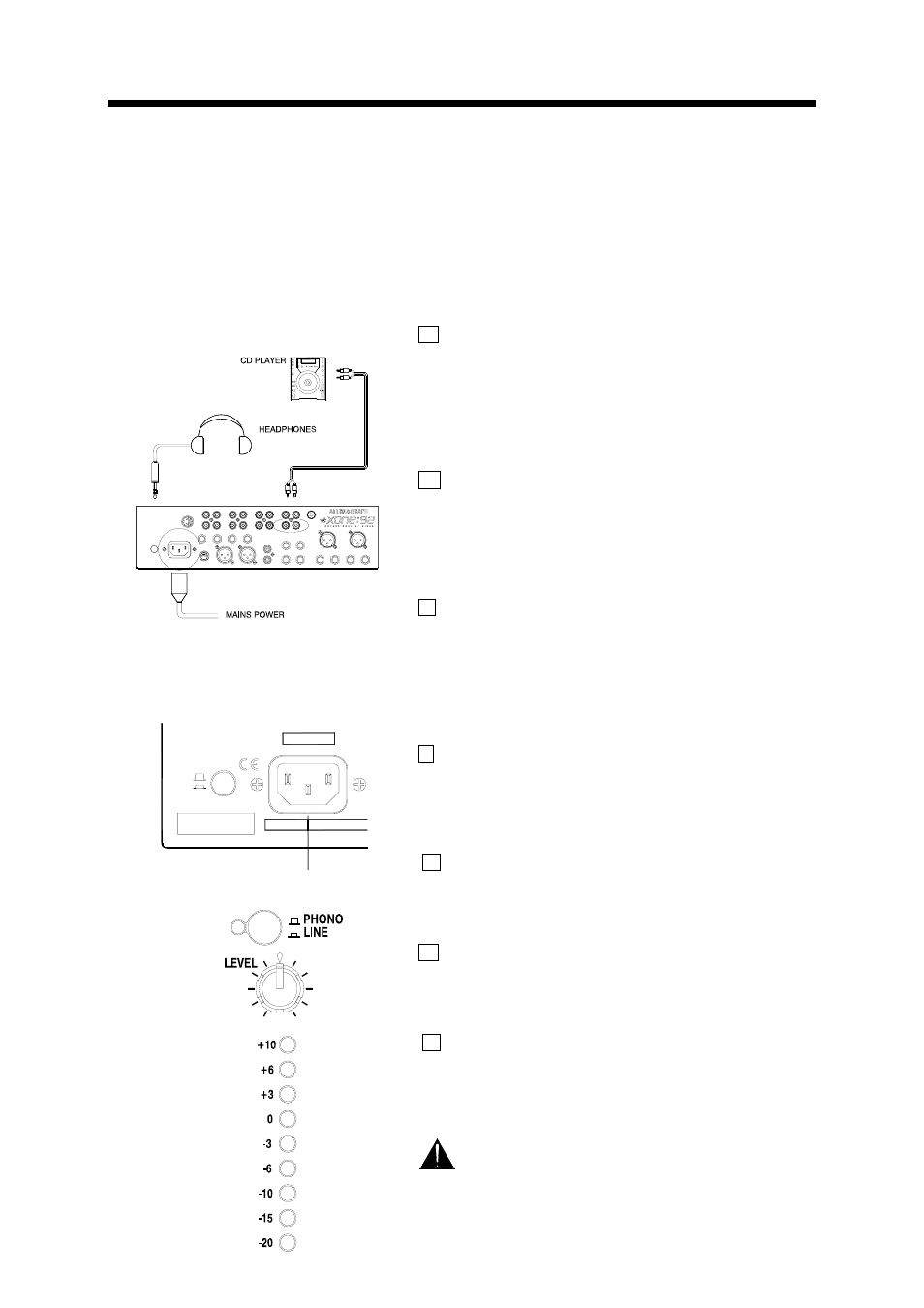

1 Set all controls to their starting condition. Set all
FADERS (rotary and linear), LEVEL, AUX, FREQ,
RESONANCE, LFO DEPTH, HEADPHONES and BOOTH
MONITOR controls to minimum. Set EQ controls to their
detented centre position. Set all press switches to their up
position. Set all toggle switches to their centre position.
2 Plug in a CD player. This provides a good stereo audio
source as a starting point. Plug into stereo channel 1 line input
as shown. Do not use the phono input for CD or other line level
sources as this is intended for turntables with magnetic
cartridges requiring RIAA equalisation.
3 Plug in the headphones. Plug into either of the top panel
headphones sockets. Use the best headphones you can afford
for your application. We recommend the professional grade
closed-ear type of 30 to 100ohms impedance, and with ¼” TRS
jack plug.
4 Connect AC mains power. Check first that the correct
mains lead with sealed plug suitable for your local supply has
been provided with your console. Plug into the AC MAINS IN
socket making sure the connector is pressed fully in.
5 Switch the console on. Press the rear panel ON/OFF
switch. You may notice that the console meters and various
other LEDs flash briefly. This is normal during power up.
6 Select the line source. Press the stereo channel 1
source select switch. This lights red to indicate that the line
source is selected.
7 Adjust the channel level. Start the CD player. Adjust
stereo channel 1 LEVEL control until the average music level
lights the channel meter blue 0 led with loudest peaks lighting
the blue +6 led. If no signal is present check that the music
source is playing and the correct input is selected.
Reduce LEVEL if the red +10 Led lights. This
indicator is a warning that the signal is approaching
clipping and that distortion may result if the level increases
further.
100 - 240V~
AC MAINS IN ~
47-63Hz ~ 30W MAX
WARNING: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE REPLACE FUSE WITH SAME
100 - 240V~ T500mAL 250V 20m
OFF
SERIAL No:
0
I
ON
