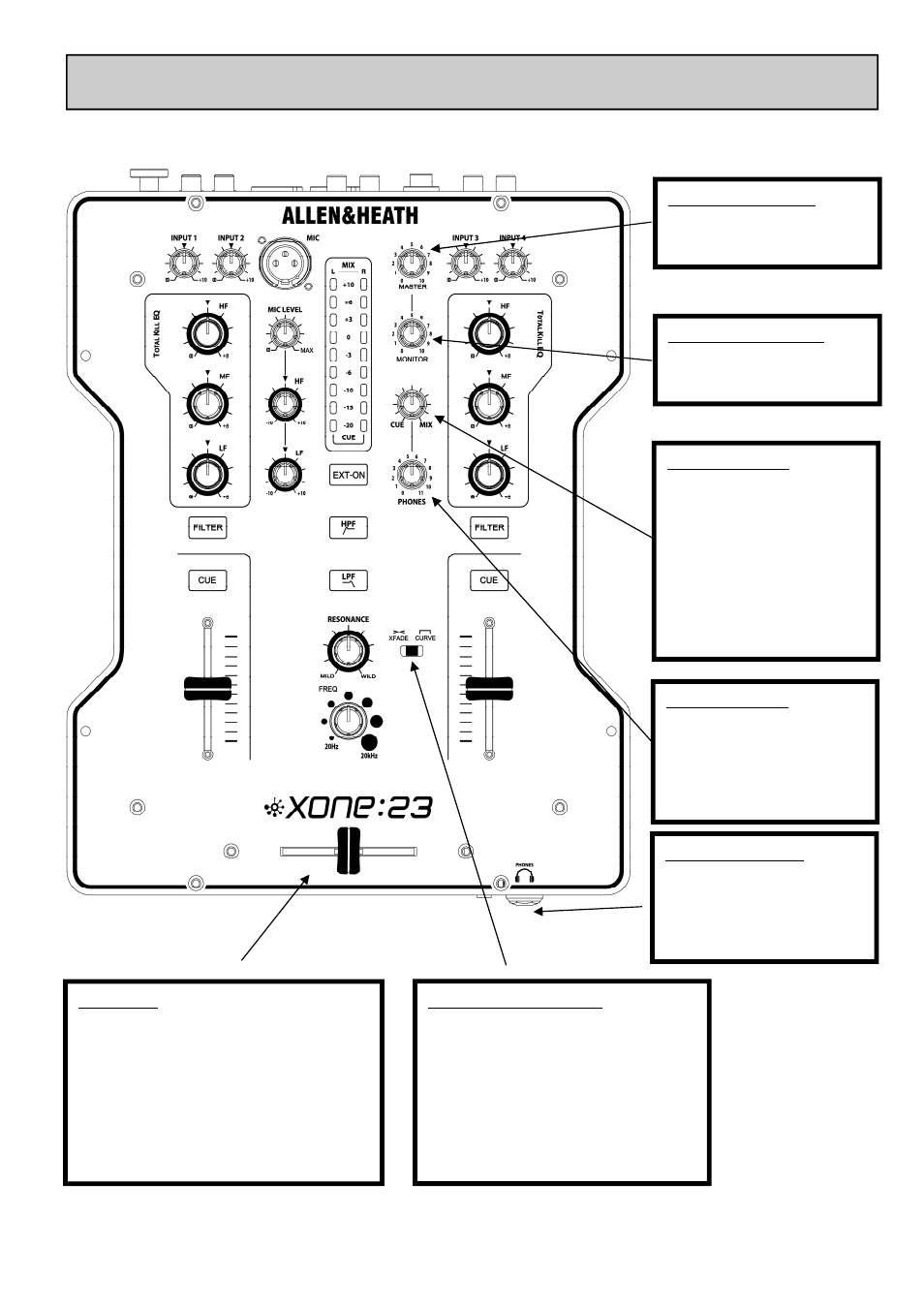

MASTER CONTROLS
Master output Level
Sets the signal level to the
main XLR mix output
Monitor output Level
Sets the signal level for the
local monitor (booth) output
Headphone level
Sets the level of the head-
phone output.
Warning! Very high level can
cause hearing damage!
Crossfader curve switch
Push to the left for a progressive fader
response, useful for blending between
tracks. Push to the right for a sharper
response, more suitable for scratching
Cue/Mix Control
When set to Cue, nothing will
be sent to the headphone
output unless a channel Cue is
activated. When set to Mix,
the main mix will always be
sent to the headphones. In the
centre position the Cue signal
and the main mix are summed
together.
Crossfader
This is used to “fade” the signal level between
the two channels, and its response is set us-
ing the curve switch. When the crossfader is
fully over to the left only the music from
channel 1 will be heard, and when fully to the
right only channel 2. When in the centre the
music from both channels will be heard in
equal proportion.
Headphone Socket
Accepts both 1/4” and 3.5mm
plugs. Use a good quality set
with an impedance between 25
- 70 Ohms.
