WZ

3

16:2

and

12:2

User Guide

27

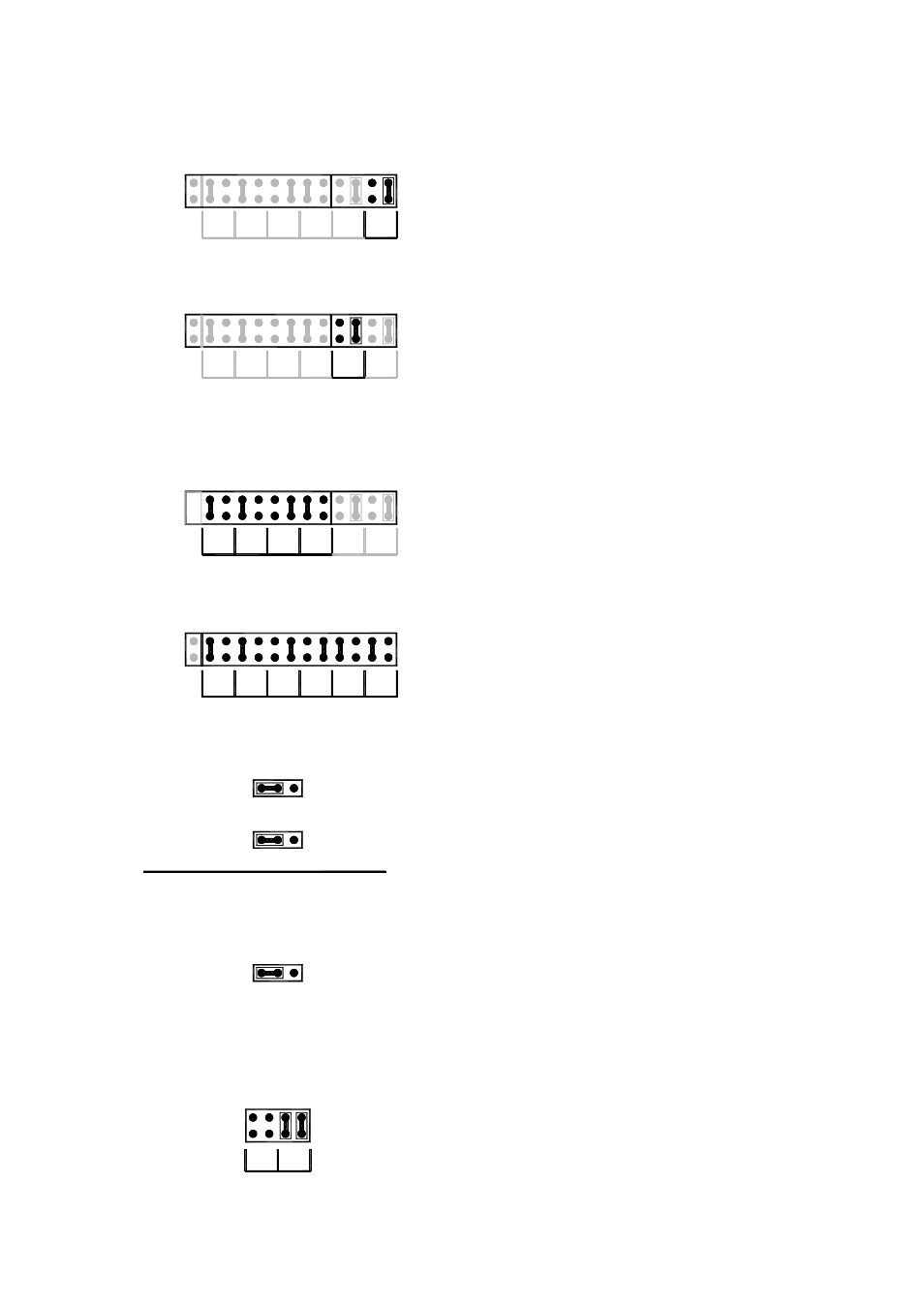

Aux pre/post insert/EQ

Factory default for

the mono channel pre-fade auxes is pre-insert, pre-
EQ. This is popular with many users mixing monitors
from FOH. It prevents the channel EQ and inserted
compressors affecting the monitor mix. Move the
jumper from A to B to change this to post-insert,
post-EQ if preferred. Note that auxes are always
post-mute.

Direct output source

Factory default is pre-

fader. This is common for live recording to
multitrack. The live mix fader movements do not
affect the recording. Move the jumper from C to D to
change to post-fade. Post-fade is appropriate when
using the output as a direct channel effects send.

Channel Aux pre/post settings

Factory

default is Aux 1-2 = pre-fade, Aux 3-4 = switched,
Aux 5-6 = post-fade. You can change these settings
for different combinations of pre/post or switched
auxes by repositioning the links. Refer to the system
block diagram to explore the possibilities. Make sure
you set all mono and stereo channels the same.
Before you make your choice, consider whether you
want to use AUX5 or 5/6 for the internal effects
(should be post) and/or AUX6 to feed aux fed subs
(also post). We recommend you only change these
settings if absolutely necessary.

Stereo/Mono aux source

The stereo

channels can feed the auxes with a mono sum of
L+R, or be configured so that L feeds the odd
numbered auxes, and R the even. This is preferred
when using odd/even auxes as stereo pairs. Factory
default is the mono setting. Note that you should
also set the ST1 (ST5) stereo/mono jumper to the
same position.

Effects return stereo/mono aux source

The return channel ST1 (5) feeds Auxes 1-4 with a
mono sum of the stereo signal. If you are working
with stereo auxes you can reconfigure this for stereo
with L feeding Auxes 1, 3 and R feeding Auxes 2, 4.
The jumper is found behind the AUX2 send control.

AB source pre or post LR faders

The

factory default is that the post-fade LR mix feeds the
AB output. If you prefer the master LR faders not to
affect the AB output then reposition the two option
jumpers in the PRE position. This may be desired if
you are using the AB output to feed a 2-track
recording independent of the house level.

STEREO

MONO

JP1

PRE

L

R

L

R

POST

JP2

JP4

JP1

JP3

AB PRE/POST LR FADER

AUX MASTER - ST1(5) MONO/STEREO

LR MASTER - AB SOURCE

ST1(5) AUX SOURCE

AUX

AUX

DIR

1-2

3-4

5

6

PR

PO

PR

PO

SW

PR

SW

PR

SW

PO

SW

PO

A

B

C

D

E

F

G

H

I

J

K

L

PRE-INSERT/POST-EQ

AUX

AUX

DIR

1-2

3-4

5

6

PR

PO

PR

PO

SW

PR

SW

PR

SW

PO

SW

PO

A

B

C

D

E

F

G

H

I

J

K

L

SW=SWITCH

PO=POST

PR=PRE

AUX

2

3

4

5

6

SW

PR

SW

PR

SW

PR

SW

PR

SW

PO

SW

PO

A

B

C

D

E

F

G

H

I

J

K

L

STEREO CH - AUX PRE/POST FADER

1

SW=SWITCH

PO=POST

PR=PRE

AUX

AUX

DIR

1-2

3-4

5

6

PR

PO

PR

PO

SW

PR

SW

PR

SW

PO

SW

PO

A

B

C

D

E

F

G

H

I

J

K

L

MONO CH - AUX PRE/POST FADER

MONO CH - AUX PRE/POST EQ

MONO CH - DIRECT OUT

STEREO

MONO

STEREO

MONO

PRE-FADE AUXES

POST-FADE AUXES

CN4

CN5

STEREO CH - MONO/STEREO AUXES
