16

WZ

3

16:2

and

12:2

User Guide

AUX SENDS

These rotary controls adjust how much channel

signal is mixed to the aux outputs. Each of the 6 auxes has its own
control. They adjusts from fully off to +6dB boost. Unity gain 0dB is
marked at 3 o’clock position. Factory default settings should satisfy
the most common applications:

AUX1, AUX2 = Pre-fade

AUX3, AUX4 = Switched pre/post using PRE swittch

AUX5, AUX6 = Post-fade

Pre-fade aux = Pre-INSERT, pre-EQ, post-MUTE

These settings may be changed if preferred by repositioning internal
jumper link options. They offer many different combinations of pre and
post-fade sends, and a post-EQ option for the pre-fade sends. The
PRE switch can be assigned to one, two or more of the sends. More
detail is provided in OPTIONS later in this guide.

Pre-fade aux sends are not affected by the channel fader movements.
These are typically used to feed stage monitors. In most cases users
also prefer that the monitor sends are not affected by inserted
processors or the channel EQ. Post-fade aux sends follow the channel
faders and are typically used to send a proportion of the channel signal
to an effects device such as reverb or delay. Pre or post-fade sends
may also be used for special applications such as recording, zone
feeds, clean feeds and aux fed subs.

PRE

When pressed the pre-fade channel signal is sent to the

associated auxes. When released the post-fade signal is sent. Auxes
3 and 4 are affected by the PRE switch (factory default). You can
change this by repositioning the internal option jumpers.

PAN

Positions the channel signal between L and R in the stereo

mix. The centre position (mono image) is detented for quick resetting.

MUTE

When pressed the channel signal is turned off. This affects

the feed to the LR mix, pre and post-fade aux sends and direct output,
but does not affect the insert send. The red indicator lights when the
channel is muted.

PFL

Press PFL to listen to the pre-fade channel signal in the

headphones or AB monitor (if configured) without affecting the main
outputs. The console main LR meters are interrupted with the channel
signal. The red PK indicator half lights to show that PFL has been
selected on that channel. Selecting more than one PFL at the same
time mixes those signals together in the monitor.

PEAK

The red indicator illuminates when the channel pre-fade

signal is within 5dB of clipping. This gives you enough warning to
reduce the GAIN control before you hear signal distortion.

SIGNAL

The green signal presence indicator lights when the

channel pre-fade signal is greater than -12dBu.

FADER

Controls the channel level feeding the main LR mix and

post-fade aux sends. It also affects the direct output if this has been
set to post-fade using the internal option jumpers. The fader provides
+10dB maximum boost above its normal unity gain 0dB position.

Important note on setting channel levels: Use PFL to set the GAIN
controls for correct signal level through each channel. Use the faders
to balance each signal in the mix. These are typically operated around
their -20 to 0 positions according to the mix. We do not recommend
setting the faders to ‘0’ and mixing using the GAIN controls.

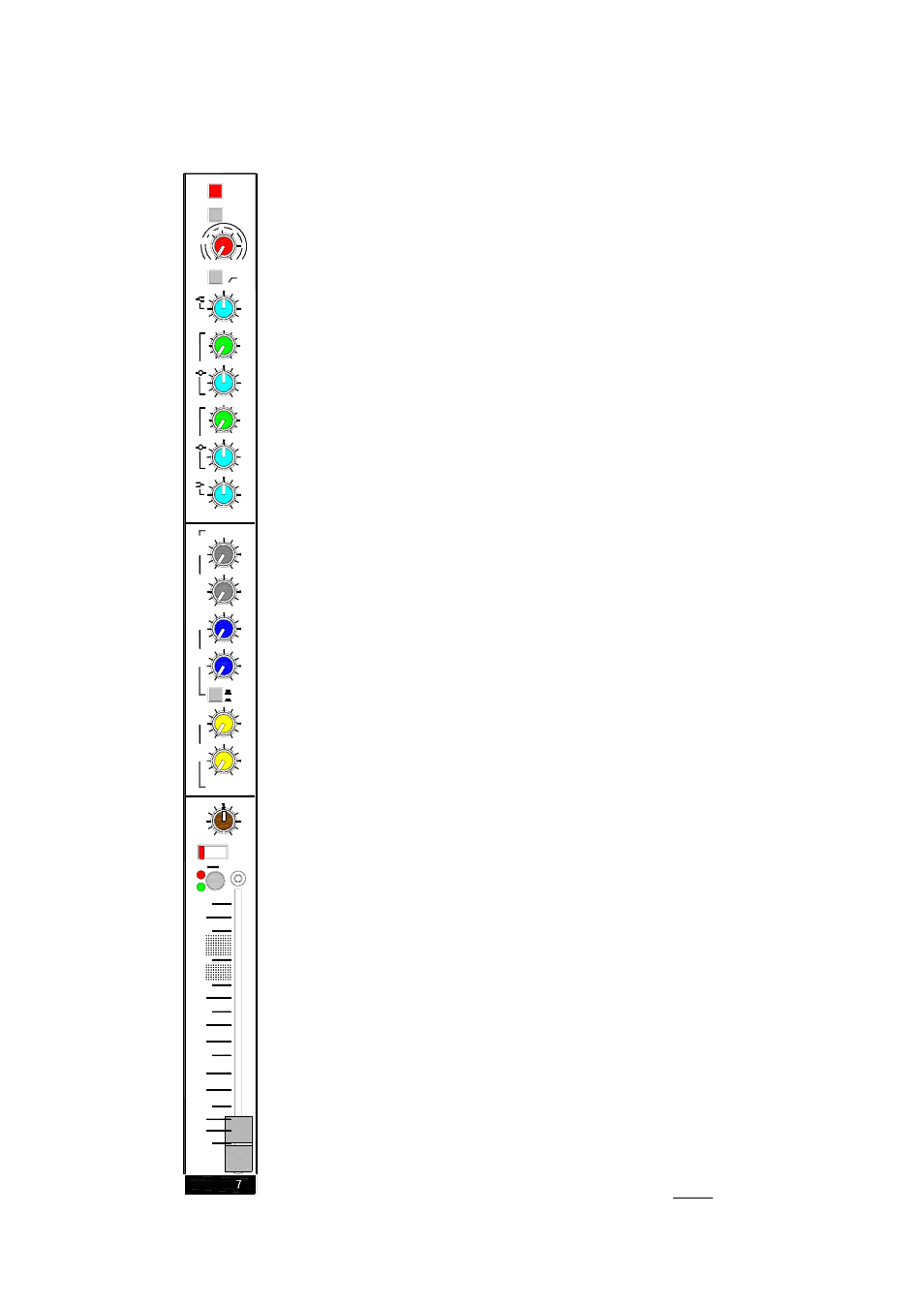

POST

POST

PK!

PAN

6

AUX

AUX

5

MUTE

PFL

L

R

O

O

=

+6

O

O

+6

PRE

PRE

AUX

AUX

4

3

AUX

2

AUX

1

O

O

+6

O

O

+6

O

O

+6

O

O

+6

OO

20

30

10

5

0

5

10

SIG

30

PAD

+48V

40

50

HPF

60 40

0

20

GAIN

HF

- 10 10

+15

4k

15k

6k

1k

-15

500Hz

700

HM

3k

(LINE)

+15

250

1k

400

-15
70

35Hz

LM

45

180

+15

+15

-15

LF

-15
