STEP 20
Fully thread screw collar loop or threaded stem that was supplied with chandelier to 3/8 IPS(16mm) fixture
coupler. If chandelier was supplied with a 1/2 IPS(12mm) or 1/4 IPS(13mm) screw collar loop or threaded
stem, see attached parts bags on cover to obtain proper sized fixture coupler. If the screw collar loop or
threaded stem supplied with chandelier does not properly fit, contact chandelier manufacturer or Aladdin
Light Lift (877) 287-4601 to obtain proper coupler. See Diagram H.
Failure to insure your fixture is properly mated to the fixture coupler could cause the chandelier to fall,
which could cause death, personal injury, and/or property damage.
Never hang a chandelier from an ALL1000 using anything but the Aladdin Light Lift supplied fixture
coupler, bottom contact plate, and dowel pin. This could cause the chandelier to fall, which could cause
death, personal injury, and/or property damage.
STEP 21
Attach chandelier canopy to screw collar loop using screw collar rings on both top and bottom. An extra
screw collar ring (part C) is supplied in parts bag. See Diagram H.
Screw Collar Rings
3/8 IPS(16mm) or
1/2 IPS(22mm)
Fixture Coupler
Threaded Stem/Screw Collar
Loop Supplied with
Chandelier
STEP 22
Adjust chandelier chain to desired length and attach to screw collar loop.
Never cut, modify, or adjust the winch cable and never install an ALL1000 with a cut, modified or
adjusted winch cable. Adjust the chandelier elevation by adjusting the chandelier chain or stem. An
ALL1000 installed with a cut, modified, or improperly adjusted cable could cause the chandelier to fall,
which could cause death, personal injury, and/or property damage.

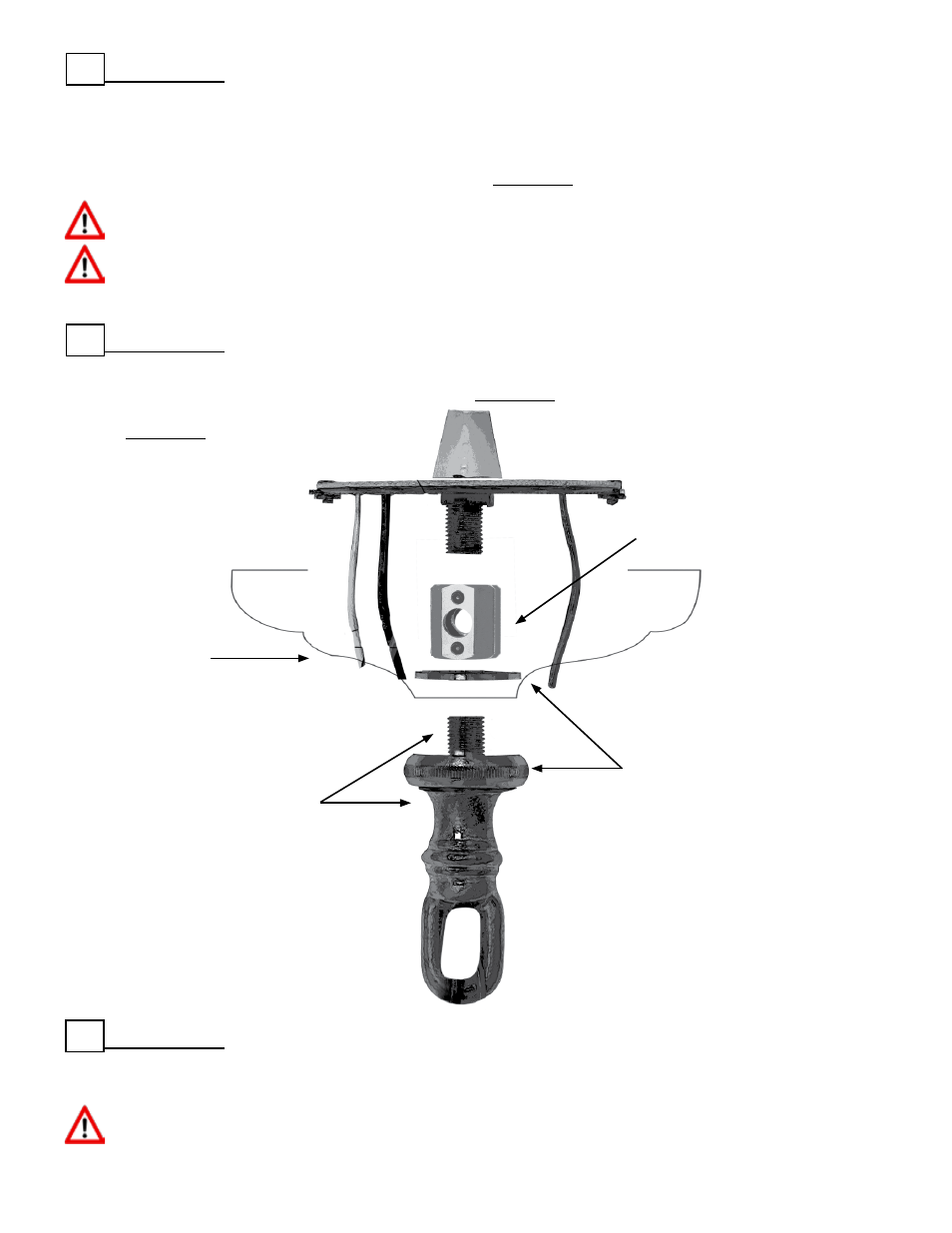

Diagram H
Canopy
