STEP 11
Turn off supply power before wiring ALL1000. Turn off motor switch in square box. Wire motor switch
with 230V wiring. The 230V motor feed must be kept separate from 230V light switch leg. Keep motor
and light hots separate. One motor hot is black and 14 gauge. The other motor hot is white and 14 gauge.
See Diagram G.
Never wire the ALL1000 improperly. Make sure electricity is turned off when installing and/or
performing maintenance on the ALL1000. Improper wiring and/or electricity could cause death,
personal injury, and/or property damage.
STEP 12
Turn off supply power before wiring ALL1000. Turn off light switch in square box. Wire light switch with
230V wiring. The 230V light switch leg can not be used as motor feed. Keep light and motor hots separate.
One light hot is black and 12 gauge. The other hot is white and 12 gauge. If wired properly, a dimmer may
be used. See Diagram G.
Never wire the ALL1000 improperly. Make sure electricity is turned off when installing and/or
performing maintenance on the ALL1000. Improper wiring and/or electricity could cause death,
personal injury, and/or property damage.
Aladdin 12 Gauge Light Hot
(White)
Aladdin 14 Gauge Motor Hot
(White)
Aladdin 14 Gauge Motor Hot
(Black)
Aladdin 12 Gauge Light Hot
(Black)
230V House Hot
For Motor
230V House Hot
For Motor
House Hot Light
Switch Leg 230V
House Hot Light
Switch Leg 230V

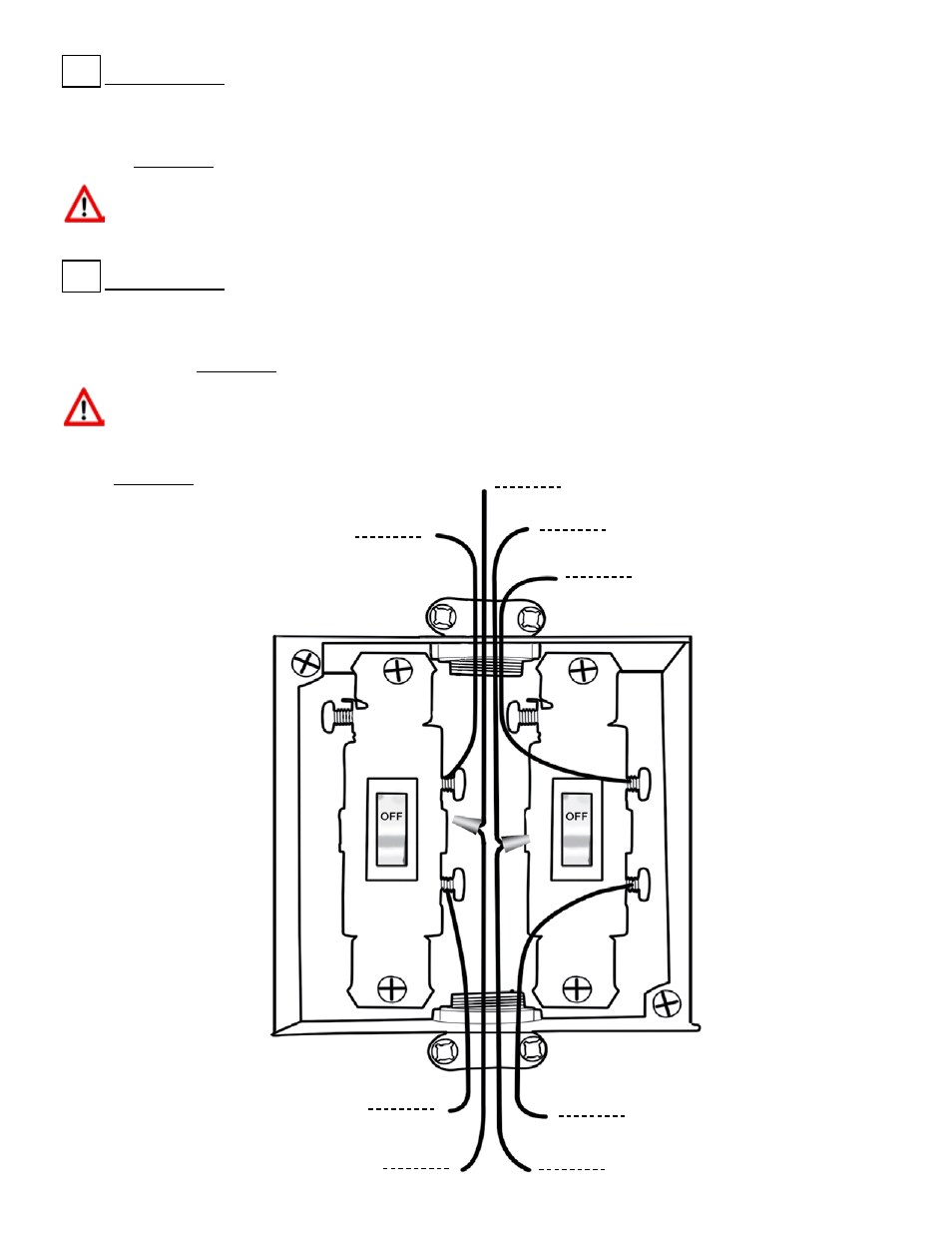

Diagram G
Light
Motor
