Step 8 – Aladdin Light Lift ALL200RM-CM User Manual
Page 7
STEP 8
Turn off supply power before wiring ALL200RM motor switch. Turn off motor switch in square box. Wire
motor switch with 110V wiring. The 110V motor feed must be kept separate from 110V light switch leg.
Keep motor and light neutrals separate. Motor neutral is white and 14 gauge. Only wire motor switch at
this time. See Diagram G.
Never wire the ALL200RM improperly. Make sure electricity is turned off when installing and/or
performing maintenance on the ALL200RM. Improper wiring and/or electricity could cause death,
personal injury, and/or property damage.
14 Gauge Motor Neutral
14 Gauge Motor Hot
110V House Hot
For Motor
110V House Neutral
For Motor

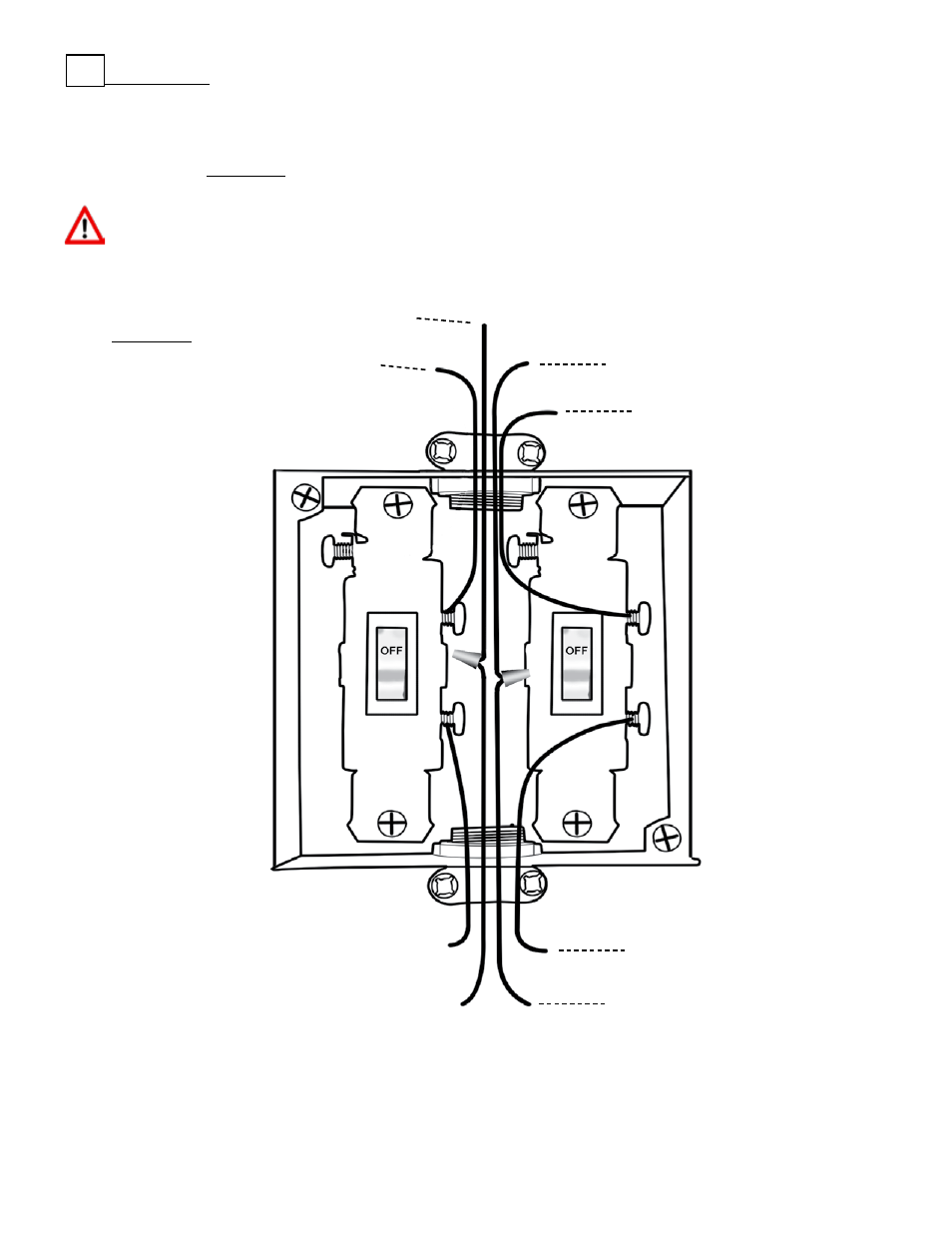

Diagram G
Light
Motor
Do Not Wire Light
Switch At This Time
12 Gauge Light Hot
12 Gauge Light Neutral
