Step 25 – Aladdin Light Lift ALL200RM-CM User Manual
Page 14

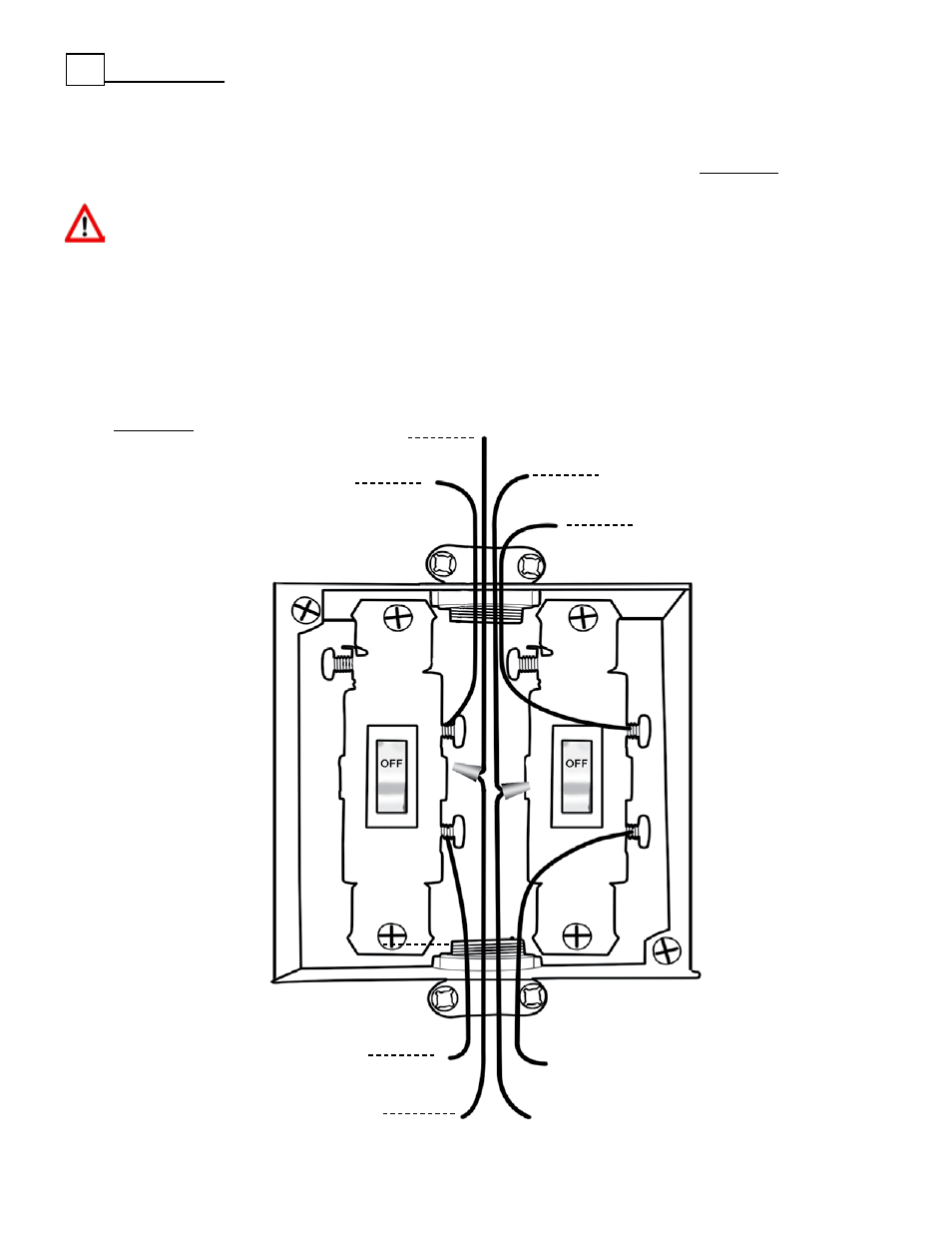

STEP 25
Turn off supply power before wiring ALL200RM light switch. Turn off light switch in square box. Wire
light switch with 110V wiring. The 110V light switch leg can not be used as motor feed. Keep light and
motor neutrals separate. Light nuetral is white and 12 gauge. If wired properly, a dimmer may be used.
Wire a two-circuit light package on seperate phases for lights (2 hots - 1 neutral). See Diagram O.
Never wire the ALL200RM improperly. Make sure electricity is turned off when installing and/or
performing maintenance on the ALL200RM. Improper wiring and/or electricity could cause death,
personal injury, and/or property damage.
12 Gauge Light Neutral
12 Gauge Light Hot
Neutral Light
Switch Leg 110V
Hot Light Switch
Leg 110V
Diagram O
Light
Motor
14 Gauge Motor Neutral
14 Gauge Motor Hot
