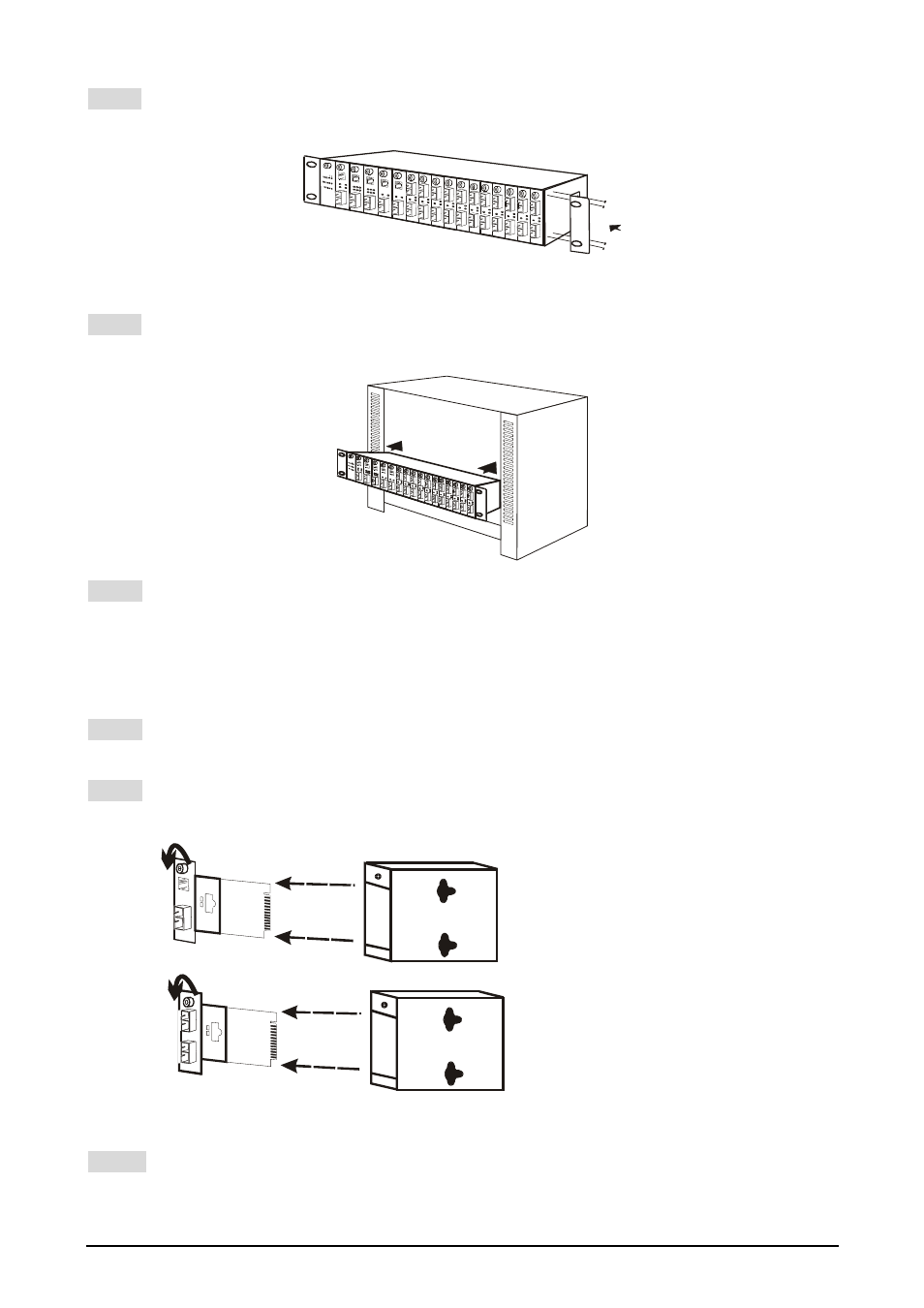

Step 1: Attach the brackets to each side of the chassis. Apply four screws to each side
and secure them tightly.
Step 2: Carefully position the chassis into the rack. Align the brackets to the side holes
on the rack and use rack screws to secure the chassis with the rack.
Step 3: Proceed to the “Connecting to Power” section.
.Installing Media Converter
The chassis is equipped with sixteen media converter carriers, each of which is fitted into
bays of the chassis.
Step 1: To install a media converter module onto the chassis, you have to unscrew the
bay cover from the desired bay first.
Step 2: Unscrew the hand screw counter clockwise by using hand or screwdriver and pull
out the media converter out the carrier as shown below.
Unscrew the hand screw counter clockwise
by using hand or screwdriver and pull the
media converter module out on the carrier
Step 3: Carefully slide in the module and fasten the hand screw clockwise by using
hand or screwdriver until it is fully and firmly fitted into the slot of the chassis.
