Technical documentation: MyChron 3 Visor Version 1.09 4

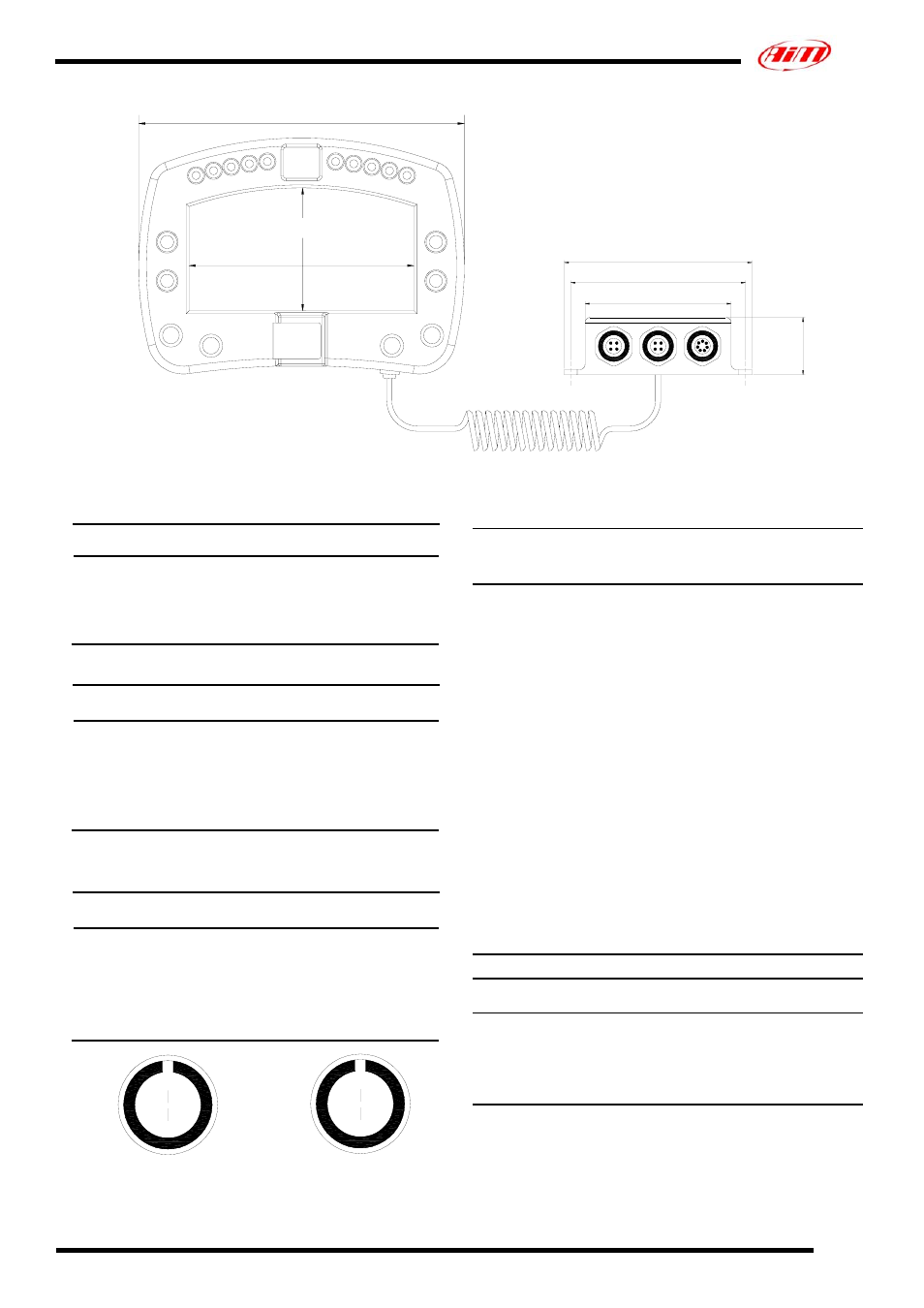

Dimensions
87 [3,43]
22
[
0
.8
7]
SPEED BEACON POWER-COM
72 [2.83]
56 [2.19]
64 [2.52]
48 [1,89]
126 [4,96]
Dimensions in millimeters [inches]
Speed channel pinout
Pin Function Pin Function
1 Speed signal input 3 +V battery
2 GND 4 Not connected
Beacon channel pinout
Pin Function Pin Function
1
Magnetic / Optic
codified lap
3 +V battery
2 GND 4
Optic not
codified lap
POWER / COM channel pinout
Pin Function Pin Function
1 CAN + 5 Rx 232
2 CAN - 6 N.c.
3 + V batt. 9 -15V 7 GND
4 Tx 232
1 4
3 2
7
5
6
1
2
3
4
4 & 7 pins female Binder 712 connectors pinout:
external view
Technical characteristics
General
characteristics Value
Input channels 1 speed input
Input channels from
ECU Max. 64
Speed sampling
frequency 10 Hz
External power From 9 to 15 VDC
Internal memory 512 kbytes flash
EPROM
ECU interface: serial
protocol 19.2 bps (Pectel and
MBE)
9.6 bps (DTA)
ECU interface: CAN
protocol 1 Mbit/sec (EFI
EUROPE)
500 kbit/sec (SEAT)
PC interface 300 kbyte/sec USB
port
Other characteristics Value
M3 Visor dimensions 126x92x24 mm
Display dimensions 87x48 mm
Environmental IP 65
