LCU-ONE Analog
User Manual
Release 1.02
8
3.2 – LCU-ONE Analog custom configuration
In case calibration curve default points have been modified it is necessary to configure
LCU-ONE Analog using Lambda Caonfigurator software.
Warning: to correctly configure LCU-ONE Analog, please ensure you have
installed a software version 1.00.07 or later.

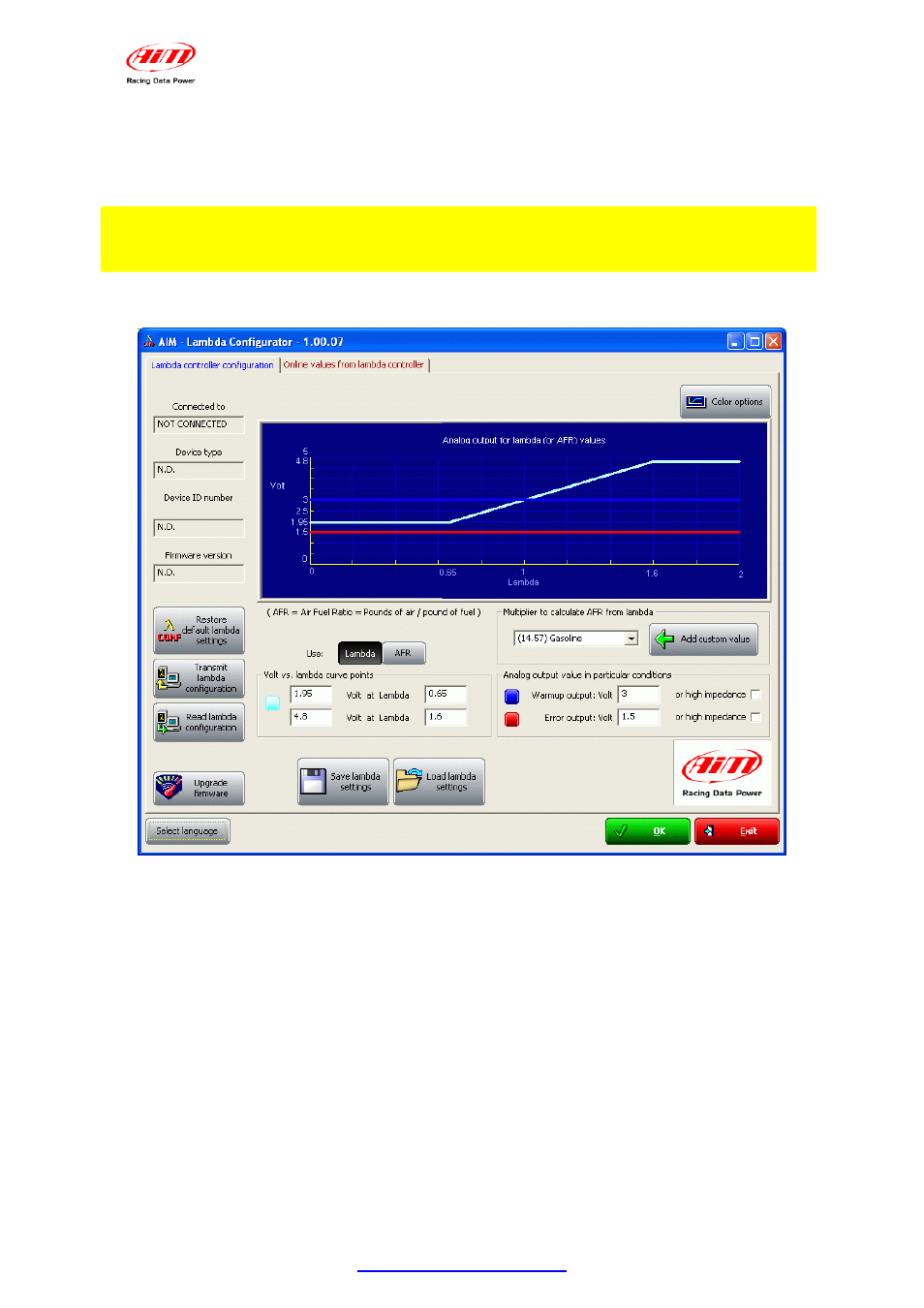

To configure LCU-ONE Analog run the software. The following window appears.
This is software main window. It is made up of two layers:
• Lambda controller configurator: it shows analog output graph (central) and
allows the user to configure LCU-ONE Analog, read its configuration and
transmit a new one, restore default Lambda settings, import and export the
configurations and update LCU-ONE Analog firmware.
• Online values from Lambda controller: it shows LCU-ONE Analog-PC
connection status.
