AIM Sports Fiber Optic Tri-Illuminated Scopes User Manual
Page 6

3
28
1. Objective Lens
2. Elevation Turret
3. Windage Turret
4. Illumination Dial
5. Tube
6. Ocular Lens
7. Accessory Rail
8. Illumination Battery
Cap
12. Base Mount
SCOPE PARTS
(MODELS JTDSR432G & JTDTR432G)
CAUTION
Always check and be certain that the firearm is unloaded
before undertaking any work upon it.

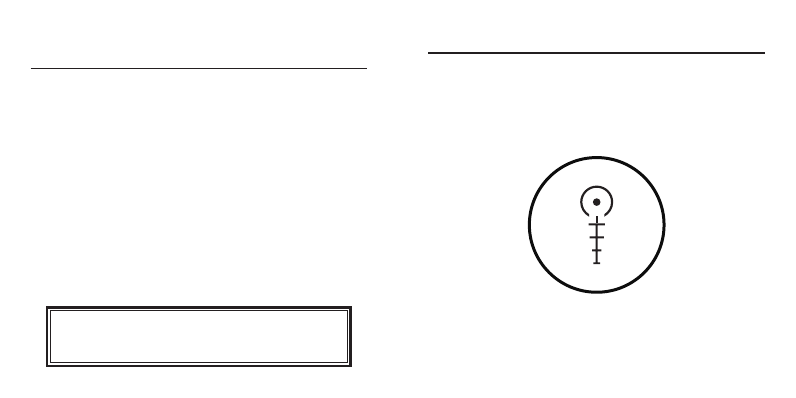

3/4 CIRCLE RETICLE
The 3/4 Circle Reticle is designed specifically to enhance a shooter’s
accuracy and capabilities under a variety of field conditions, both long and
close range. This reticle is not calibrated for a specific caliber.
