5.4 Interface overview IRF26xx

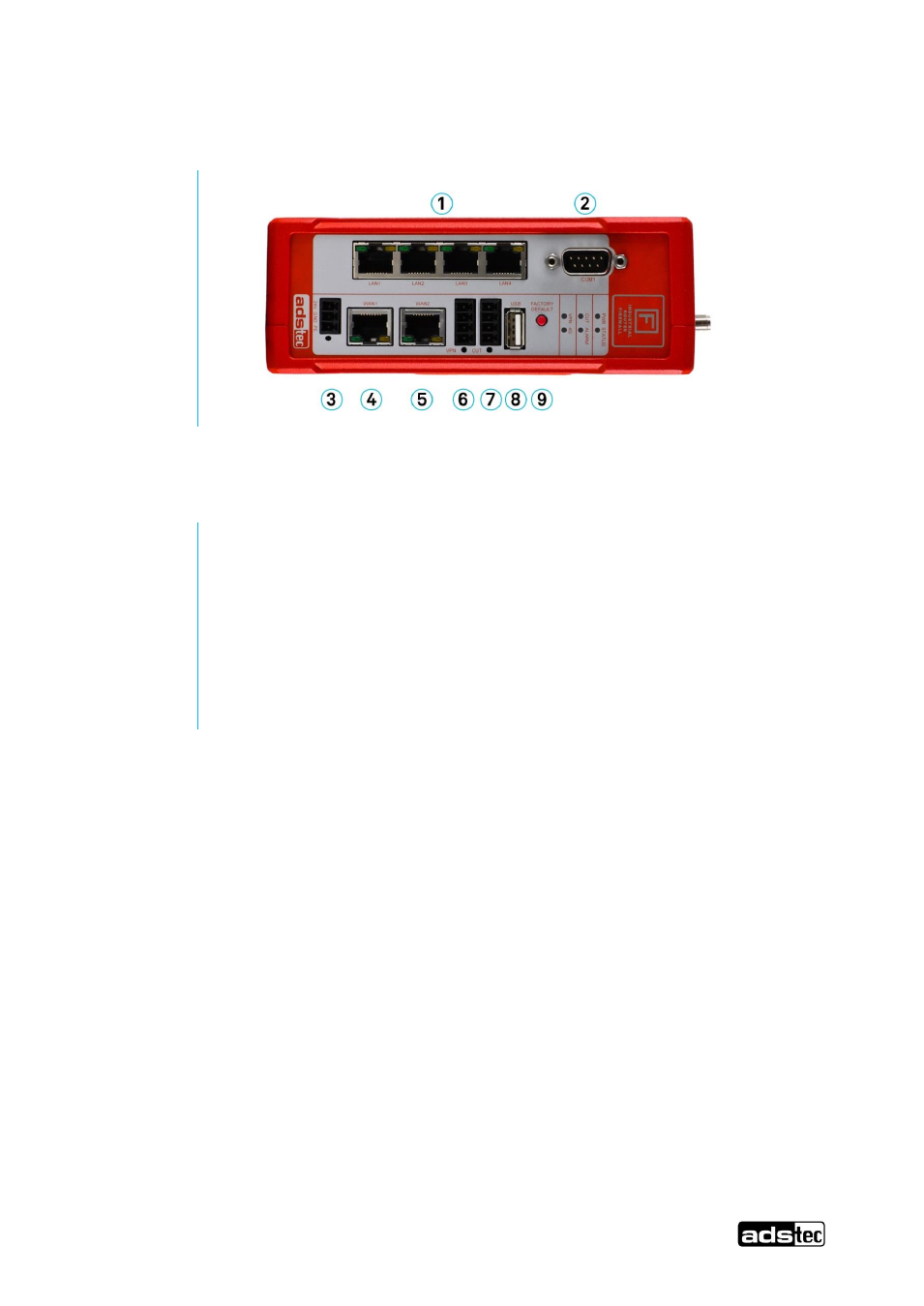

Fig. 9:
The device is equipped with the following interfaces (front):
1. LAN RJ45 switch (4 ports)
2. COM port
3. Power (24V DC power supply (3-pin plug))
4. LAN RJ45
5. WAN RJ45
6. VPN (4-pin plug)
7. CUT & ALARM (4-pin plug)
8. USB 2.0
9. Factory Default pushbutton
