5.1.1 PWR / CUT & ALARM / VPN 3G

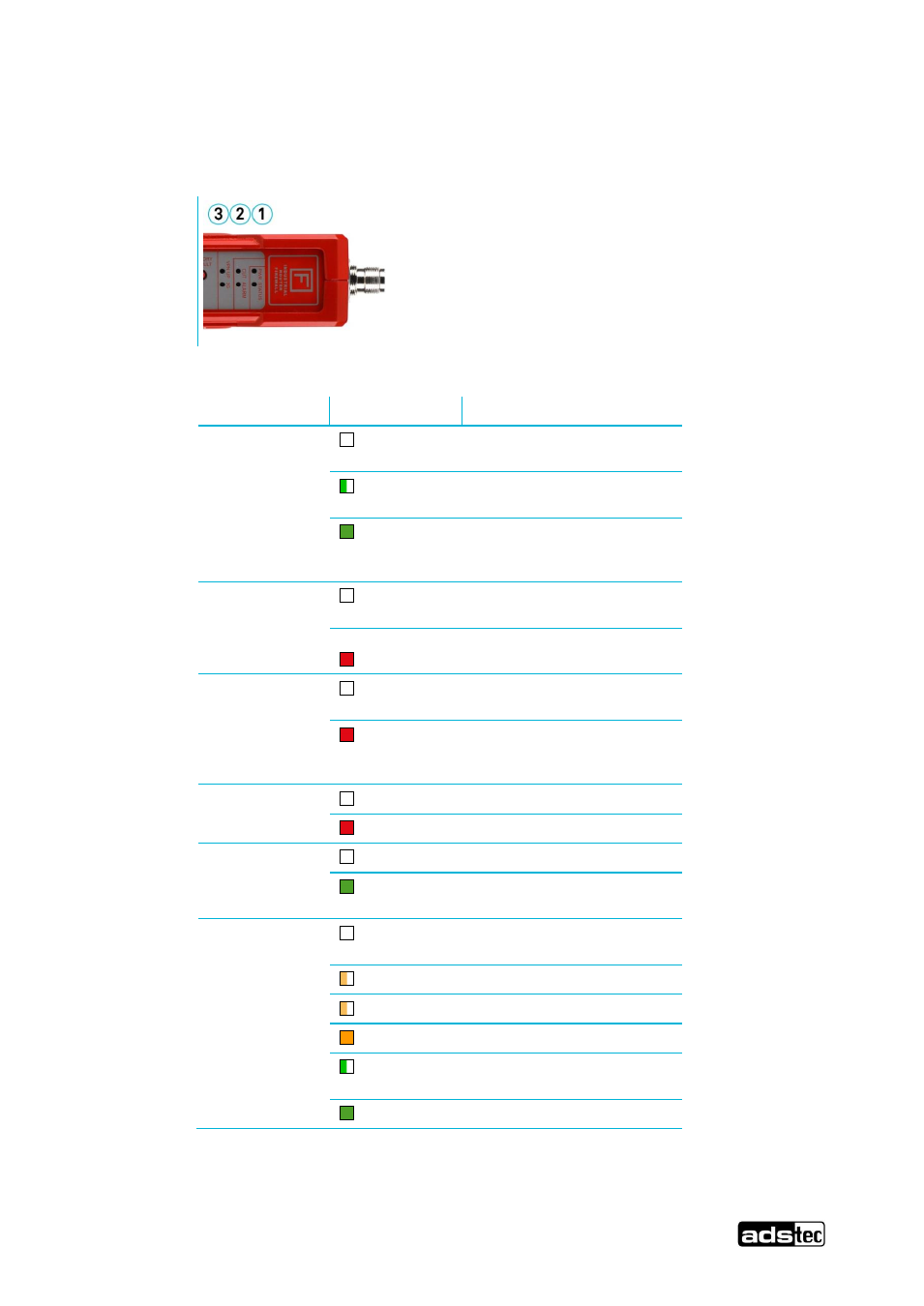

Fig. 6:

Signal

Action

PWR (1)

This device is not supplied
with voltage

Indicates POWER ON,
flashes during booting

The device is supplied with
voltage via POWER and is
ready for operation

Status (1)

This device is not supplied
with voltage

Error during the boot-up
process / recovery image

CUT (2)

The CUT interface is not
supplied with voltage

A CUT was triggered, LED
illuminates and Link is
deactivated

Alarm (2)

No alarm was triggered

An alarm was triggered

VPN Up (3)

No VPN tunnel is active

The tunnel activated via VPN
key is active.

3G (3)

No active GSM/3G/UMTS
connection

Network search on 1Hz

Log-in declined on 2Hz

Logged in, offline

Logged in, standby
(dial-on-demand)

Logged in, online
