Page 12

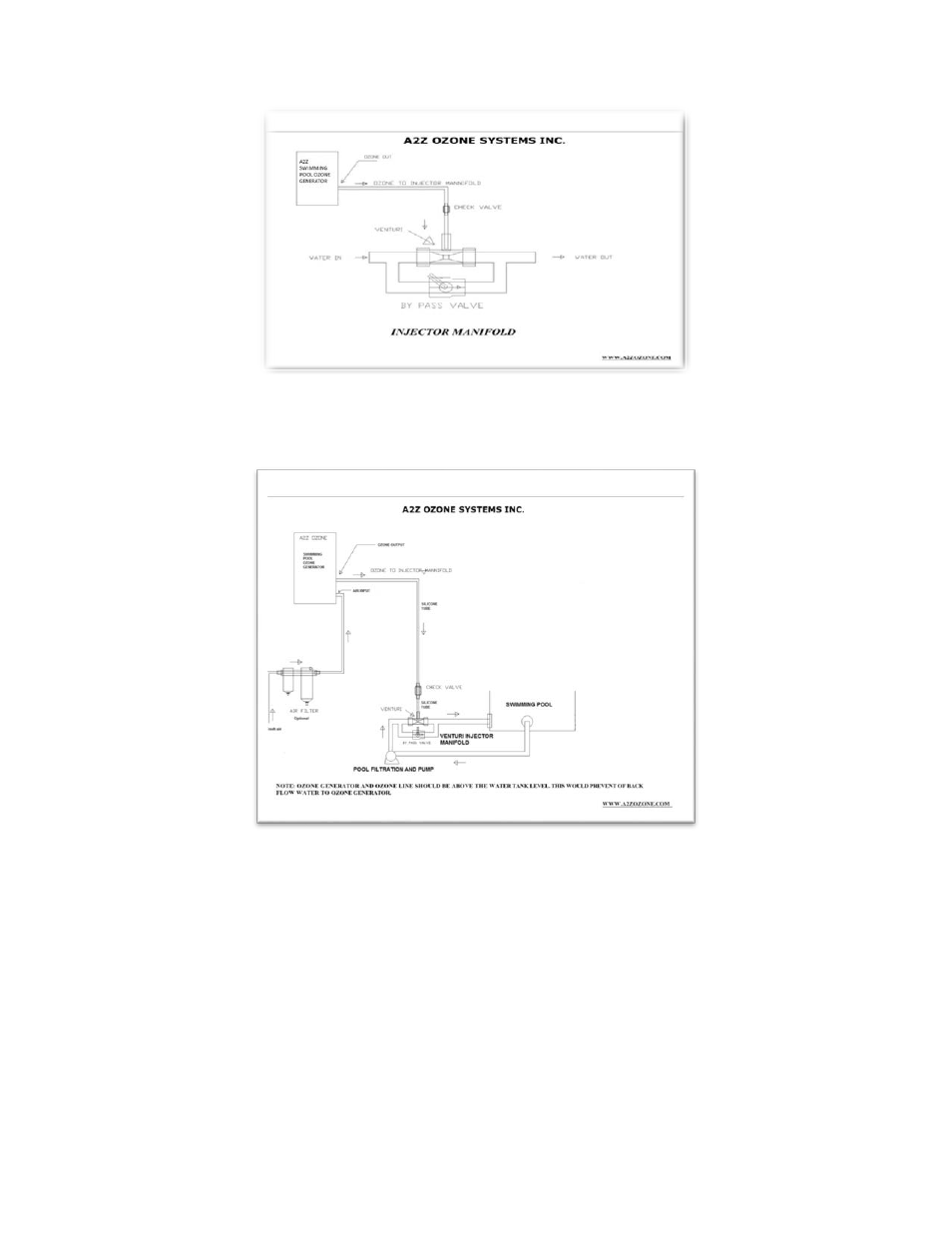

SAMPLE SCHEMATIC DIAGRAM
CORONA DISCHARGE (CD) OZONE SYSTEMS
Ozone is manufactured in the CD ozone generator by drawing in air, which is composed of 20%
oxygen (O
2
), and exposing it to multiple high voltage electric0). The ozone is drawn into the
water by a venturi injector/mixer, killing any bacteria, viruses or mold spores it contacts. Ozone
is generated on-site, eliminating the need to store toxic and corrosive chemicals. The corona
discharge method is the most efficient way to produce large amounts of ozone.
