11

LOG SPLITTER

OPERATION

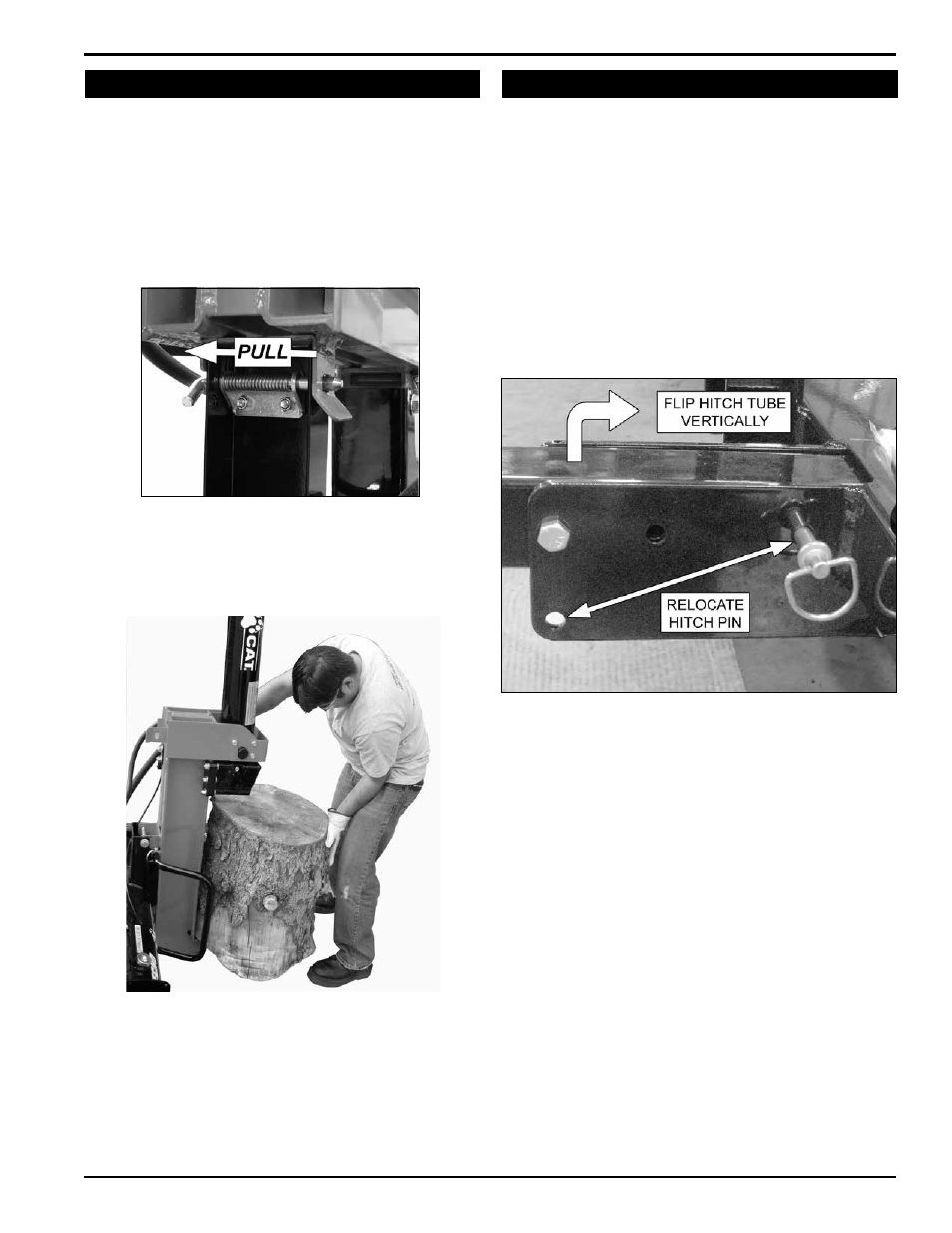

4.8 vErTicaL oPEraTion

The main beam of the log splitter can be flipped vertically

to split wood. Perform the following steps for vertical

operation:
1. Turn the engine off.
2. Adjust the support leg to the highest position or

remove.

3. Pull the spring-loaded pin located under the main beam.

4. lift the base of the hydraulic cylinder to flip the main

beam into vertical position.

5. Resume normal operation.

4.9 SToragE modE

The log splitter can be adjusted for storing in tight spaces.

Perform the following steps to transform the machine into

storage mode:
1. Turn the engine off.
2. Flip the main beam into vertical position (see

Section 4.7).

3. Remove the hitch pin from the hitch channel and

hitch tube. Flip the hitch tube into vertical position

(see below).

4. Secure the hitch tube in the upright position by installing

the hitch pin in the hole below the 3/8" hitch bolt.

When splitting logs in the vertical position, stablize the log

before engaging the control. Split as follows:
1. Place log on the end plate and turn until it leans against

the beam and is stable.

2. When splitting extra large or uneven logs, the log must

be stablized with wooden shims or split wood between

the log and end plate or ground.
