9

LOG SPLITTER

OPERATION

1. Adjust the support leg so that the log splitter cutting

area sits horizontally.

2. Ensure the engine is running at full RPM before

attempting to split wood.

3. Select a log no more than 24 inches (61 cm) in length

to split. The log should be free from foreign materials.

Both ends of the log must be cut square.

4. grasp the log by the sides and place it in the cutting

area. Center the log on the beam. Do not attempt to

split wood against the grain.

5. Stand behind the cutting area on the control lever side

of the log splitter.

6. using your hand, push the control lever toward the

cutting area. Keep all body parts clear of the cutting

area while the splitting wedge is in motion.

7. Hold the control lever in the forward position until either

the log is split or the ram has reached its full extension.

If the log starts to split in an undesired fashion, reverse

the ram, reposition the log and try again.

8. Pull the control lever back to the reverse position. The

lever will automatically return to the neutral position

when the cylinder is fully retracted. Keep all body parts

clear of the ram while it retracts.

9. Remove the split pieces and repeat the steps above

with a new log.

4.7 oPEraTing ThE Log SPLiTTEr

Warning

Keep all body parts away from the cutting area while the

splitting wedge is in motion.

cauTion

Obtain and wear safety glasses at all times when

operating the machine.

Do not wear loose fitting clothing.
The operator should always wear heavy boots, gloves,

and pants.

Warning

Read and follow all safety instructions in this manual.

Failure to operate the machine in accordance with

the safety instructions

maY rESuLT in PErSonaL

inJurY!

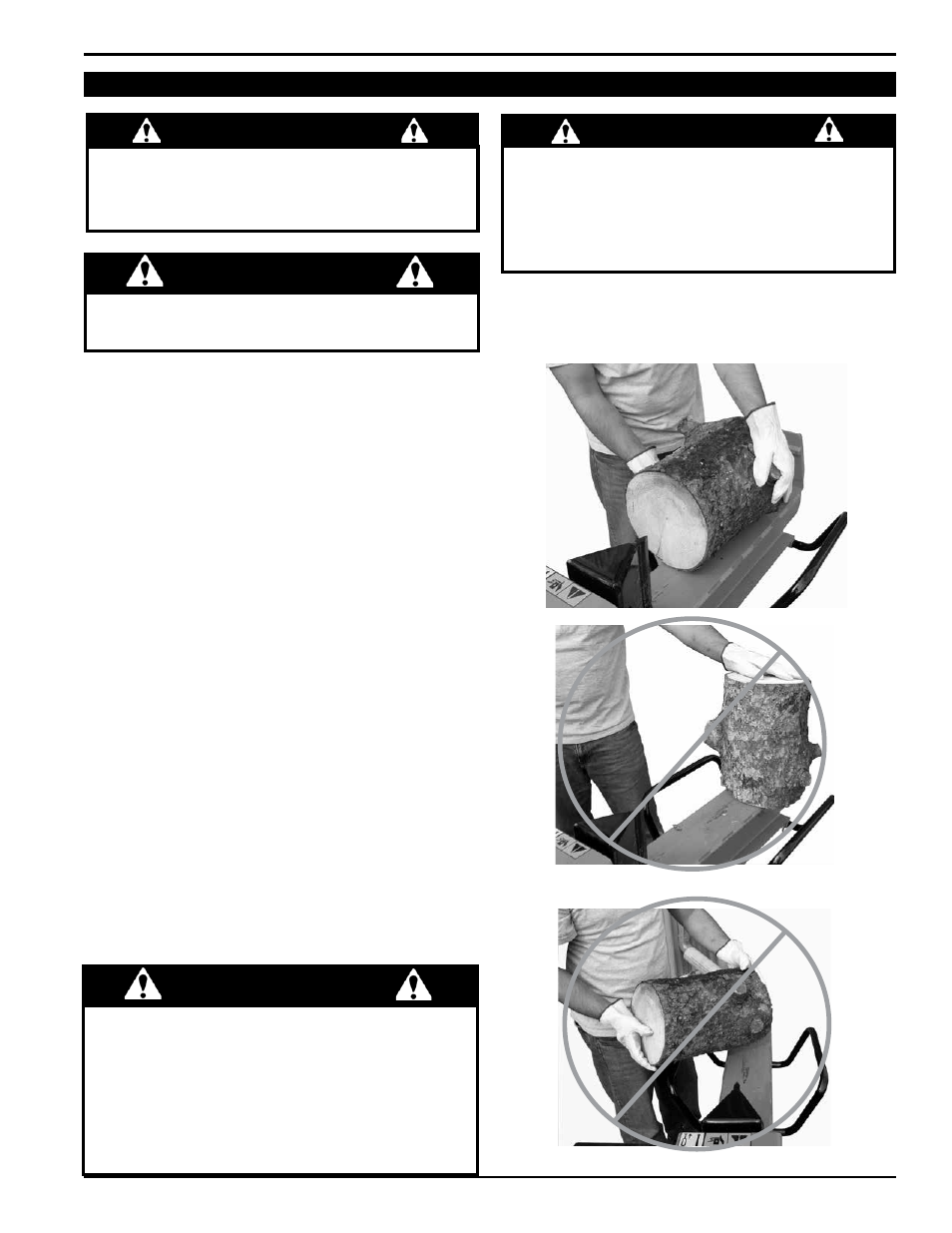

Warning

Do not place your hands on the ends of the log when

loading the log splitter. If necessary, you may support

the log on the main beam by placing your hand on the

side of the log.

do not place your hand between the

log and splitting wedge. Only support the log with your

hand until the splitting wedge makes contact with the log.

Then, remove your hand from the cutting area, stand

clear and resume operation.
