Truck Loader Owner’s Manual

4

Section

Assembly

2

Your truckloader arrives partially assembled. Perform the

steps in this section to assemble your truckloader.

2.1 ASSEMBLING THE MACHINE

1. Remove the truckloader from the shipping crate.

2. Raise the truckloader using a hoist or jack.

3. Attach the Hitch (Section 2.2).

4. Attach the Wheels (Section 2.3).

5. Attaching the Vacuum Hose to the Hose Support (Sec-

tion 2.4).

6. Installing the Battery (Section 2.6)

IMPORTANT

DO NOT ATTEMPT TO START THE ENGINE AT

THIS TIME. Wait until you have read the complete

Owner's Manual.

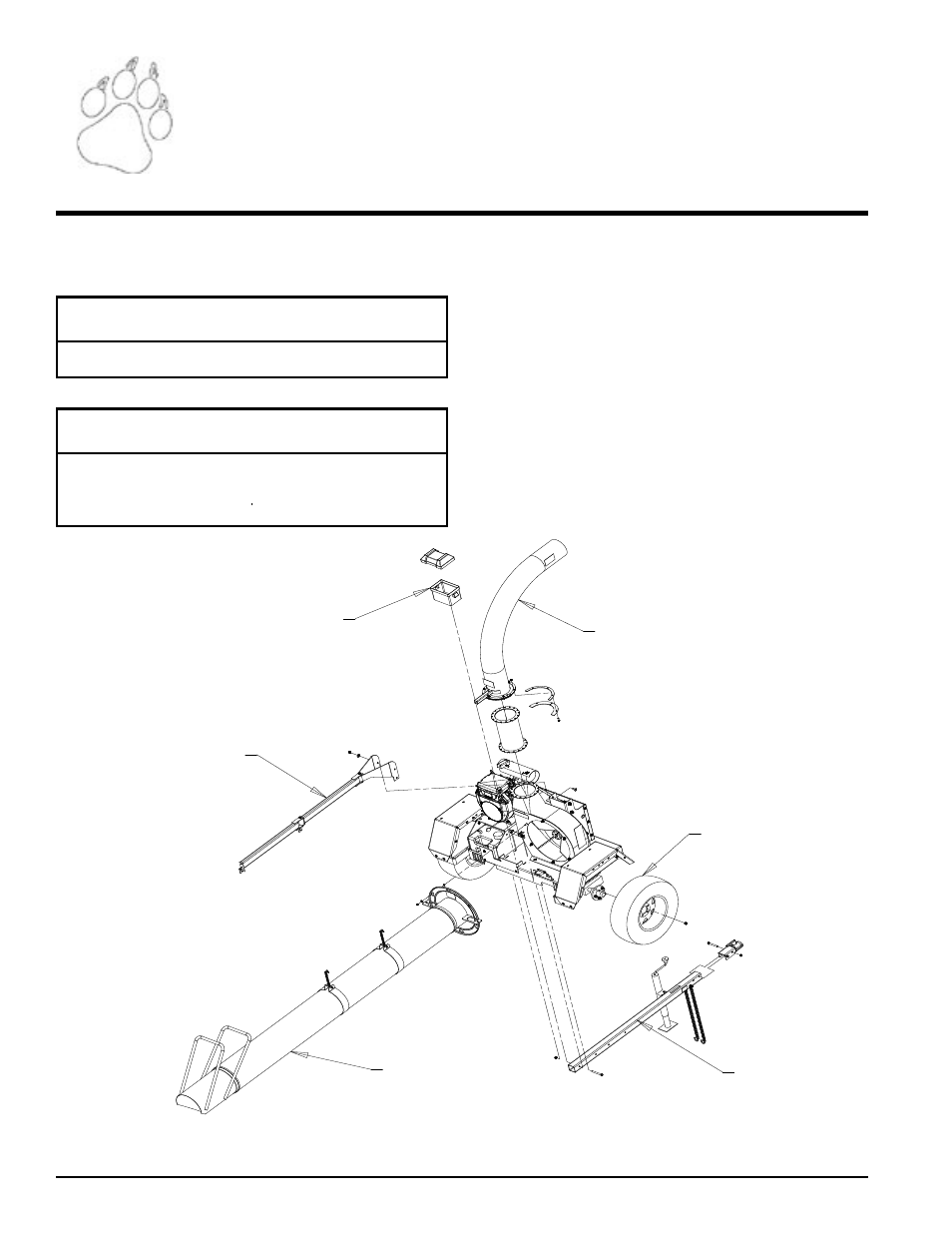

Figure 2.1 - Truckloader Assembly

HOSE ANCHOR

VACUUM HOSE

HITCH

TRAILER WHEELS

BLOWER DISCHARGE TUBE

BATTERY

NOTE

REFER TO THE PARTS BOOK DURING ASSEMBLY
