14

WARNING

Saw Chain is sharp! Always wear gloves when handling assembly,

otherwise serious personal injury may result.

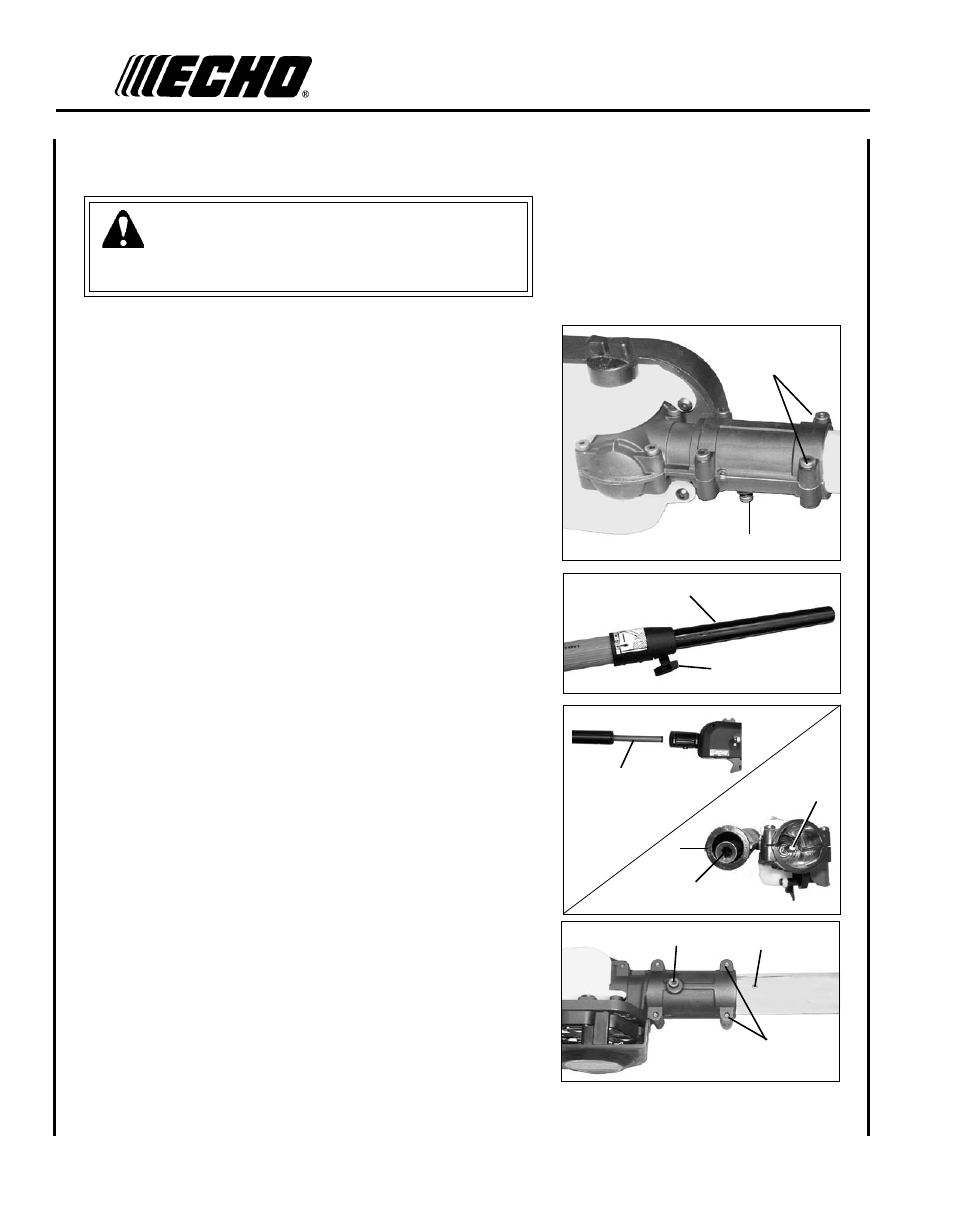

1. Loosen the two (2) screws (C) and locator screw (D) on cutting

attachment.

2. Loosen clamp knob (E) turning counter clockwise.

3. Pull upper tube (F) out of fiberglass lower tube 127-152 mm (5-6

in.), then slide (F) back into fiberglass lower tube exposing inner

drive shaft (G). Align and join star shaped drive end of inner drive

shaft (G) with cutting attachment shaft (H).

4. Align ridges (J) on upper tube with seams in cutting attachment.

5. Slide together, aligning locator screw (D) in cutting attachment

with locating hole (I) in upper tube.

6. Tighten locator screw (D). Tighten two (2) cutting attachment

screws (C).

7. Extend upper tube to desired length. Tighten clamp knob (E) turn-

ing clockwise.

d

c

cuttIng

attachment

to

drIve

shaft

InstallatIon

c

I

G

H

G

E

F

J

d
