H
edge
C
lipper
O
peratOr
'
s
M
anual
9
c
ontents

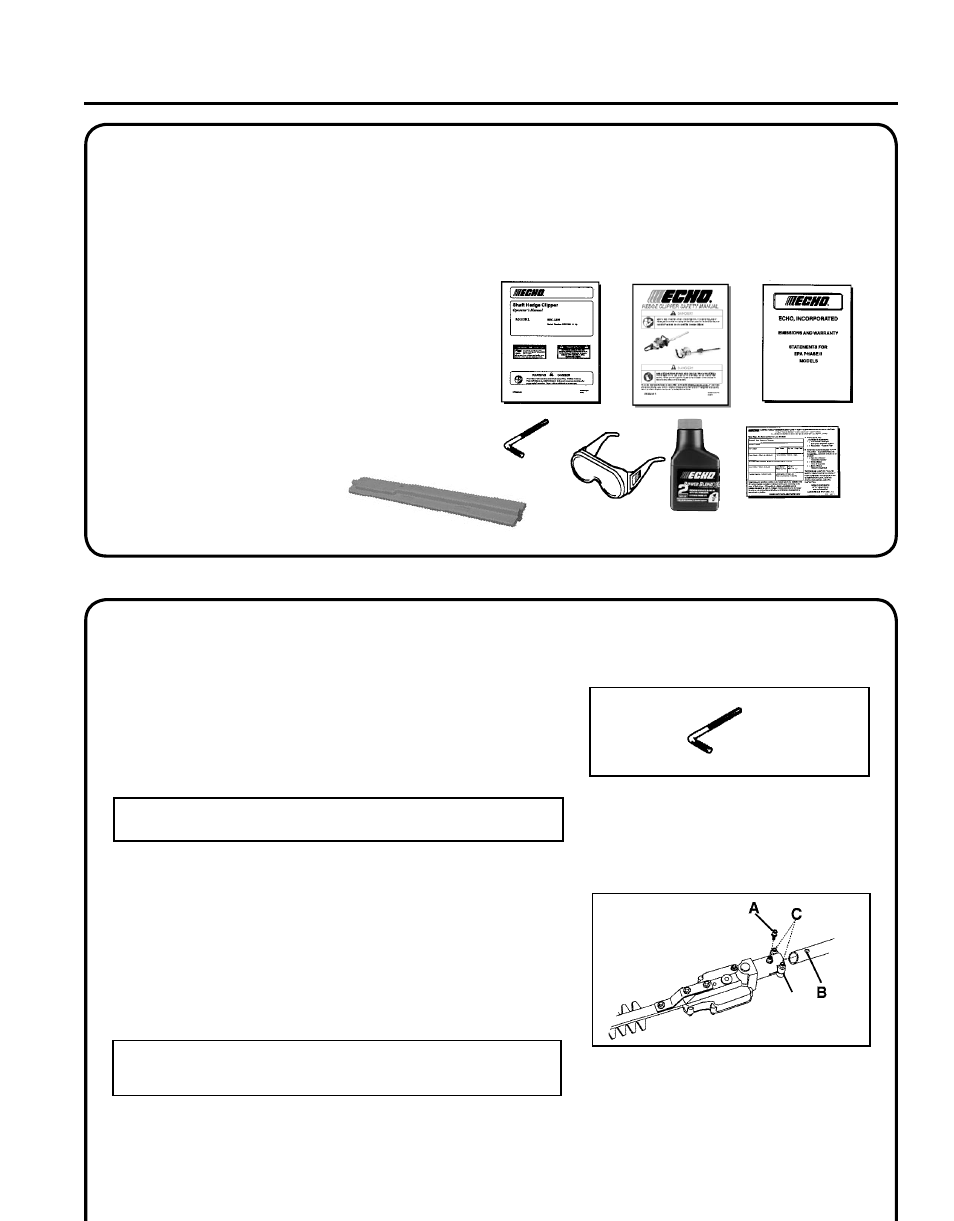

The ECHO product you have purchased has been factory pre-assembled for your convenience.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
____ 1 - Power Head/Driveshaft/Hedge Clipper Assembly
____ 1 - Operator's Manual
____ 1 - Hedge Clipper Safety Manual
____ 1 - Warranty Statement
____ 1 - Warranty Registration Card
____ 1 - Echo Power BlendX TM 2-stroke oil sample
____ 1 - Torx T27 L-Wrench (225 Model Only)
____ 1 - Safety Glasses
____ 1 - Blade Cover
a
ssembly
225 Model Only
Tools Required: Torx T27 L-Wrench
Parts Required: Drive Shaft Assembly and Gear Housing Assembly.
Gear housInG assembly
/
drIve shaft
NOTE
Hedge Clipper Blades are very sharp. Wear gloves to protect hands.
1. Remove vinyl cap fron drive shaft.
2. Fully loosen (do not remove) locating bolt (A) and align the locat-
ing bolt (A) with the locating hole (B) in the Drive Shaft Housing.
3. Slide the Gear Housing Assembly on the Drive Shaft. Be certain
the Flex Drive Shaft engages the hole in Drive Gear.
4. Tighten bolt (A) and clamping bolts (C).
IMPORTANT
Flat edge of washers (D) must be against drive shaft.
D
