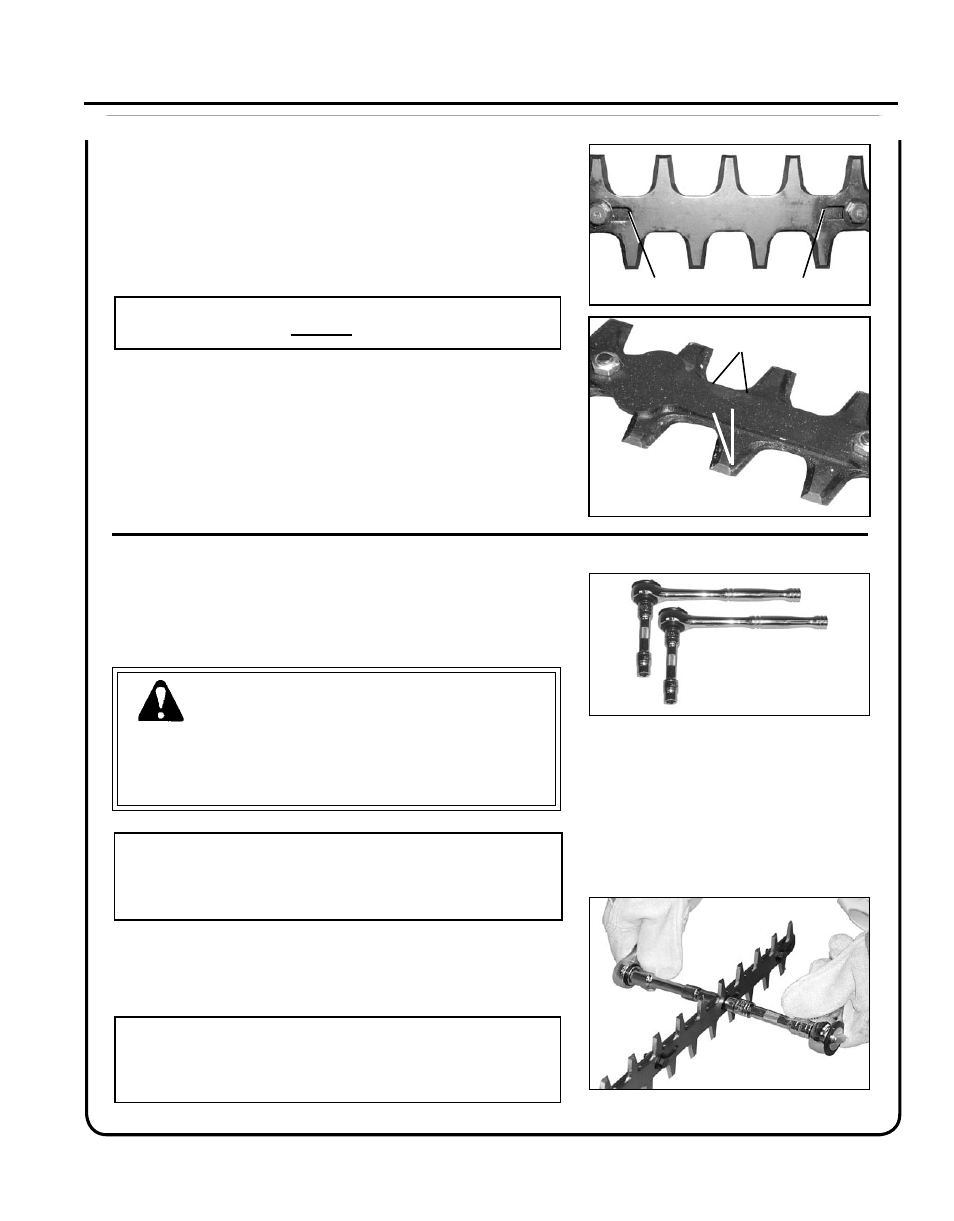

1. Disconnect spark plug wire from spark plug.
2. Slide blades to allow file clearance using slots (A) on bottom of
blades. Do not pry against cutting edges.
3. Follow the original shape, and file each cutting edge carefully to
avoid damage to adjacent teeth. Maintain 6 mm (.25 in.) radius at
base of each tooth.
IMPORTANT
If a power grinder is used, DO NOT allow blade to over heat.
4. Lubricate blades. See "Lubrication".
5. Connect spark plug wire.
45
º
A A
6mm (.25 in.) Radius
blade adjustment
Level 2.
Tools required: (2) 10 mm Sockets and Extensions
Parts required: None
WARNING
Hedge clipper blades are very sharp. Touching them may lead to
severe personal injury. Use a socket and extension when adjust-
ing blade bolts or blade locknuts in order to keep hands at a safe
distance from sharp blades.
IMPORTANT
Blades should only be removed and reinstalled by an Authorized
ECHO Servicing Dealer, otherwise premature wear or internal
damage may occur.
1. Tighten blade bolts until snug, then loosen blade bolts 1/2 turn.
2. Hold blade bolts from turning using 10 mm socket, and tighten
blade lock nuts with other 10 mm socket.
NOTE
Locking ability of Hedge Clipper blade lock nuts will diminish
each time they are removed. Replace if turning resistance is not felt
when installing locknuts.
