5 INCH CHIpper

Section

2

aSSEmbLY

Mount the feed chute to the chipper housing using six (6) 3/8 x 1-1/4" carriage bolts, 3/8" washers, and 3/8" nylock nuts

1.

(see Figure 2.1).
Secure the chute support to the chipper leg stand with one (1) 3/8 x 2-3/4" bolt, one 3/8" washer, and one 3/8" nylock nut

2.

as shown in Fig. 2.1.
Secure the other end of the chute support by removing the middle bolt holding the feed chute to the hinge (shown in Fig

3.

2.1 insert). Put the support bracket end between the washer and the hinge, and then retighten the bolt and nut.
Connect the three wires coming from the feed chute to the connectors that are located underneath the feed roller.

4.

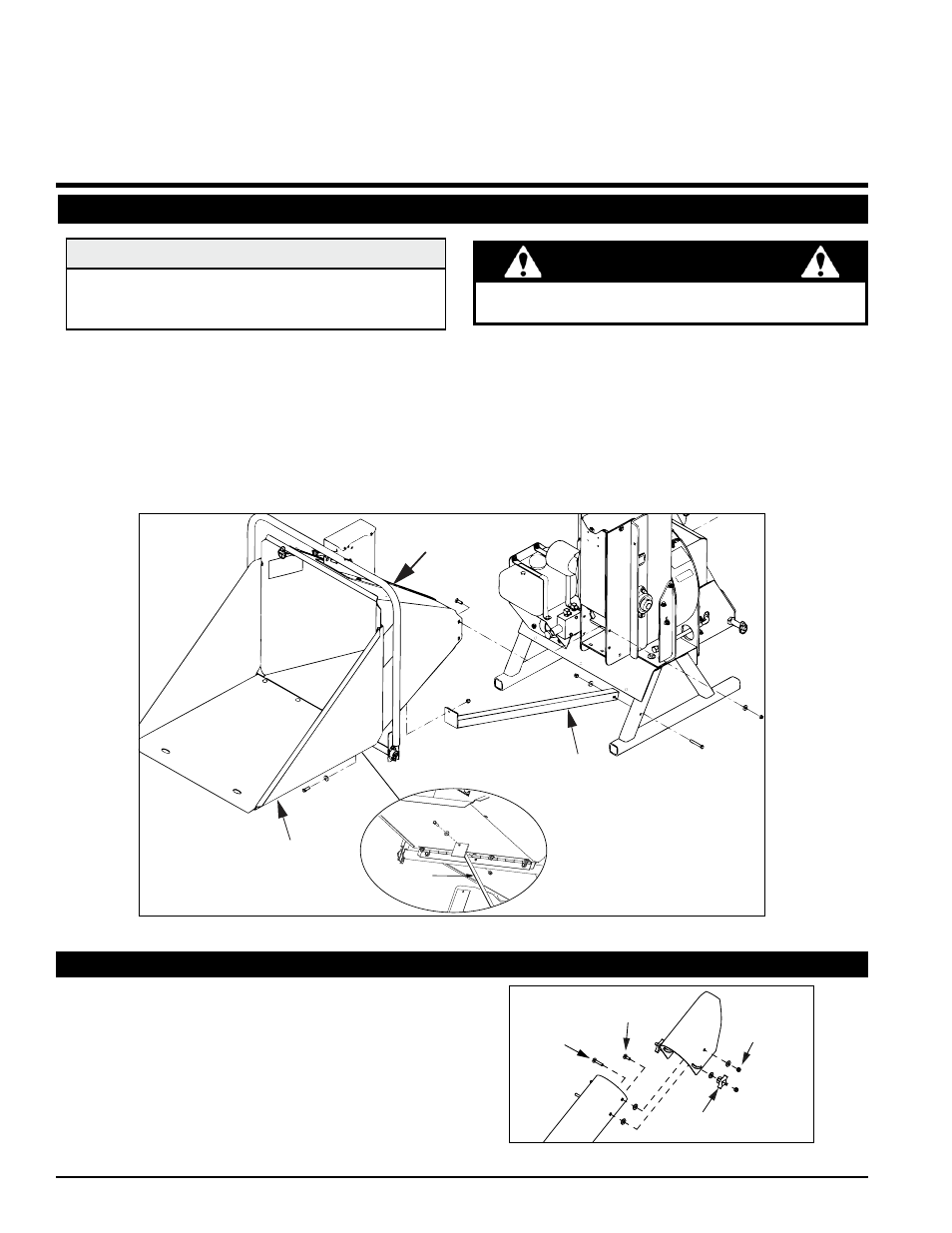

2.1 aTTaCH CHuTE aNd SuppoRT

FEED CHUTE

EXTENSION

FEED

CHUTE

SUPPORT

BRACKET

FEED CHUTE

EXTENSION

FEED

CHUTE

CHUTE

SUPPORT

Figure 2.2 Attach the chipper chute and chute support

5/16 x 1”

BOLT

5/16 x 1-3/4”

BOLT

5/16”

NYLOCK

NUT

DEFLECTOR

KNOB

3/8 X 1-1/4”

HEX BOLT

3/8”

NYLOCK

NUT

2.2 aTTaCH dISCHaRGE TubE dEFLECToR

Figure 2.1 Attach the discharge tube deflector

Attach the deflector to the discharge tube with (2) 1-3/4"

bolts, (2) 1" bolts, (2) deflector knobs, (4) 5/16" nylock nuts,

and (8) 5/16" washers as shown in Figure 2.2.

WaRNING

If any bolts or nuts are dropped in the machine, be

sure to remove them before starting the machine.

NoTE

If forward and reverse feed positions are reversed when

you power up the machine, you may have plugged the

connectors into the wrong plug.
