10 8 INCH TURNTABLE CHIPPER
Section

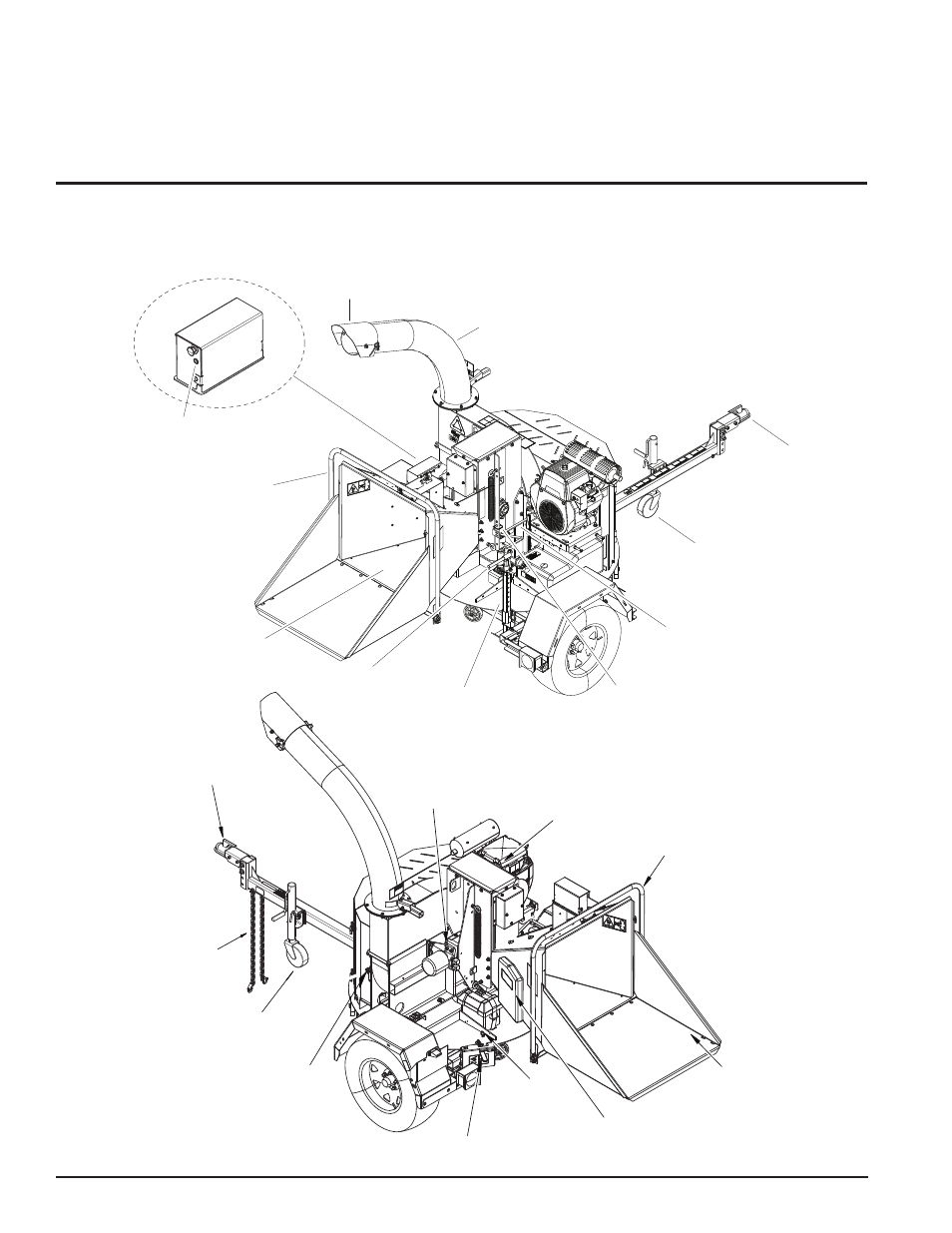

FEATURES & CONTROLS
Understanding how your machine works will help you achieve the best results when using your chipper. The following
descriptions define the features and controls of your machine.
REFER TO ENGINE OWNER'S MANUAL FOR FURTHER ENGINE OPERATING INSTRUCTIONS.
3
CONTROLLER
LIGHT
SAFETY
CHAINS
FEED ROLLER
SPEED CONTROL
TURNTABLE
BRAKE
TRANSPORT
SAFETY PIN
MANUAL
CONTAINER
CHUTE
EXTENSION
TRAY
FEED ROLLER
CONTROL BAR
ENGINE
THROTTLE
DISK LOCK
HITCH
JACK
2" COUPLER
DISCHARGE TUBE
DISCHARGE CAP
COUPLER (51MM)
(CE COMPLIANT MODELS)
HITCH JACK
ENGAGEMENT
HANDLE
FEED ROLLER
SNAP PIN
REAR
STABILIZER
FEED ROLLER
JACK LIFT
FEED CHUTE
SAFETY BAR (CE
COMPLIANT MODELS)
TURNTABLE
BRAKE
FEED ROLLER
SPEED CONTROL
TRANSPORT
SAFETY PIN
ENGINE THROTTLE
CHUTE
EXTENSION
TRAY
MANUAL
CONTAINER
FEED ROLLER
CONTROL BAR
DISK LOCK
COUPLER (2”)
SAFETY
CHAINS
JACK
STAND
