Instruction Sheet

InSTALLIng ThE SOLEnOID

CArTrIDgE VALVE

Model 76824 requires the installation of a cross over valve

and hoses. Cross over valve (12820) comes complete with

a solenoid cartridge.

Remove outer plug (using 5/16" allen wrench) from the

1.

top of the valve manifold.
Once the outer plug has been removed, using a 3/16

2.

allen wrench, extract the inner plug located in the relief

valve (Figure 3).

InSTALLIng ThE SEnSOr

Secure the sensor bracket with the lower left bearing

1.

bolt and position it (the sensor) so it aligns with the set

bolt (Figure 5).

POSITIOnIng ThE SEnSOr

Position the sensor approximately 1/16” - 1/8” from the

1.

head of the bolt (Figure 6).
Replace the Belt guard weldment using 5/16”

2.

hardware.

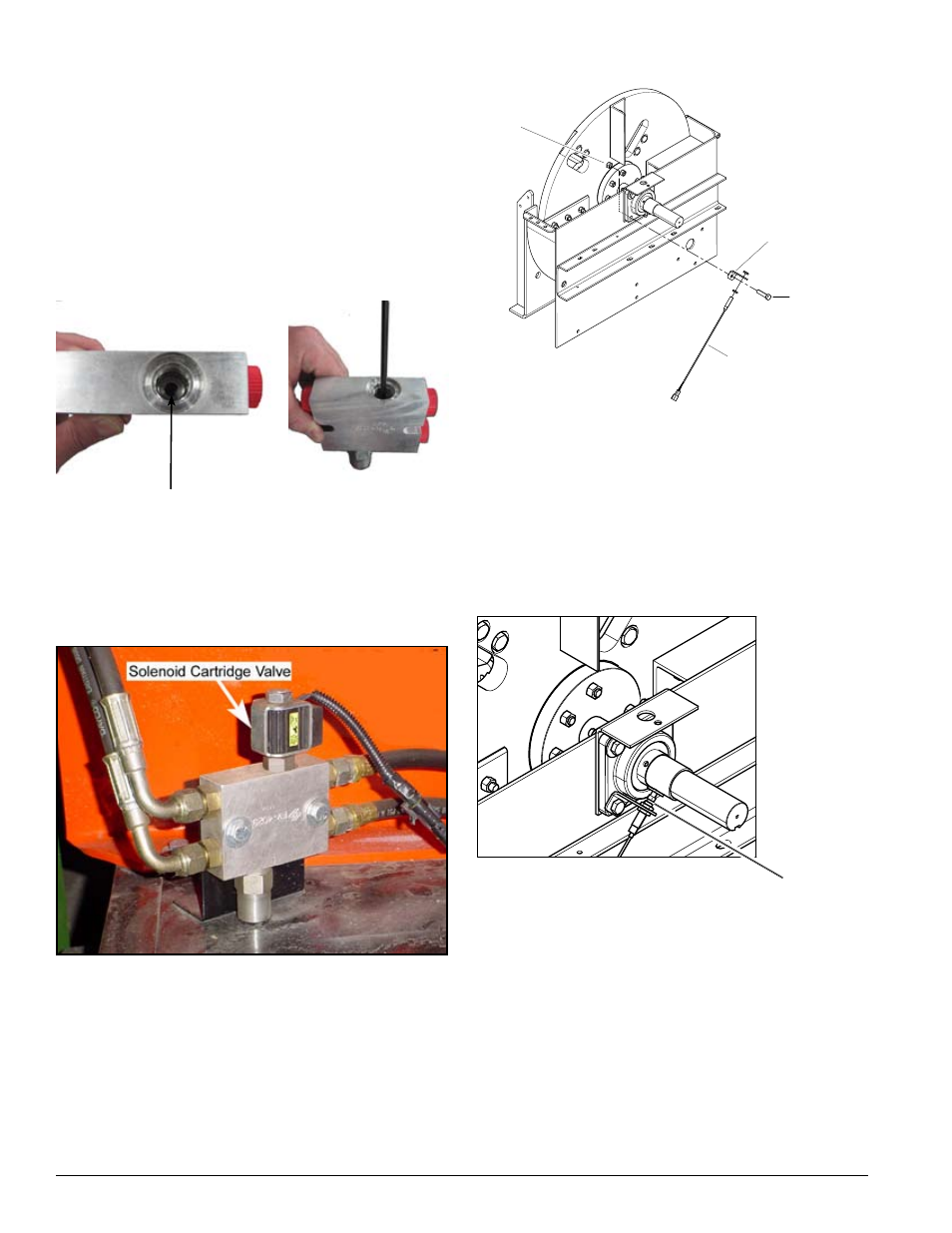

Figure 5

Figure 4

Figure 6

SENSOR

BOLT, 1/2 X 2 HEX

SENSOR BRACKET

NUT, 1/2 CENTERLOCK

1/8" - 1/16"

GAP

Figure 3, 3/16" inner plug

Replace the removed components with the new sole-

3.

noid cartridge valve and coil.
Connect solenoid wiring to LOFA Control wiring har-

4.

ness (Figure 4).
