Instruction Sheet
14.29"
Ø .34
.9"

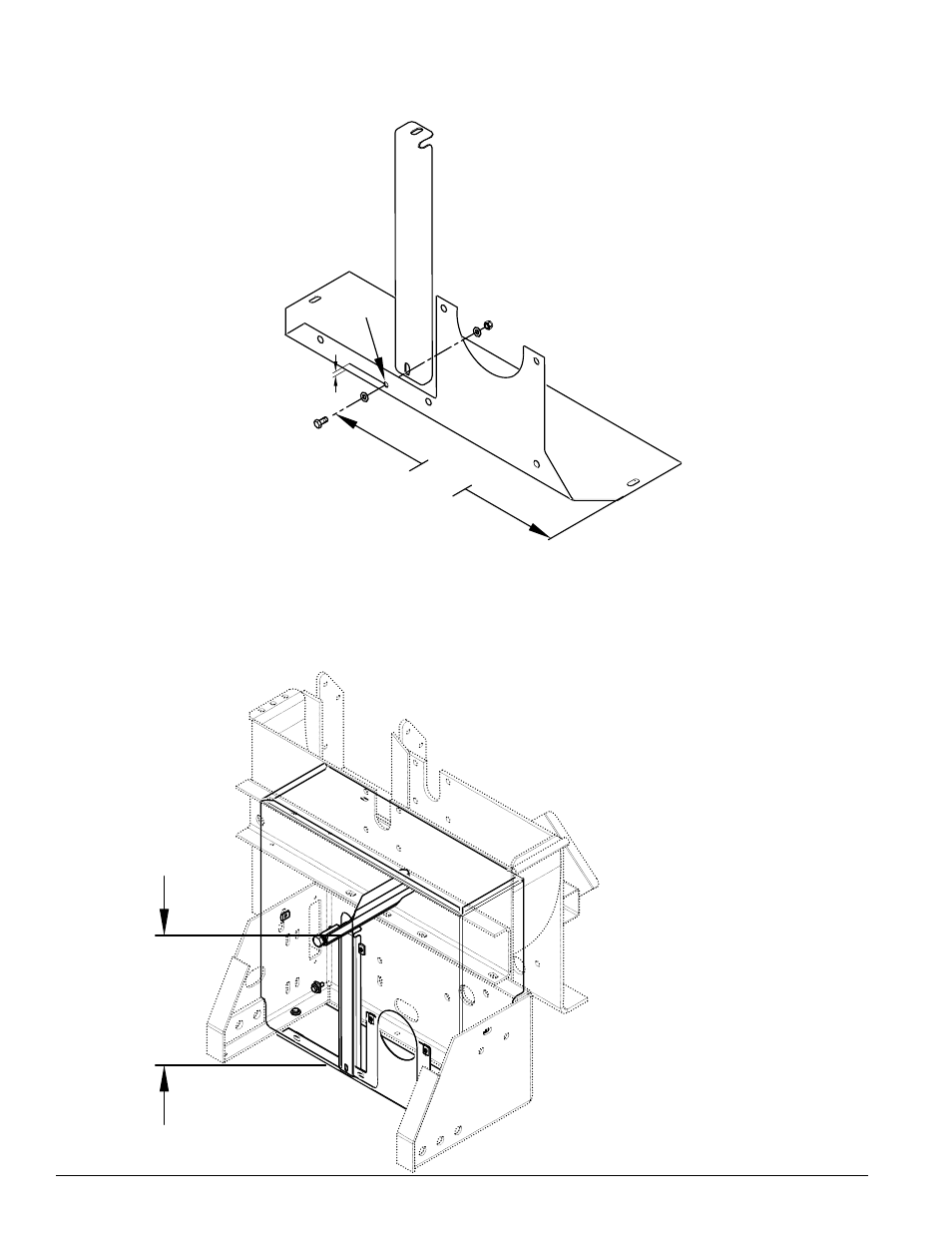

ATTACh BRACE TO LOWER GUARD
1. On the Lower Belt Guard, drill a hole that is 0.34" in diameter. The hole must be located 14.29" from the outside
edge of the guard and 0.9" in from the bottom of the guard to the middle of the hole (see below).
2. Attach the Brace Slot Cover Guard to the Lower Belt Guard by bolting it to the Lower Guard.
CLEARANCE
From the bottom of the Brace you should have a
clearance of 15.31"
15.31"
