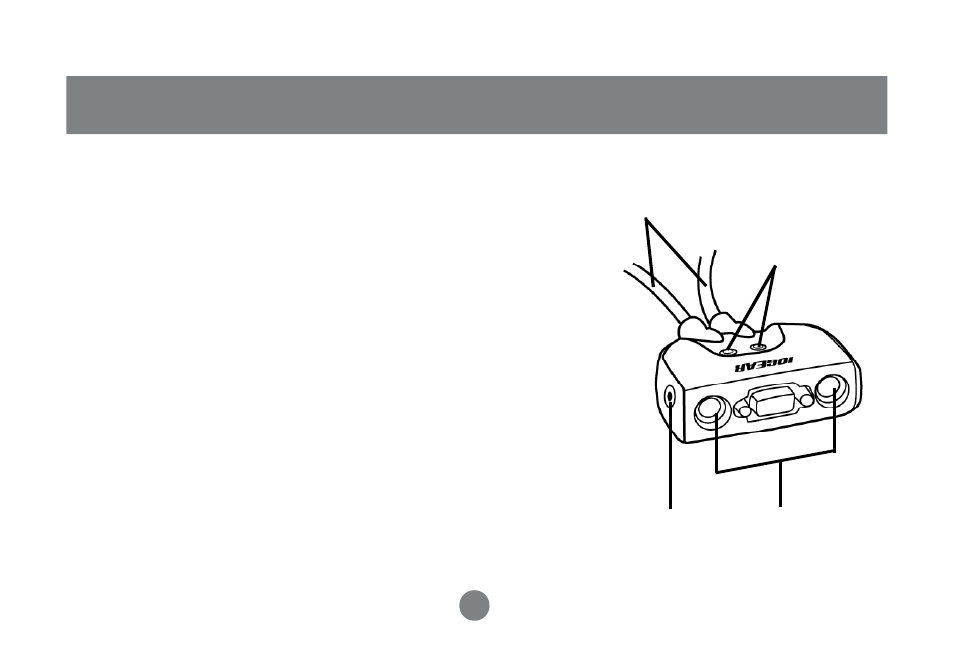

1. KVM Cables
These 3-in-1 cables connect to the USB, video, and
audio ports on the computers you are installing.
2. Port LEDs
A LED lights to indicate its corresponding port is the one
that has the KVM focus. Depending on the port’s status,
the LED may flash according to a specific pattern.
3. Speaker Jack
The cable from your speakers (optional) plugs in here.
4. Console Ports
Your keyboard, monitor, and mouse, plug in here. Each
port is marked with an appropriate icon to indicate itself.
1
2
3 4
