SIZE: DRAWN BY:
B
100 ENTERPRISE DRIVE
PITTSBURGH, PA 15275
PHONE: (412) 249-4100
FAX: (412) 249-4101
EMAIL: www.beasensors.com
REV BY:
JED
80.0274.01
SCALE: DATE:
NONE 05/17/2007
PART NO:
SHEET
1 OF 1

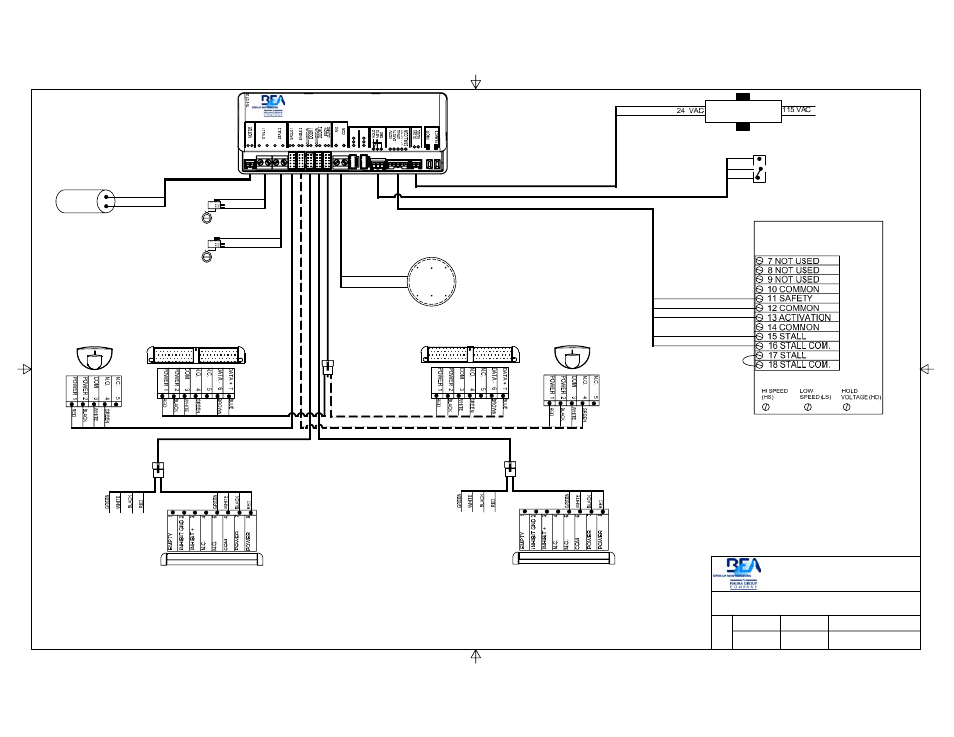

TITLE: BESAM SWINGMASTER 300/400
ETIK CONTROL W/LO-LINX-LITE
NOTES:
1. LO-LINX MOTOR HARNESS CONNECTION IS TIED IN PARALLEL TO EXISTING MOTOR LEADS OF 1 MOTOR ONLY. NO RESPECT TO POLARITY IS REQUIRED.
2. EXTERNAL SWITCHES (OR "B" SWITCHES) ARE REQUIRED IF INHIBIT DESIRED AT SWING SIDE SUPERSCANS, SWITCH OPENS UPON INHIBIT POINT.
3. THE KNOWING ACT SWITCH IS CONNECTED AT THE AUX INPUT AND CAN BE ANY DRY CONTACT DEVICE SUCH AS A PUSHPLATE, CARD READER, ETC.
THE AUX INPUT IS REQUIRED FOR ALL INITIAL ACTIVATION WHEN FUNCTION FA ON THE LO-LINX IS SET TO '01'.
4. SET LO-LINX FUNCTION "FS" TO 01.
5. THE SECOND BODYGUARD AND EAGLE ARE PRIMARILY USED IN DUAL-EGRESS APPLICATIONS. IF A SECOND BODYGUARD IS REQUIRED, USE A "Y" HARNESS (20.5083).
IF AFTER TROUBLESHOOTING A PROBLEM, A SATISFACTORY SOLUTION CANNOT BE ACHIEVED, PLEASE CALL B.E.A., INC. FOR FURTHER ASSISTANCE DURING EASTERN STANDARD TIME @ 1-800-523-2462 FROM 8AM - 5PM. FOR AFTER-HOURS, CALL EAST COAST: 1-866-836-1863 OR 1-800-407-4545 / MID-WEST: 1-888-308-8843 /
WEST COAST:1-888-419-2564. DO NOT LEAVE ANY PROBLEM UNRESOLVED. IF YOU MUST WAIT FOR THE FOLLOWING WORKDAY TO CALL B.E.A., LEAVE THE DOOR INOPERABLE UNTIL SATISFACTORY REPAIRS CAN BE MADE. NEVER SACRIFICE THE SAFE OPERATION OF THE AUTOMATIC DOOR OR GATE FOR AN INCOMPLETE
SOLUTION.WEB: WWW.BEASENSORS.COM
Pre-wired
switch
assembly
LO-LINX
SETUP PWR TO CTRL BEAM TX RX SWITCH
AUX SENSORS MTR STALL
Patent Pending
EAGLE 1
24 V
TRANSFORMER
RED
RED
BODYGUARD 1
BLACK
RED
LO-LINX BODYGUARD
DUAL-EGRESS HARNESS
p/n: 20.5083
COM
N/O
LO-LINX SUPERSCAN HARNESS
p/n: 70.5071
EAGLE 2 BODYGUARD 2
LO-LINX SUPERSCAN HARNESS
p/n: 70.5071
MOTOR
-
+
BLACK
BLACK
RED
RED
SAFETY SIDE SUPERSCAN
APPROACH SIDE SUPERSCAN
NOT USED W/LO-LINX LITE
INDIVIDUALLY CAP OF UNUSED
WIRES AS THEY ARE HOT!
SAFETY SIDE SUPERSCAN
SEE NOTE #3 & 4
SEE NOTE #1
SEE NOTE #2
GREEN
BLUE
YELLOW
BROWN
WHITE
SEE NOTE #5
LO-LINX MOTOR HARNESS
p/n: 70.5076
LO-LINX
BODYGUARD
HARNESS
p/n: 70.5082
LO-LINX EAGLE HARNESS p/n: 70.5096
LO-LINX POWER HARNESS p/n: 70.5095
LO-LINX HOLD SWITCH HARNESS p/n: 70.5078
LO-LINX CONTROL HARNESS p/n: 70.5097
PUSH
TO OPEN
BESAM 300/400
(ETIK) CONTROL
HOLD OPEN
OFF
ON
RED
BLACK
WHITE
APPROACH SIDE SUPERSCAN
NOT USED W/LO-LINX LITE
INDIVIDUALLY CAP OF UNUSED
WIRES AS THEY ARE HOT!
TUC
