Accessories may be hot after
use. Avoid contact with skin
and use proper protective gloves or cloth to
remove.
To remove an accessory, pull the locking
sleeve backwards (towards the rear of tool),
while pulling the accessory outward (Fig. 6).
All accessories should be wiped clean after
removing.
Disconnect the plug from
the power source before
making any assembly, adjustments or
changing accessories. Such preventive
safety measures reduce the risk of starting the
tool accidentally.
The 11258VSR Rotary Hammer utilizes
“SDS” drill bits. The “SDS” system efficiently
transfers drilling torque and maximizes the
energy delivered per hammer blow.
Clean the insert shank end of the accessory
to remove any debris, then lightly grease with
a light oil or lubricant.

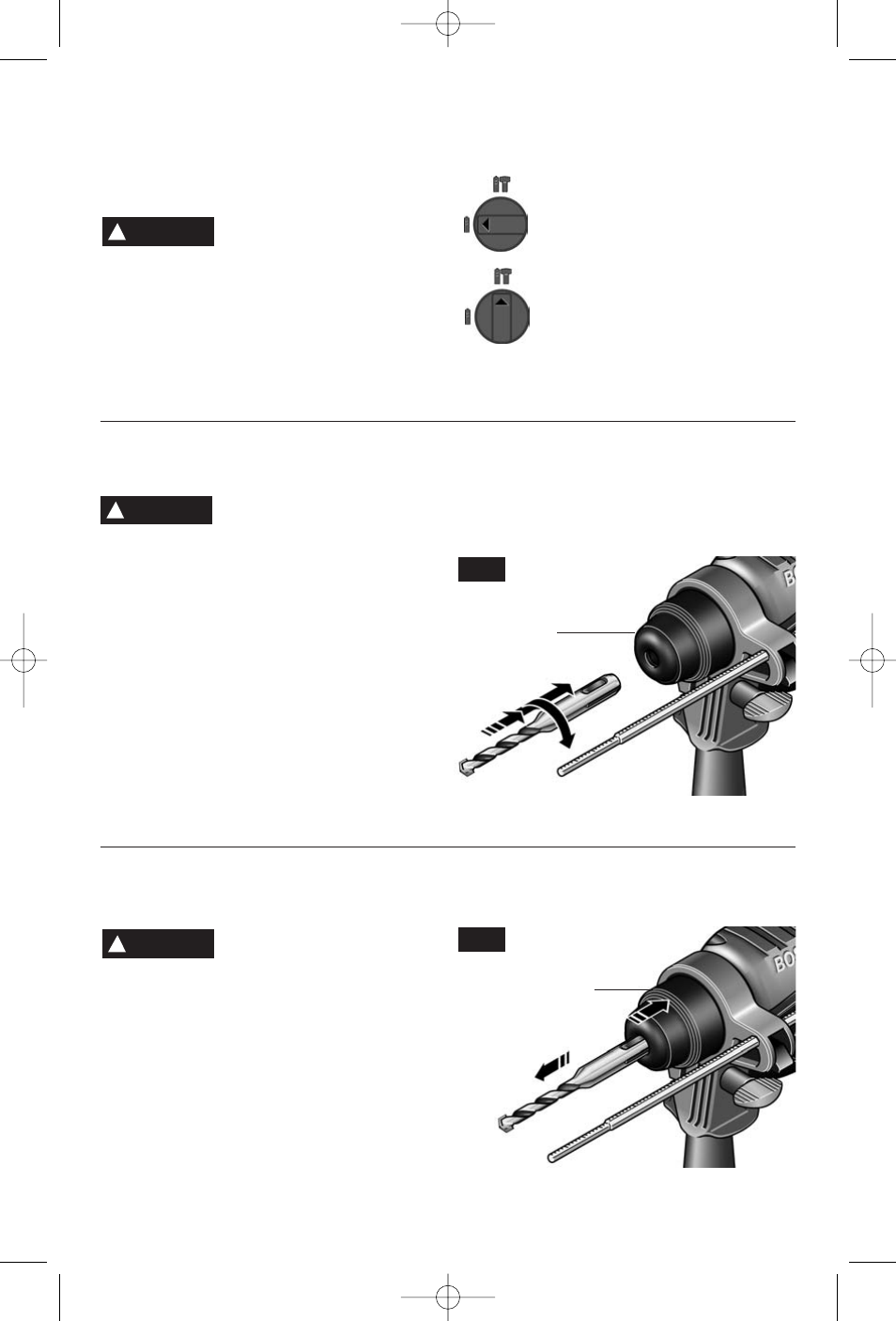

Insert accessory into the tool holder through
the dust shield, while twisting and pushing
inward until it locks automatically into place.
Pull outward on the accessory to be certain it
is locked into the bit holder (Fig. 5).
DUST SHIELD
-8-
The selector dial allows the tool to be set for
various drilling/hammer drilling applications.
Rotate the selector dial right or left
depending on the below applications (Fig. 1).
Do not operate the
selection dial until the tool
come to a complete stop. Shifting during
rotation of the chuck can cause damage to
the tool.
Do not use demolition or chipping bits such
as bull points, chisels, spades, gouges, etc.
Drill only action: For drilling in
woods, metals, plastics or other
non concrete materials.
Drill with hammer action: For
drilling in concrete, asphalt, tile or
other similar hard materials.
INSTALLING SDS-plus ® ACCESSORIES
! CAUTION
DRILL/HAMMER DRILL SELECTION DIAL
! WARNING
REMOVING SDS-plus ® ACCESSORIES
LOCKING
SLEEVE
! WARNING
FIG. 5
FIG. 6
