-6-
Functional Description and Specifications
Disconnect the plug from the power source before making any assembly,
adjustments or changing accessories. Such preventive safety measures
reduce the risk of starting the tool accidentally.
! WARNING
Rotary Hammer

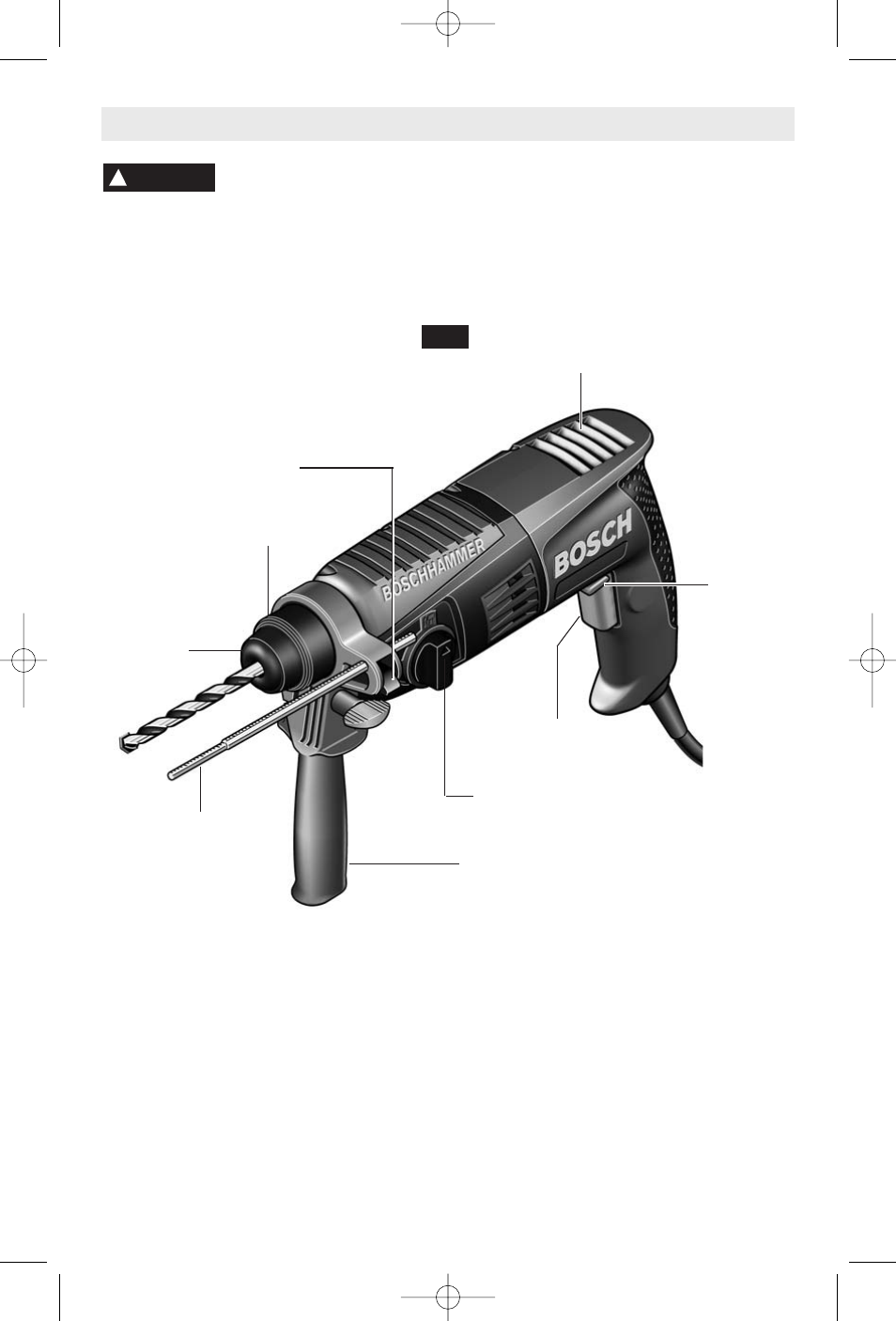

FIG. 1
Model number 11258VSR & 11258VSRC
Shank style SDS-Plus ®
Maximum Capacities:
Concrete 5/8"
Steel 1/2"
Wood 1-1/4"
NOTE: For tool specifications refer to the nameplate on your tool.
DUST
SHIELD
VENTILATION
OPENINGS
REVERSING
SWITCH
BUTTON
VARIABLE SPEED
TRIGGER SWITCH
DEPTH GAUGE
LOCKING
SLEEVE
DEPTH GAUGE
RELEASE LEVER
DRILL/HAMMER DRILL
SELECTION DIAL
AUXILIARY HANDLE
