SECTION 2 - SERVICE PROCEDURES
3120752 – JLG Lift – 2-15

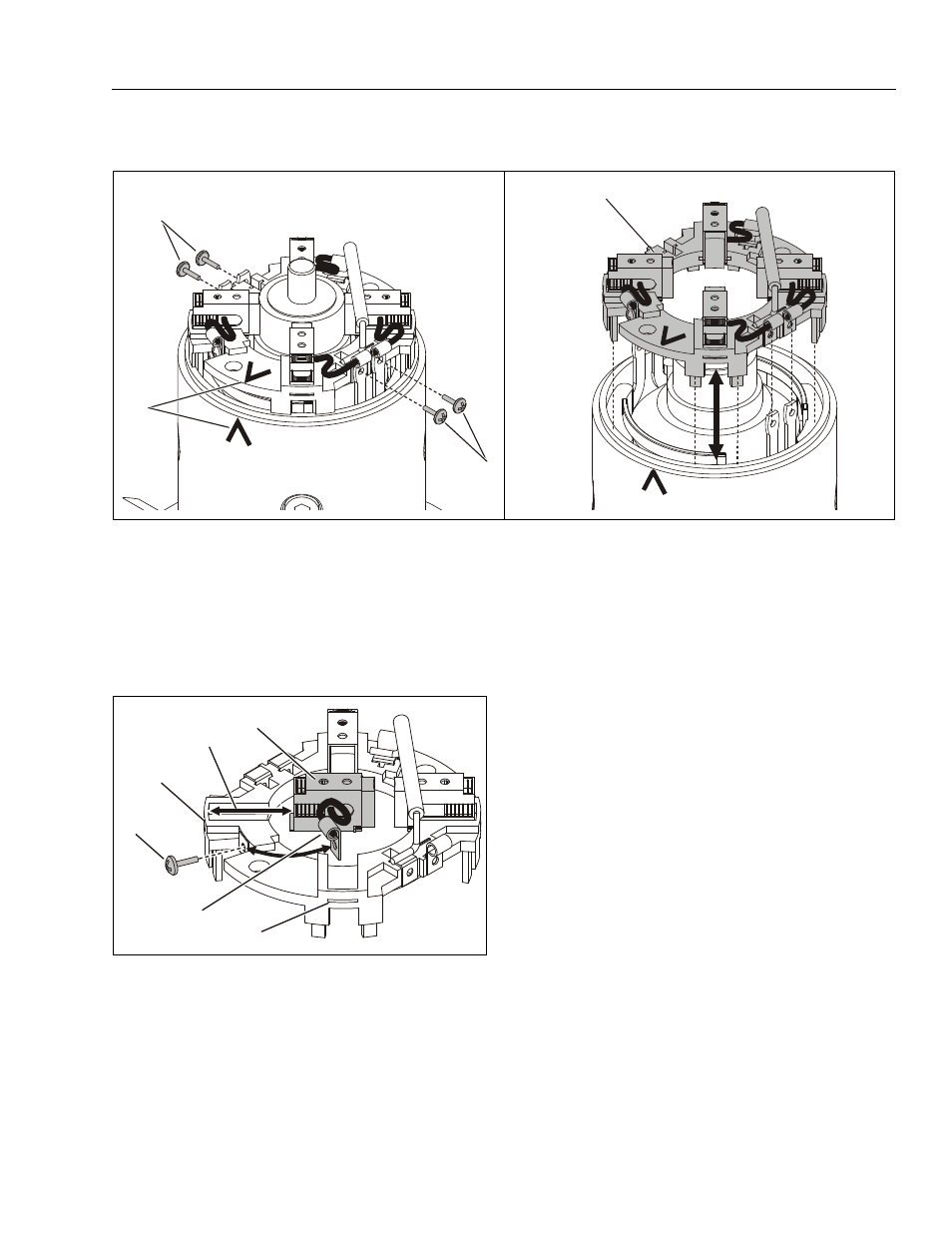

Brush Carrier Assembly - Remove/Install
Brush Assembly - Remove/Install
Brush Carrier Assembly - Remove/Install
1. Stator/Brush Carrier Screws (Pump Rear)
2. Stator/Brush Carrier Screws (Pump Front) (a) 3. Mark Brush Carrier Position on Motor Housing
4. Brush Carrier Assembly
NOTE: (a) Removed previously with motor cover disassembly (shown for reference only).
1
2
3
4
Brush Assembly - Remove/Install
1. Brush Assembly (a)
2. Brush Carrier Socket
3. Brush Tab Slot 4. Brush Terminal Screw
5. Brush Attach Terminal
NOTE: (a) Slide brush assembly into socket until tab is in slot at
rear of socket.
1
4
2
3
3
5
