Page 45
SECTION 3 - MACHINE CONTROLS AND INDICATORS
3121216
– JLG Lift –
3-7
Ground Control Indicator Panel
See Figure 3-3., Ground Control Indicator Panel (Prior to S/N 93233)
and Figure 3-4., Ground Control Indicator Panel (S/N 93233 to Present)
1.
Battery Charging Indicator
Indicates a problem in the battery or charging circuit and
service is required.
2.
Engine Oil Pressure Indicator
Indicates that engine oil pressure is below normal and ser-
vice is required.
3.
Engine Coolant Temperature (Ford and Isuzu) Indicator
Indicates that engine coolant temperature is abnormally
high and service is required.
1.
Battery Charging
2.
Engine Oil Pressure
3.
Engine Coolant Temp
4.
Engine Oil Temp
5.
Engine Malfunction
6.
Low Fuel
7.
Glow Plug
8.
Hyd. Filter Bypass
9.
Trans Filter Bypass
10. Engine Air Filter Bypass

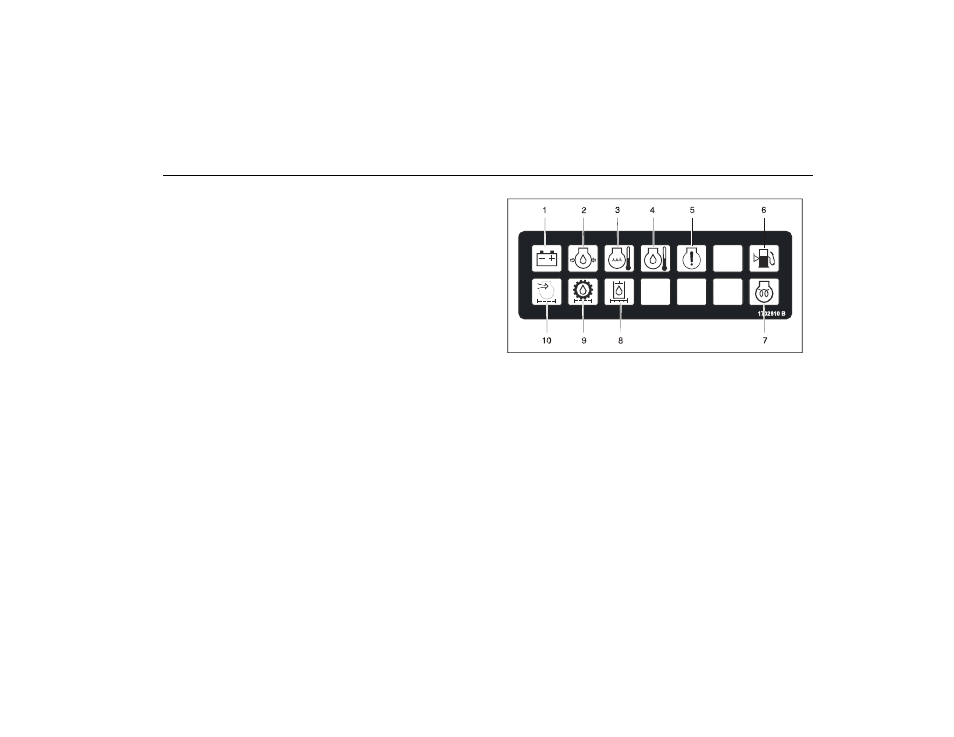

Figure 3-3. Ground Control Indicator Panel
(Prior to S/N 93233)
