JLG 266 LoPro Operator Manual - Manual (Page 99)

Section 5 - Attachments and Hitches
5-27 3126023

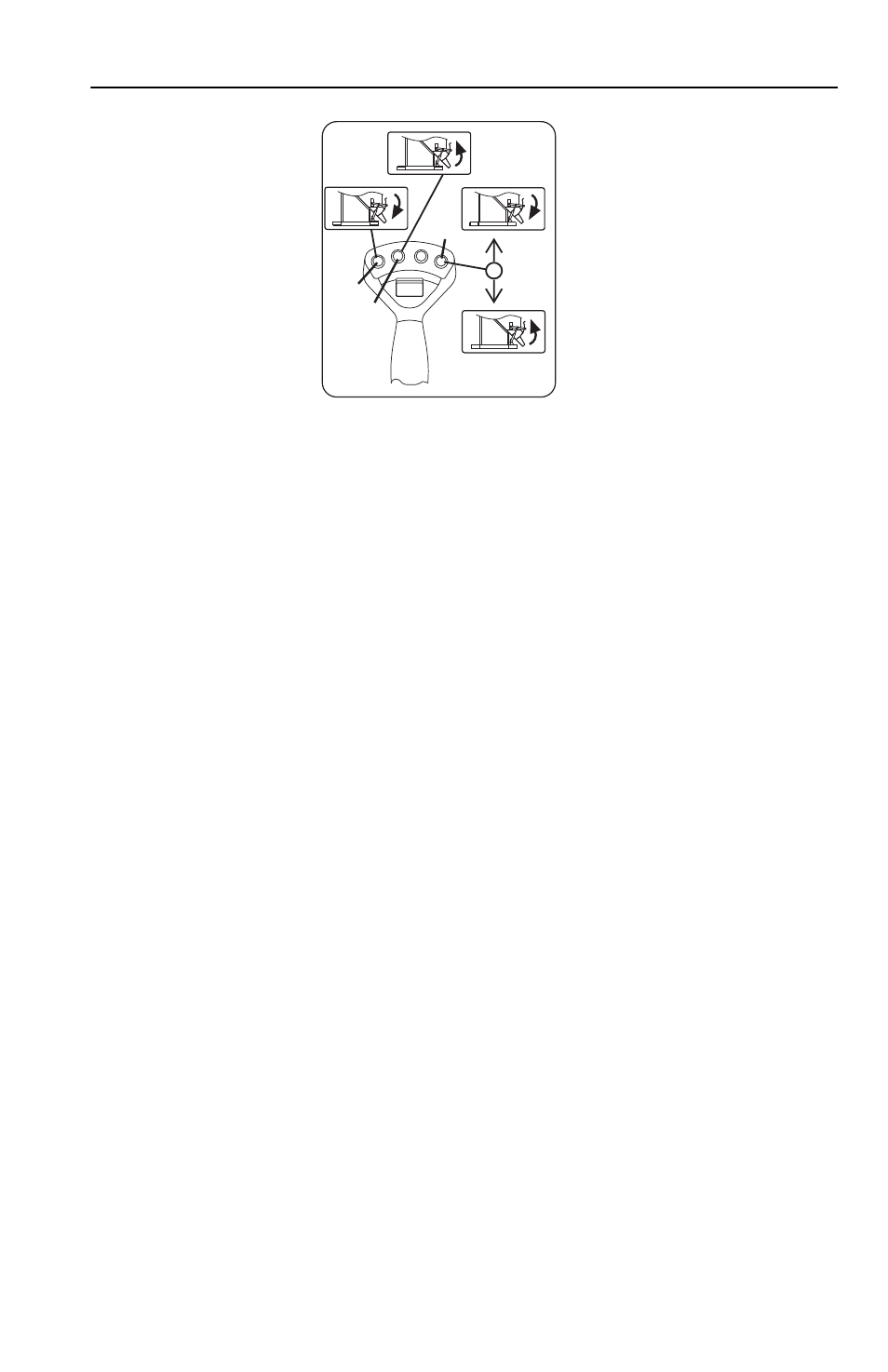

To open/close ladle gate:
Press and hold button (3) to close ladle gate or press and hold button (4) to open
ladle gate.
OR
While pressing and holding button (5), move joystick forward to close ladle gate or
move joystick back to open ladle gate.
Installation Procedure:
• Refer to “Attachment Installation” on page 5-7.
• Secure the concrete ladle to the forks by sliding the concrete ladle onto the
parent forks and install the retaining pin behind the vertical shank of the fork.
Operation:
• Close ladle gate, level ladle and fully retract and lower boom to load material.
• Distribute material evenly within the ladle. Capacity charts are for evenly
distributed loads only.
• Load center will vary depending on the amount of material in the ladle. Always
ensure compliance with the capacity chart.
• Travel in accordance with requirements set forth in Section 1 - General Safety
Practices.Position ladle and open ladle gate to release load.
OZ2581
3
4
5
