SECTION 3 - MACHINE CONTROLS AND INDICATORS
3121153 – JLG Lift – 3-3
Platform Control Station
(See Figure 3-3.)
1. EMERGENCY STOP SWITCH
A two position mushroom shaped switch furnishes power
to the platform controls when pulled out (ON). When
pushed in (OFF), power is shut off to the platform.
2. PLATFORM UP Button (WHITE)
When depressed simultaneously with ENABLE (GREEN)
button raises the platform.
3. FUNCTION ENABLE Button.
This (GREEN) button must be depressed simultaneously
with either the UP or DOWN platform function buttons in
order to raise or lower the platform.
4. PLATFORM DOWN Button (WHITE).
When depressed simultaneously with ENABLE (GREEN)
button lowers the platform.

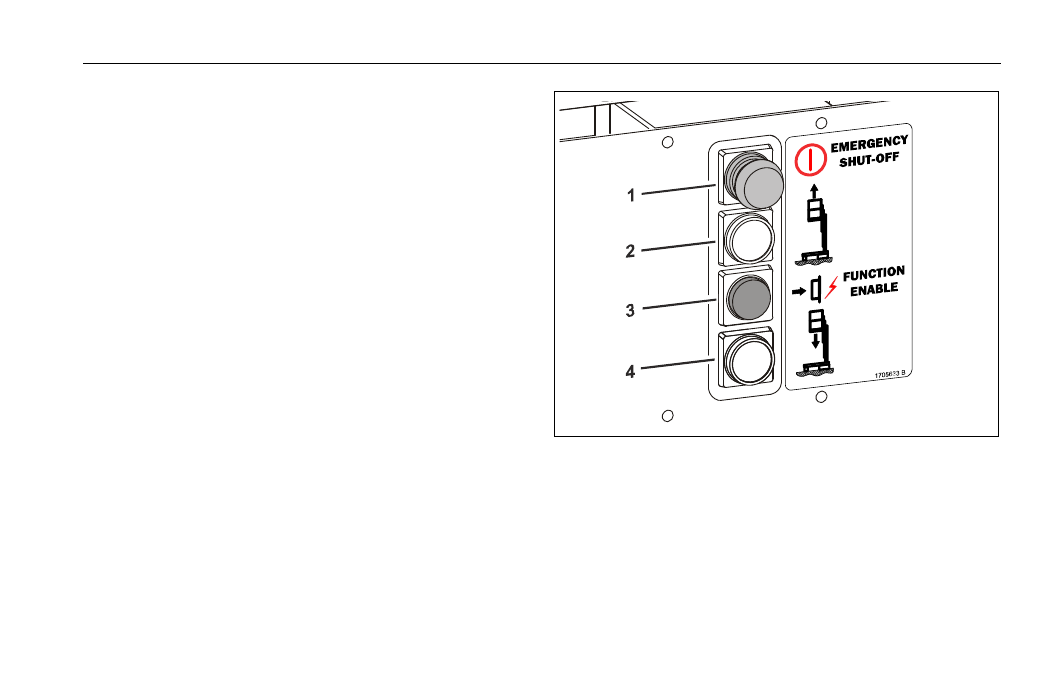

Figure 3-3. Platform Control Station.
1. Emergency Stop Switch -
(RED)
2. Platform UP - (WHITE)
3. Function Enable - (GREEN)
4. Platform DOWN - (WHITE)
