SECTION 5 - HYDRAULICS
3120772 – JLG Lift – 5-23
5.8 BRAKE/STEER VALVE HYDRAULIC
FILTER REPLACEMENT
The Brake /Steer Valve is located on the turntable, under
the hydraulic tank. The hydraulic oil filter cartridge is in
this valve and is recommended to be replaced every 6
months or sooner if the hydraulic controls become slow.
To replace, remove the 1-3/8 hex plug w/o-ring. The filter
can now be pulled out. Only the oil in the filter will be
present. Insert the filter cartridge into valve to bottom.
Adjust the slotted head screw to be level with outside sur-
face of the valve, and replace the hex plug.
Table 5-4. Pressure Settings - S/N 0300063313 to
Present
Circuit PSI Bar
Main Control Valve
Upper Lift Down Relief 1500 103
Lower Lift Down Relief 1700 117
Telescope Relief (A/AJ) 2150 148
Telescope Relief (AJP) 3000 207
Platform Level Up Relief 3000 207
Platform Level Down Relief 1200 83
Swing Relief 1500 103
Steer/Brake Valve
Steer Relief 2300 159
Main Relief (A/AJ) 2500 172
Main Relief (AJP) 3200 221
Jib Valve
Jib Relief (Lift Up and Down) 1500 103
Jib Swing Relief 3000 207

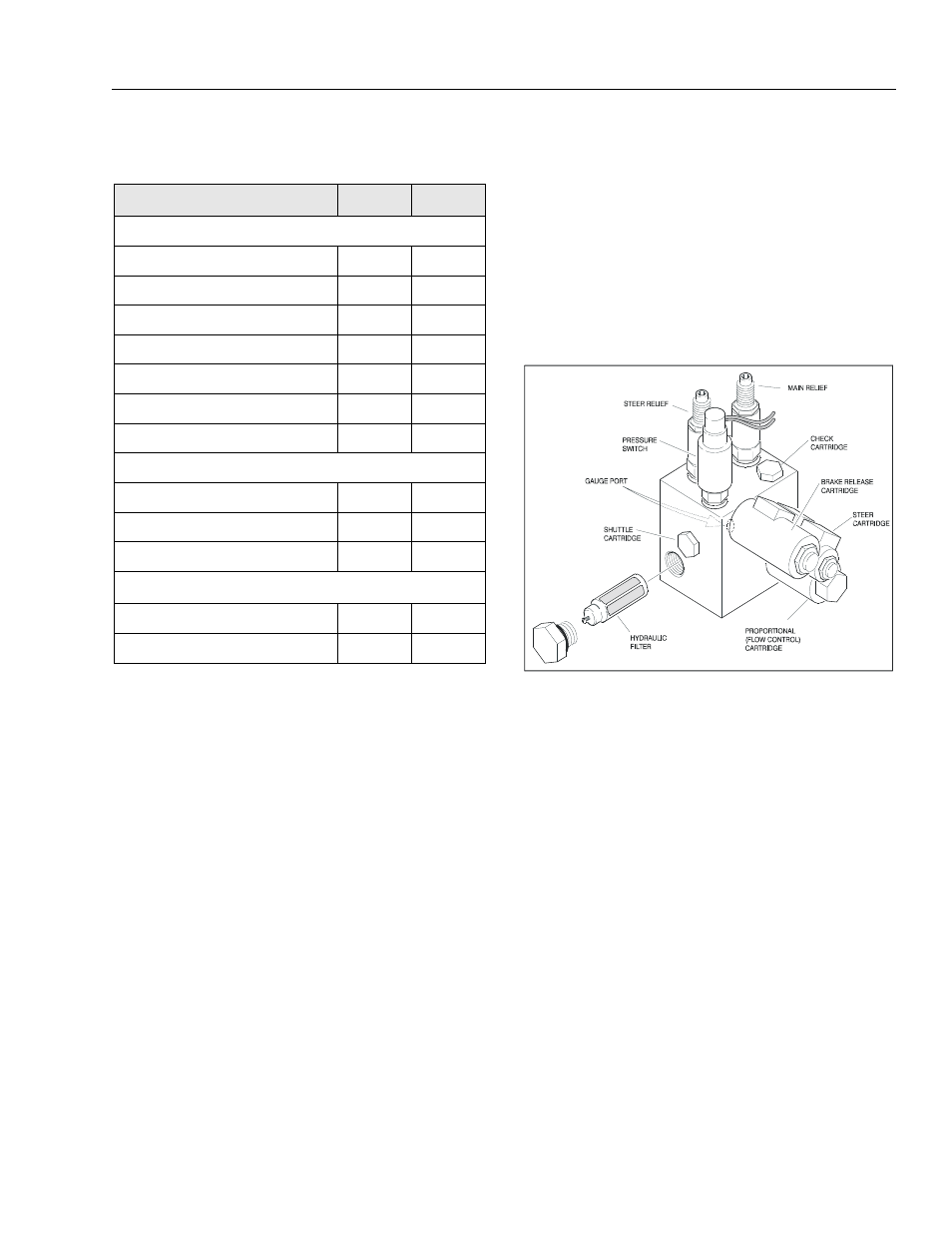

Figure 5-25. Brake/Steer Valve Components
