SECTION 3 - MACHINE CONTROLS AND INDICATORS
3-18 – JLG Lift – 3121678
NOTE: Refer to Fuel Reserve/Shut-Off System in Section 4 for more
detailed information concerning the Low Fuel Indicator.
8. Fuel Level Indicator
Indicates the level of fuel in the fuel tank.
9. Creep Speed Indicator
When the Function Speed Control is turned to
the creep position, the indicator acts as a
reminder that all functions are set to the slow-
est speed.
10. System Distress Indicator
The light indicates that the JLG Control System
has detected an abnormal condition and a
Diagnostic Trouble Code has been set in the
system memory. Refer to the Service Manual for instructions
concerning the trouble codes and trouble code retrieval.
11. Cable Service Indicator (If Equipped)
When illuminated, the light indicates the
boom cables are loose or broken and must be
repaired or adjusted immediately.
IF THE CABLE SERVICE INDICATOR IS ILLUMINATED, RETURN THE PLATFORM TO THE
STOWED POSITION, SHUT DOWN THE MACHINE, AND HAVE THE BOOM CABLES
INSPECTED.

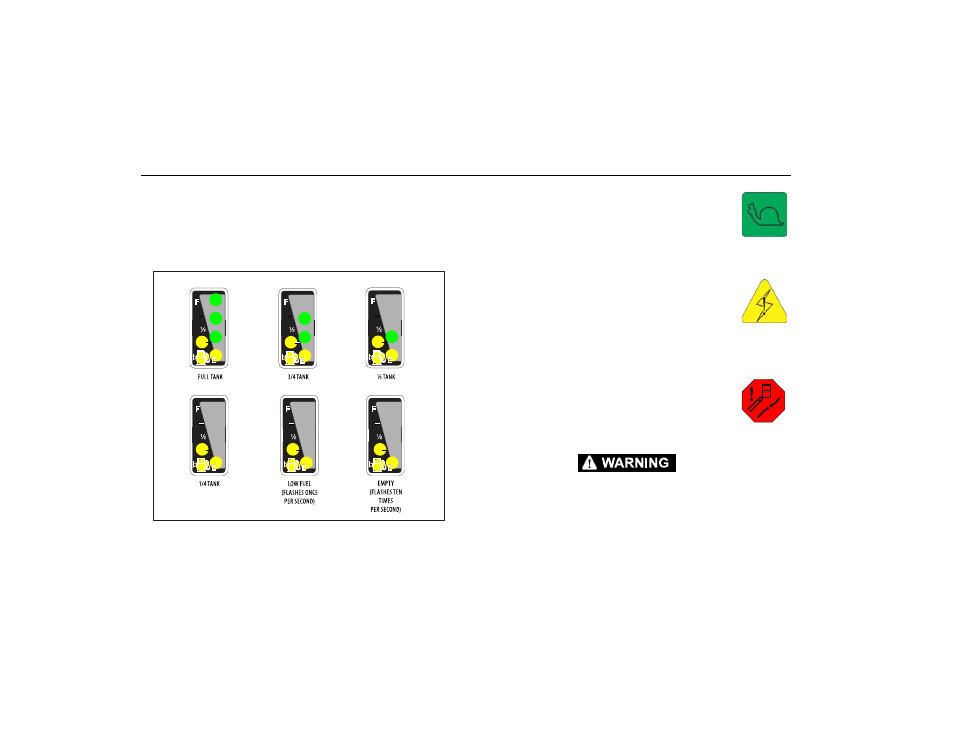

Figure 3-4. Fuel Level Indicator
